ENGLISH
5

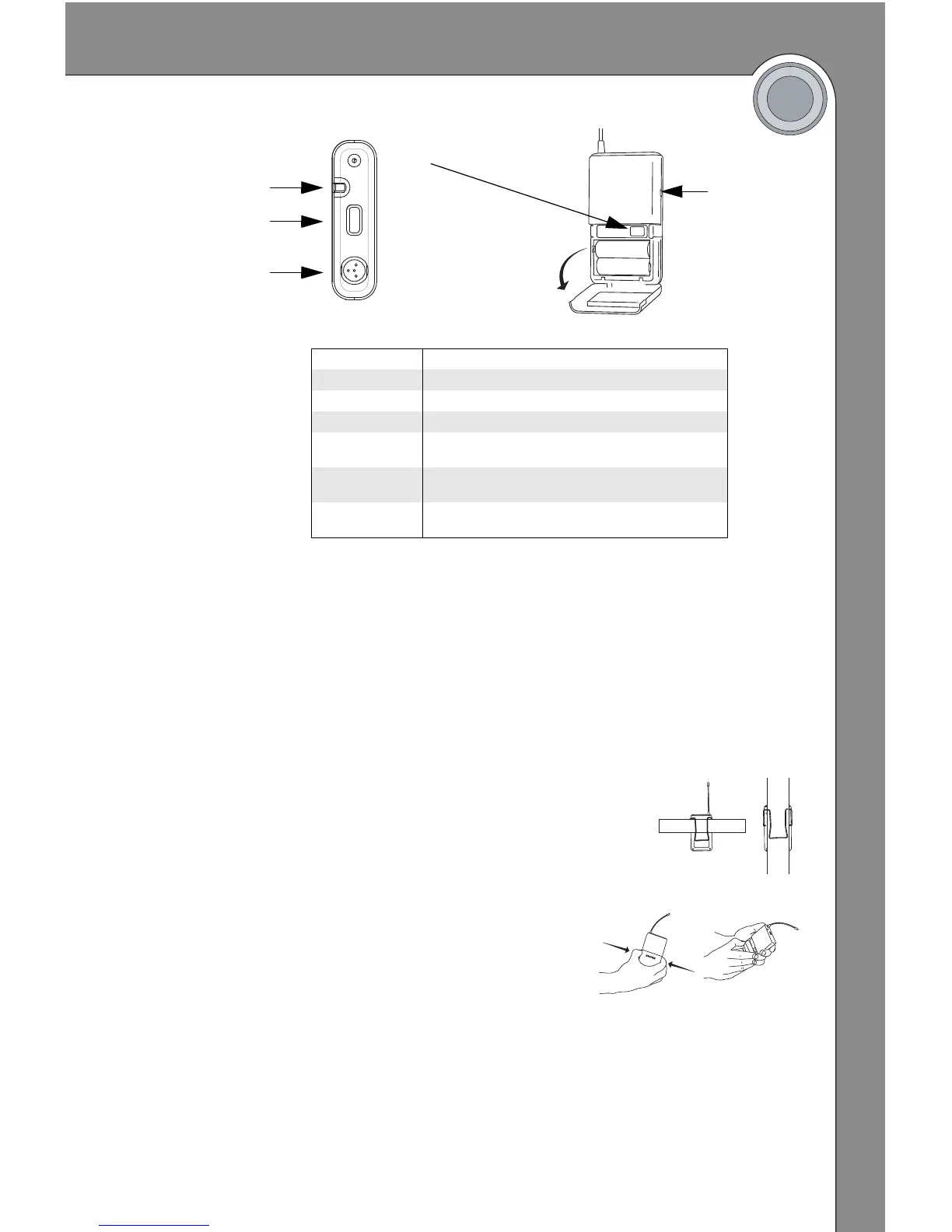

PGX1 Bodypack Transmitter
Power / Infrared (IR) / Mute indicator
On-off / mute switch
Press and hold to turn on or off. Press and release to mute or unmute.
4-Pin Microphone Input Jack
IR port
Receives infrared beam to synchronize frequencies. When using
multiple systems, only one transmitter IR port should be exposed at
a time.
Gain adjustment switch (see below)
Wearing the Bodypack Transmitter
• Clip the transmitter to a belt
or slide a guitar strap
through the transmitter clip
as shown. If using a
belt, slide the transmitter until the belt
is pressed
against the base of the clip.
Changing Batteries
• Expected life for alkaline batteries is approx-
imately 8 hours.
• When the transmitter light glows red, the bat-
teries should be replaced immediately,
as illustrated.
Adjusting Gain
• Three gain settings are available on the PGX1:
•
mic
: Microphone
•
0
: Guitar
•
-10
: Use only if audio is distorted due to high input level
Green Ready
Flashing green Controls locked (see page 8)
Amber Mute on
Flashing red IR transmission in process
Glowing red Battery power low (transmitter cannot be turned
off until batteries are changed)
Pulsing red on
startup
Batteries dead (transmitter cannot be turned on
until batteries are changed)
Pulsing red after
synchronization
Transmitter and receiver incompatible; contact
your Shure reseller
