1.
2.

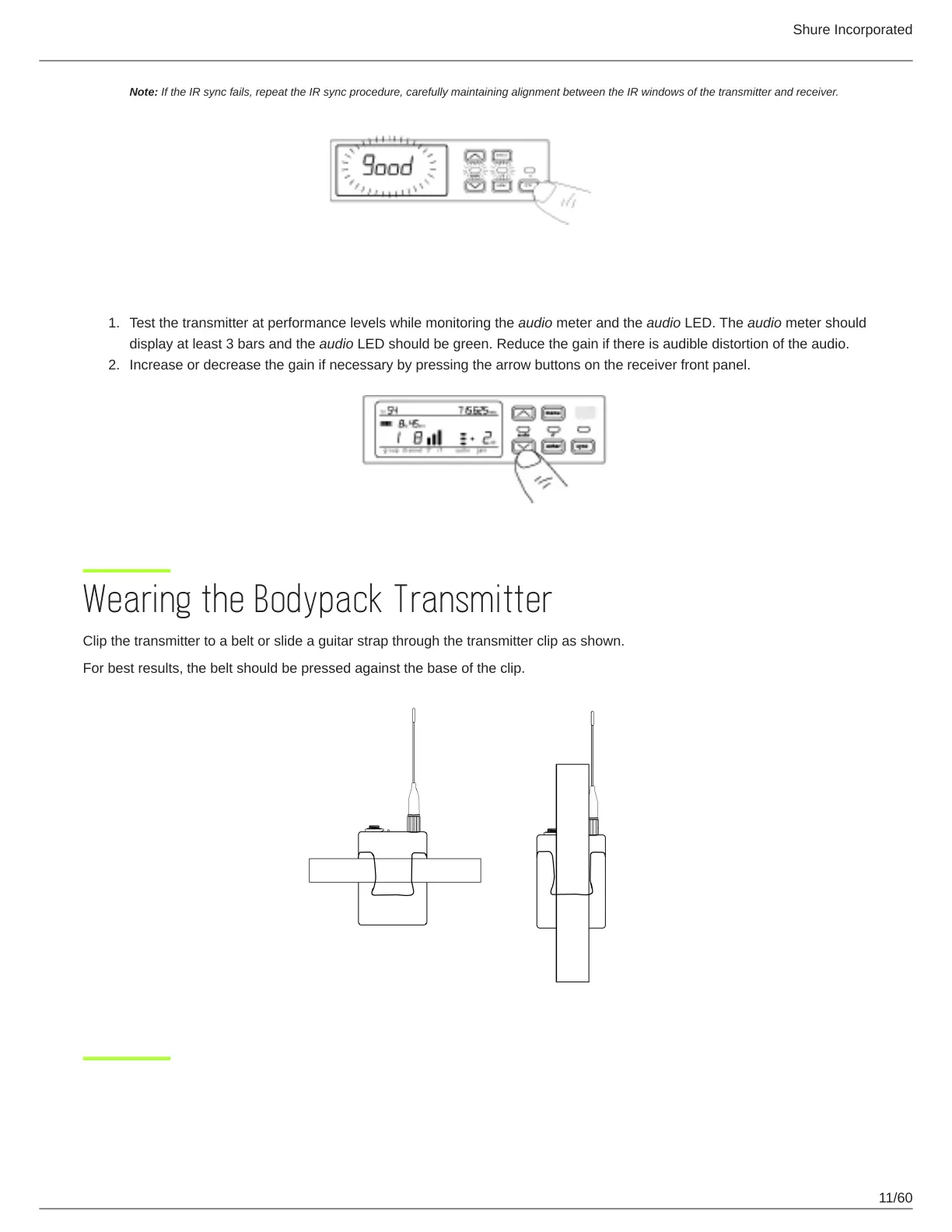

Note: If the IR sync fails, repeat the IR sync procedure, carefully maintaining alignment between the IR windows of the transmitter and receiver.
Step 5: Sound Check and Gain Adjustment
Test the transmitter at performance levels while monitoring the audio meter and the audio LED. The audio meter should
display at least 3 bars and the audio LED should be green. Reduce the gain if there is audible distortion of the audio.
Increase or decrease the gain if necessary by pressing the arrow buttons on the receiver front panel.
Wearing the Bodypack Transmitter
Clip the transmitter to a belt or slide a guitar strap through the transmitter clip as shown.
For best results, the belt should be pressed against the base of the clip.

Shure QLXD2 Specifications

General

RF power	1.1 mW
Form factor	Handheld transmitter
Antenna type	Built-in
Display type	LCD
Compatibility	Shure QLXD4 Digital Wireless Receiver
Product color	Black
Average latency	2.9 ms
Built-in display	Yes
Housing material	Metal
Security algorithms	256-bit AES
Maximum outdoor range	100 m
Operating frequency type	Ultra High Frequency (UHF)
Radio Frequency (RF) range	606 - 670 MHz
Operating temperature (T-T)	18 - 50 °C
Microphone frequency response	30 - 20000 Hz
Total Harmonic Distortion (THD)	0.1 %

Weight and Dimensions

Width	51 mm
Height	256 mm
Weight	347 g
