120 dB dynamic range
Digital predictive switching diversity
64 MHz tuning bandwidth (region dependent)
More than 60 available channels per frequency band (region dependent)
Up to 17 compatible systems per 6MHz TV band; 22 systems per 8 MHz band
Easy pairing of transmitters and receivers over IR scan and sync
Automatic channel scan
Ethernet networking for multiple receiver systems
Network channel scanning configures open frequencies for networked receivers
Compatible with Shure Wireless Workbench 6 control software
Remote control from a mobile device or tablet via ShurePlus Channels app
AES-256 encryption for secure wireless transmission
Elegant and easy-to-use interface with high-contrast LCD menu
Compatible with external control systems such as AMX or Crestron
Professional-grade all-metal construction
Transmitters use 2 AA batteries or Shure SB900 rechargeable battery

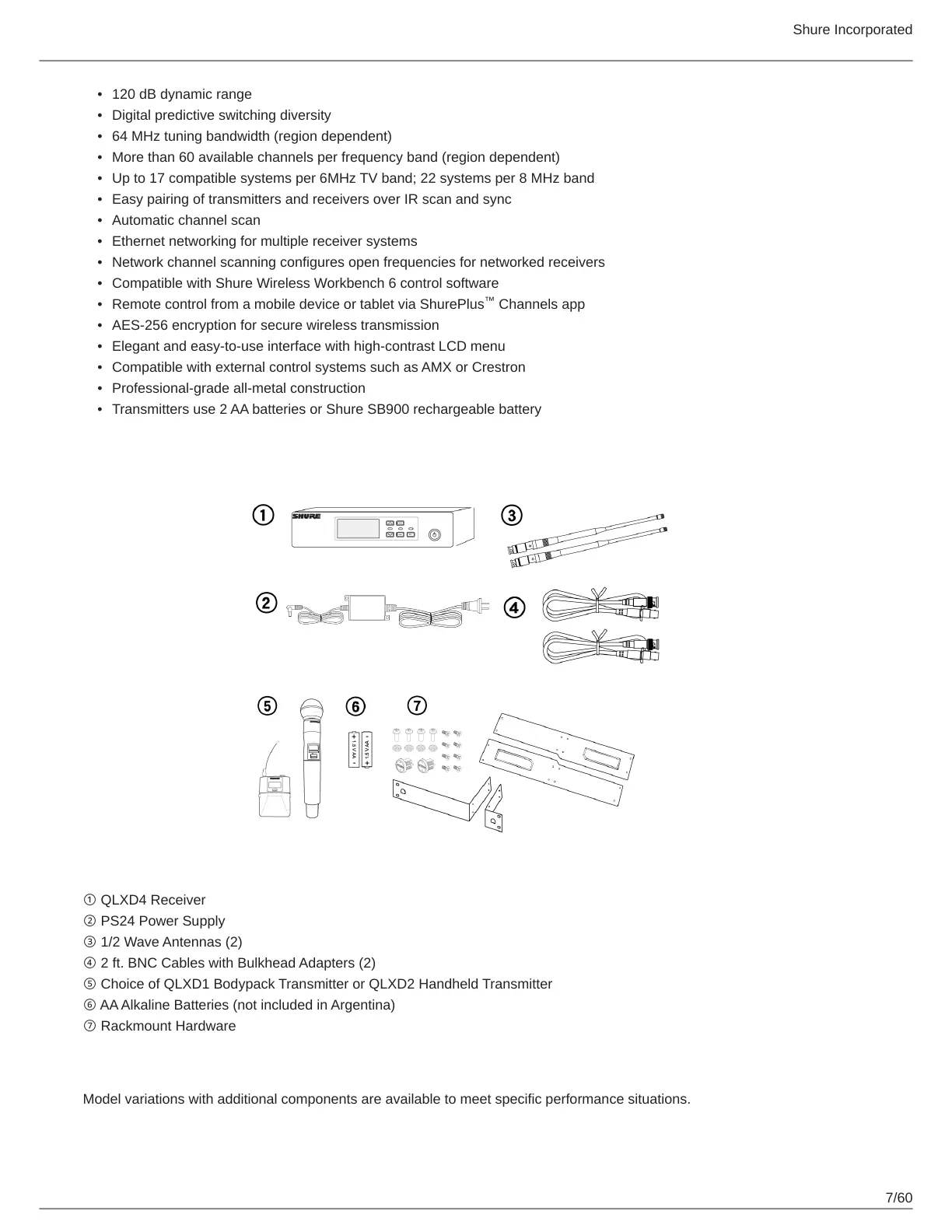

System Components
① QLXD4 Receiver
② PS24 Power Supply
③ 1/2 Wave Antennas (2)
④ 2 ft. BNC Cables with Bulkhead Adapters (2)
⑤ Choice of QLXD1 Bodypack Transmitter or QLXD2 Handheld Transmitter
⑥ AA Alkaline Batteries (not included in Argentina)
⑦ Rackmount Hardware
Model Variations
Model variations with additional components are available to meet specific performance situations.
™

Shure QLXD2 Specifications

General

RF power	1.1 mW
Form factor	Handheld transmitter
Antenna type	Built-in
Display type	LCD
Compatibility	Shure QLXD4 Digital Wireless Receiver
Product color	Black
Average latency	2.9 ms
Built-in display	Yes
Housing material	Metal
Security algorithms	256-bit AES
Maximum outdoor range	100 m
Operating frequency type	Ultra High Frequency (UHF)
Radio Frequency (RF) range	606 - 670 MHz
Operating temperature (T-T)	18 - 50 °C
Microphone frequency response	30 - 20000 Hz
Total Harmonic Distortion (THD)	0.1 %

Weight and Dimensions

Width	51 mm
Height	256 mm
Weight	347 g
