Shure SLX-D Quick Start Guide

Shure Incorporated
7/15

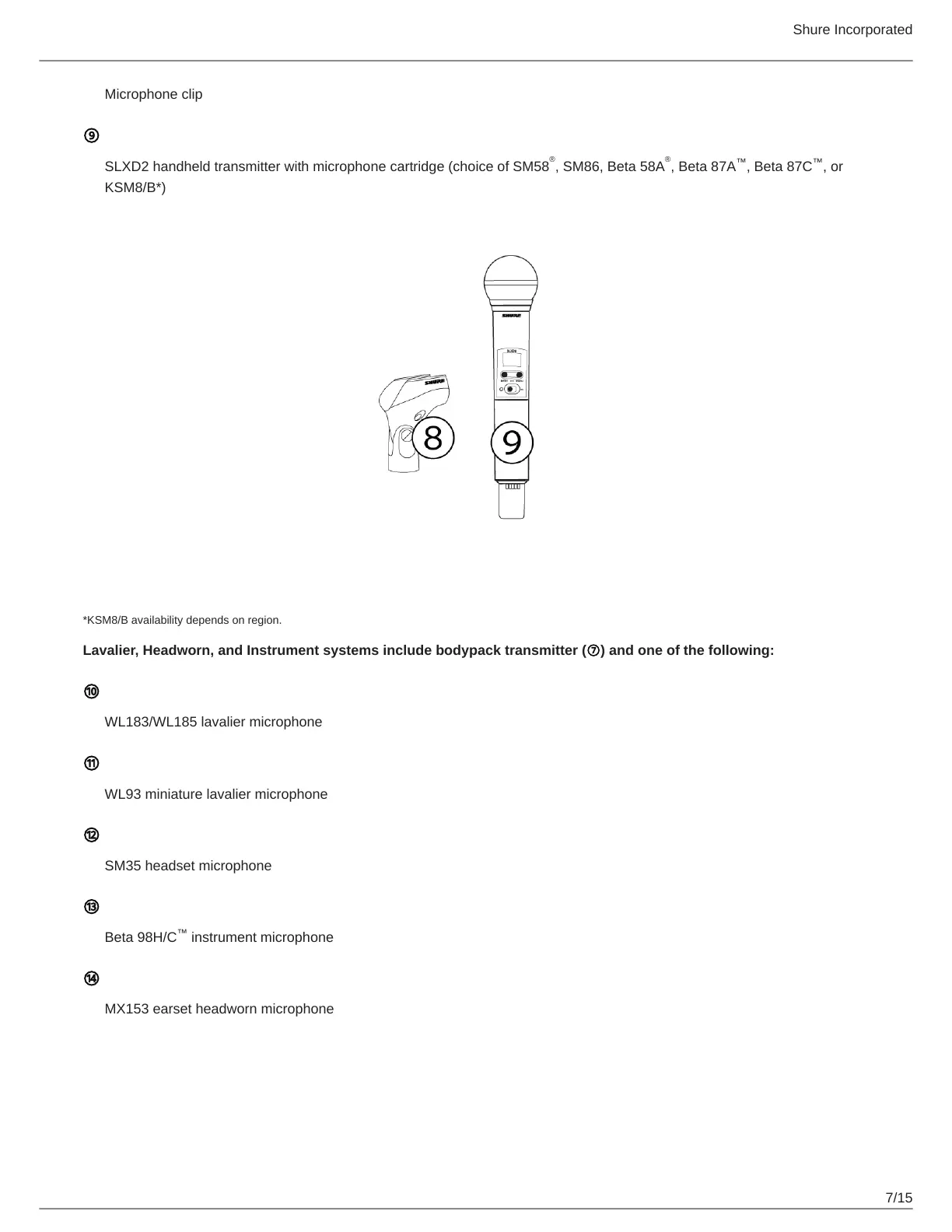

Microphone clip
⑨
SLXD2 handheld transmitter with microphone cartridge (choice of SM58 , SM86, Beta 58A , Beta 87A , Beta 87C , or
KSM8/B*)
*KSM8/B availability depends on region.
Lavalier, Headworn, and Instrument systems include bodypack transmitter (⑦) and one of the following:
⑩
WL183/WL185 lavalier microphone
⑪
WL93 miniature lavalier microphone
⑫
SM35 headset microphone
⑬
Beta 98H/C instrument microphone
⑭
MX153 earset headworn microphone
® ®
™ ™
™

Shure SLX-D Specifications

General

Audio Frequency Response	20 Hz to 20 kHz
Encryption	256-bit AES
Battery Life	Up to 8 hours
System Type	Digital Wireless
Transmitter Type	Handheld, Bodypack
Total Harmonic Distortion	<0.02%
Latency	3.2 ms
Operating Range	Up to 100 meters (328 feet)
Dynamic Range	> 120 dB
Number of Channels	Up to 32 per band
Modulation	Digital
RF Sensitivity	-97 dBm for 12 dB SINAD
