Shure SLX-D Quick Start Guide

Shure Incorporated
8/15
1.
2.

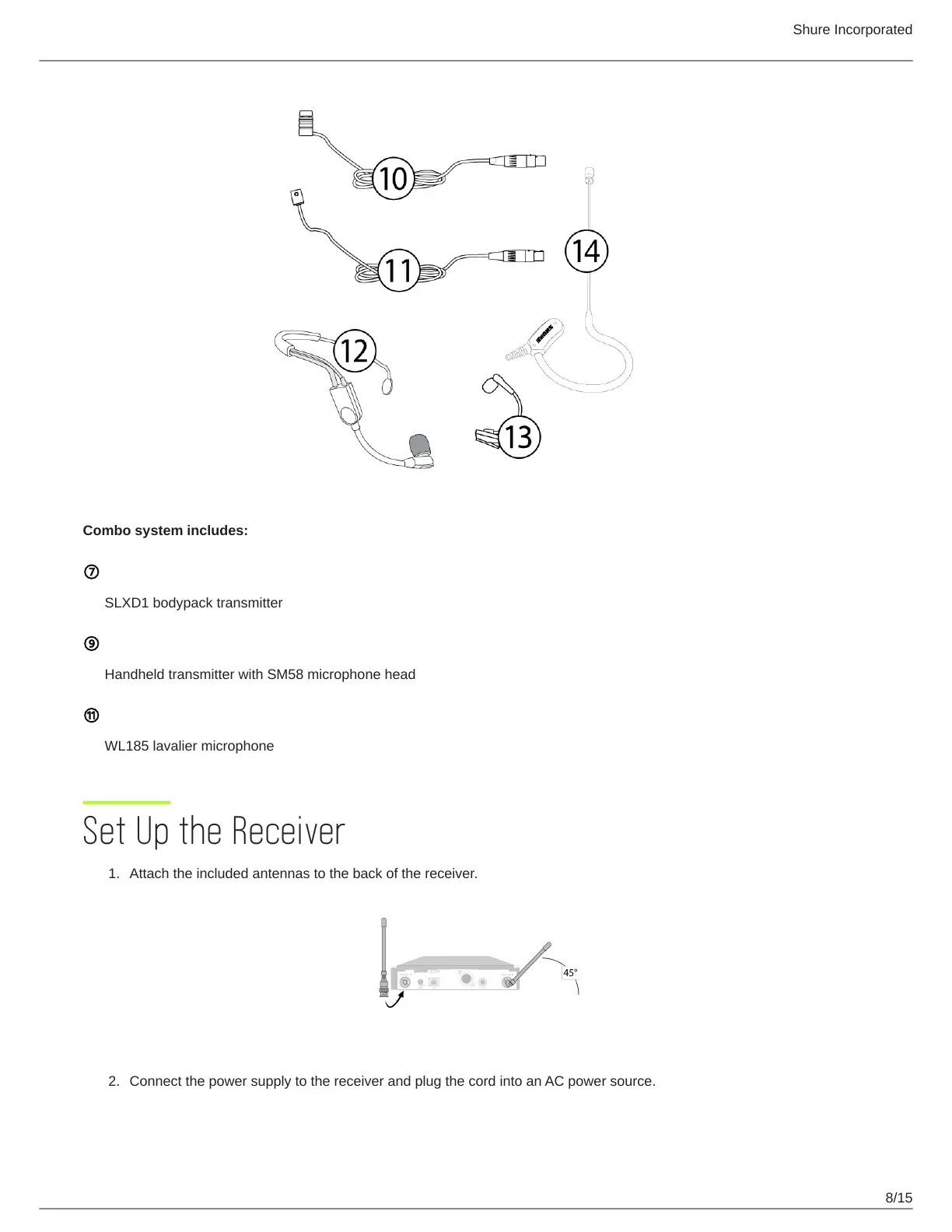

Combo system includes:
⑦
SLXD1 bodypack transmitter
⑨
Handheld transmitter with SM58 microphone head
⑪
WL185 lavalier microphone
Set Up the Receiver
Attach the included antennas to the back of the receiver.
Connect the power supply to the receiver and plug the cord into an AC power source.

Shure SLX-D Specifications

General

Audio Frequency Response	20 Hz to 20 kHz
Encryption	256-bit AES
Battery Life	Up to 8 hours
System Type	Digital Wireless
Transmitter Type	Handheld, Bodypack
Total Harmonic Distortion	<0.02%
Latency	3.2 ms
Operating Range	Up to 100 meters (328 feet)
Dynamic Range	> 120 dB
Number of Channels	Up to 32 per band
Modulation	Digital
RF Sensitivity	-97 dBm for 12 dB SINAD
