Shuttle MVP - Attaching the Kickplate Board

Page 13
ATTACHING THE KICKPLATE BOARD
STEP 8
ITEMS REQUIRED
Kickplate Board

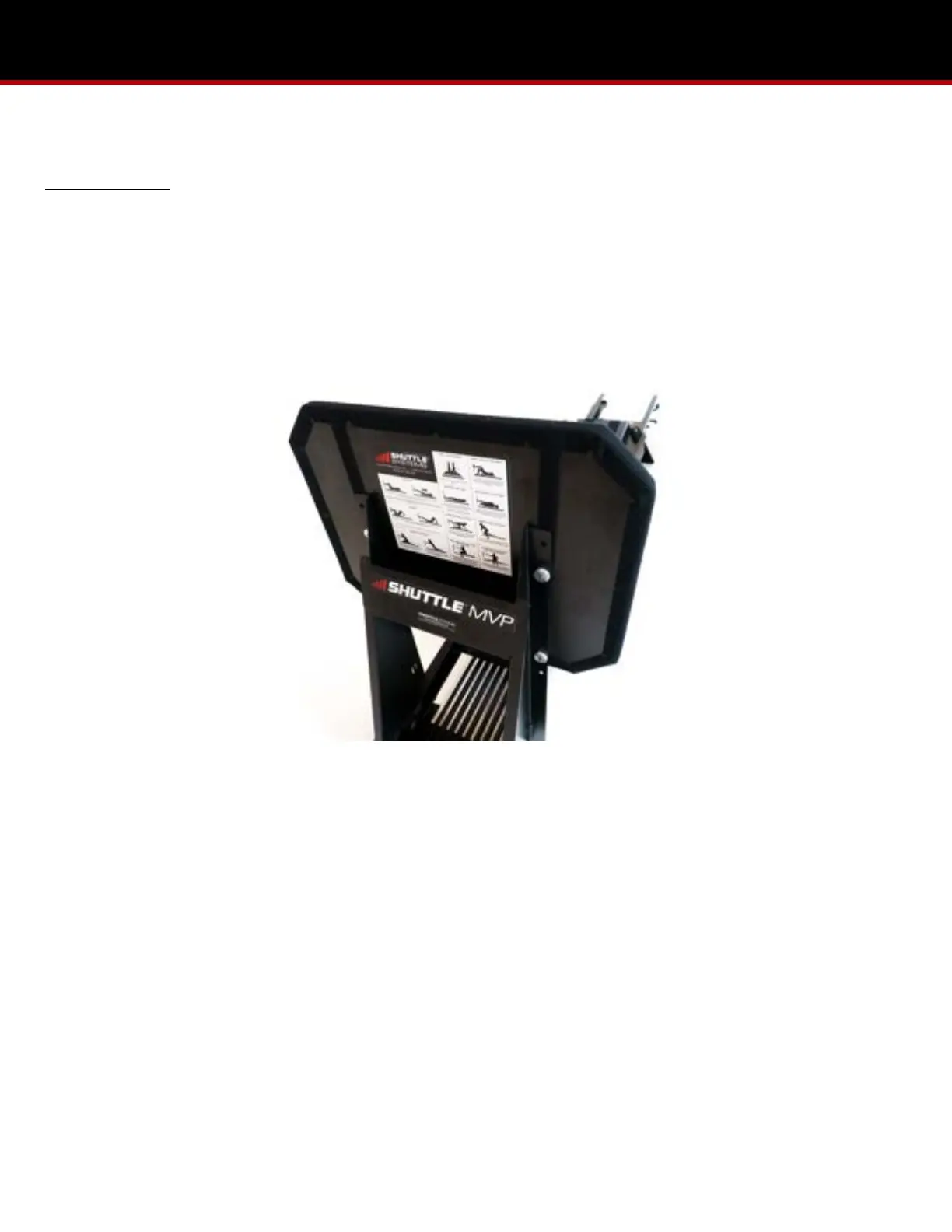

1. The kickplate board is adjustable to three different heights. Once the desired position is determined, insert the four
protruding bolts at the back of the board into the desired corresponding holes of the kickplate structure. Secure the
board by tightening the knurled knobs to the exposed bolts. (Pic 8.1)
8.1
ASSEMBLY OF THE MVP (STEP 8)
