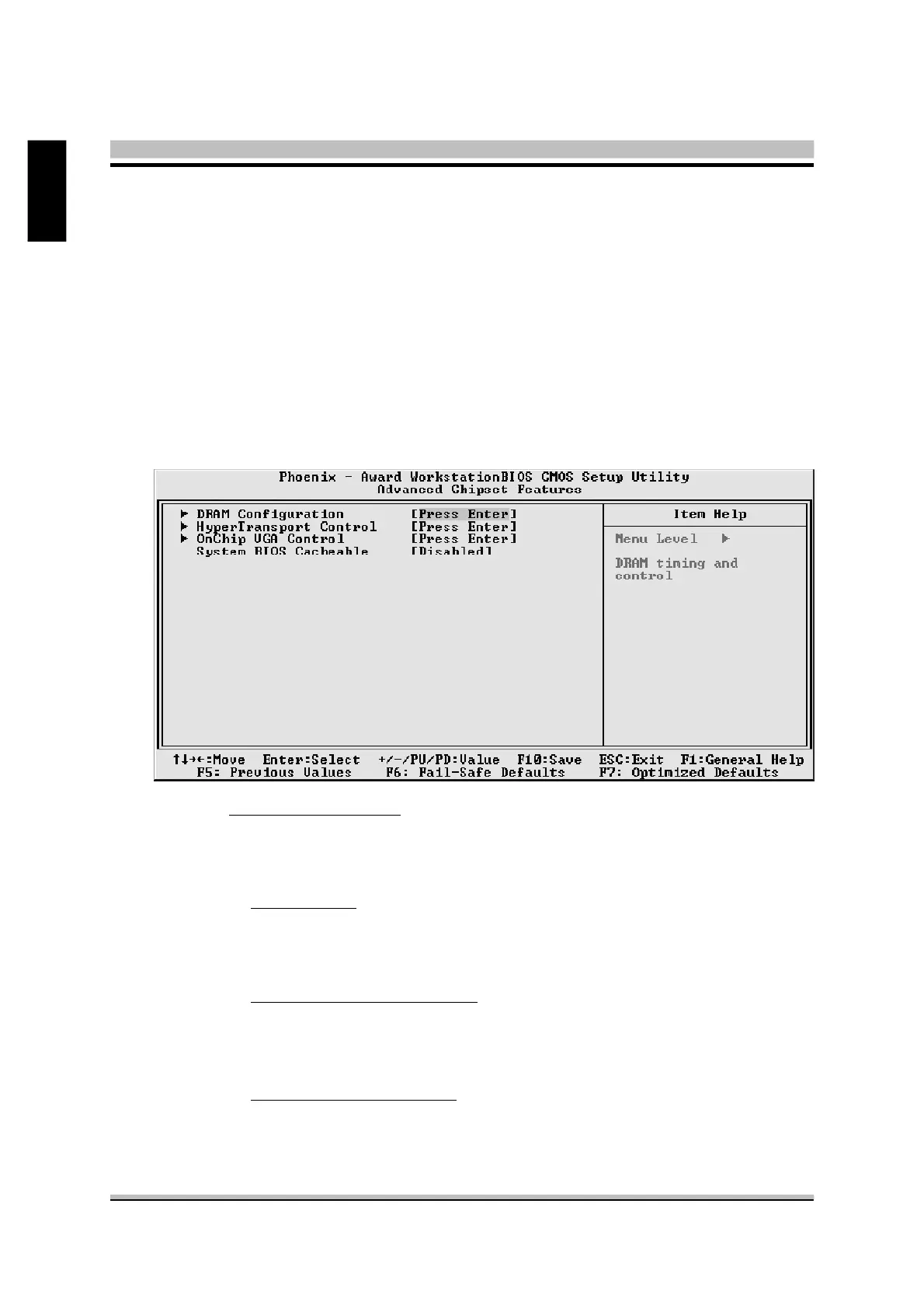

@ Advanced Chipset Features
This section allows you to configure the system based on the specific features of the
installed chipset. This chipset manages bus speeds and access to system memory
resources, such as DRAM and the external cache. It also coordinates communica-
tions between the conventional ISA bus and the PCI bus. It states that these items
should never need to be altered.
The default settings have been chosen because they provide the best operating con-
ditions for your system. If you discovered that data was being lost while using your
system, you might consider making any changes.
DRAM Configuration
Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.
Timing Mode
Auto: no user limit; MaxMemClk: limit by Memory Clock value.
Ø The Choice: Auto or MaxMemClk.
Memory Clock value or Limi
Setting platform Memclock.
Ø The Choice: DDR 400, DDR533, DDR667 or DDR800.
Memory Hole Remapping
This item allows you to enable/disable the Memory Hole Remapping.
Ø The Choice: Enabled or Disabled.
