3 Cleaning of PM2.5 cyclone
z Make sure the LD-5R power is OFF before disconnecting the PM2.5 cyclone.

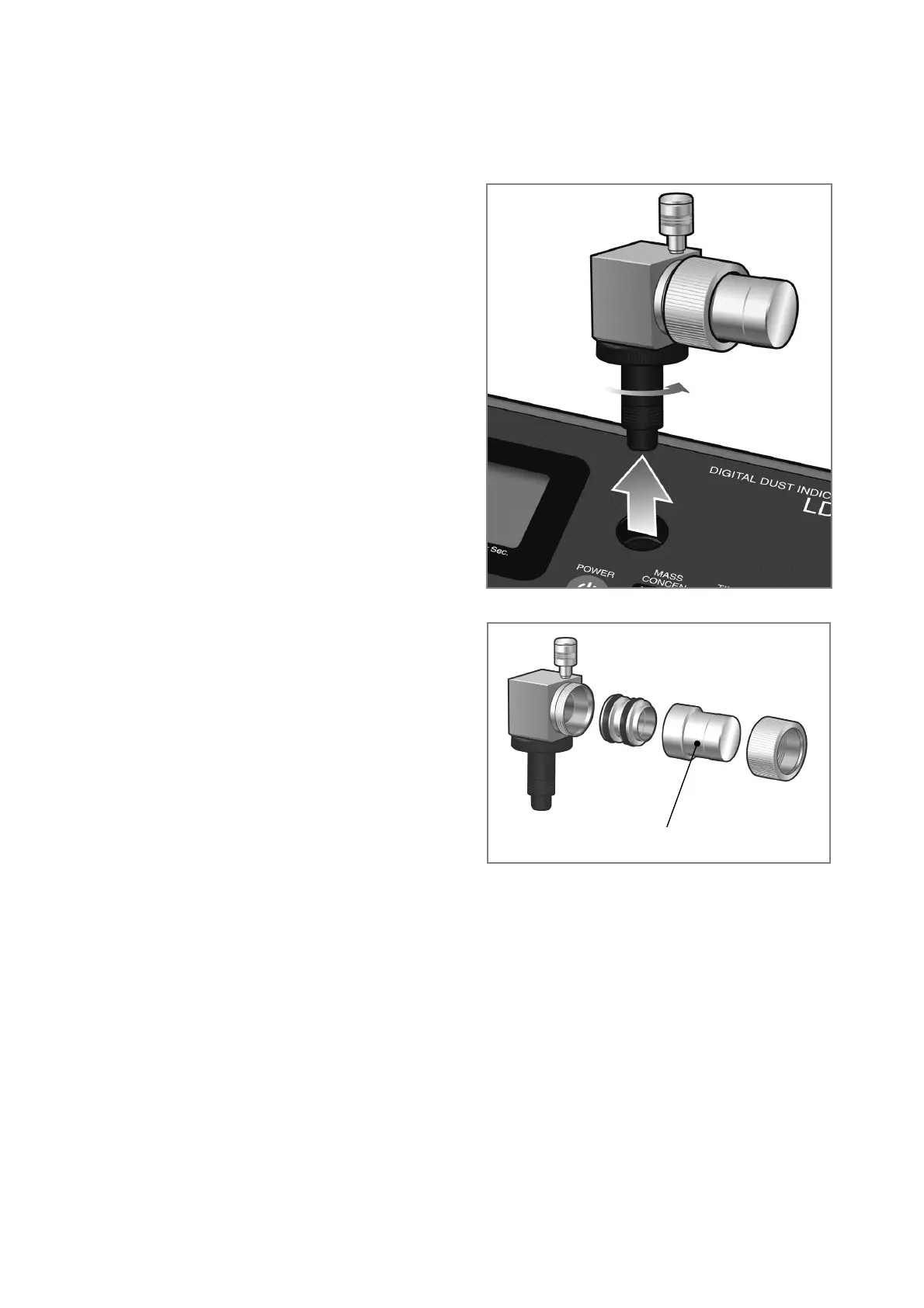

1) Remove the PM2.5 cyclone by turning
as shown in a figure.
2) Disassemble the PM2.5 cyclone as
shown in the figure, wipe the parts with
a soft cloth or something similar or
lightly blow air to remove dust that has
accumulated in the dust trap.
z Do not perform ultrasonic cleaning.
The dust trap is anodized. If ultrasonic cleaning is performed on the dust trap,
its surface color may change and other effects may occur if the ultrasonic
frequency is high or if the cleaning solution is alkaline. To clean the dust trap,
wipe it with a soft cloth or something similar or lightly blow air to remove dust
that has accumulated in the dust trap.
Dust trap
