SICK C4000 Advanced Ex User Manual

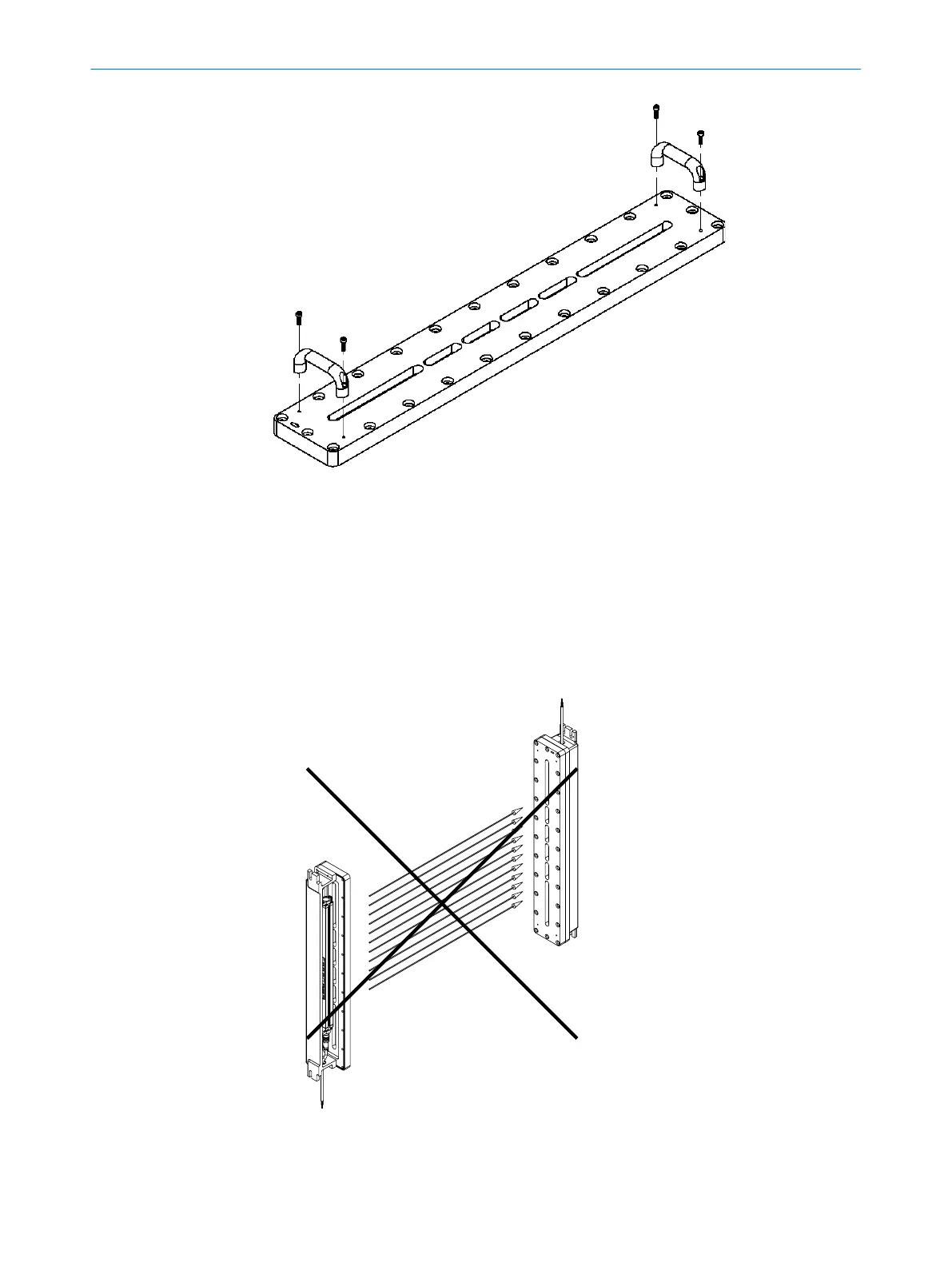

Figure 3: Mounting the two handles
3.3.4 Mounting the safety light curtain
General notes
►
F
ind a place to mount the safety light curtain that is stable enough to hold its
weight.
►
Mount the sender and receiver on a level surface.
►
Mount the sender and receiver at the same height.
►
The end with the connecting cable must point in the same direction for both
devices.
Figure 4: The sender and receiver are mounted incorrectly
MOUNTING 3
8017027/1DVD/2023-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Advanced Ex
13
Subject to change without notice

SICK C4000 Advanced Ex Specifications

General

Enclosure rating	IP65, IP67
Wavelength	950 nm
Operating Voltage	24 V DC
Type	Safety Light Curtain
Resolution	14 mm, 30 mm
Scanning range	0 m ... 7 m
Supply voltage	24 V DC
Ambient operating temperature	-10 °C ... +55 °C (depending on the type)
Light Source	LED
Storage Temperature	-25 °C ... +70 °C
