SICK C4000 Advanced Ex User Manual

Alignment bracket
95,3
56,2 80

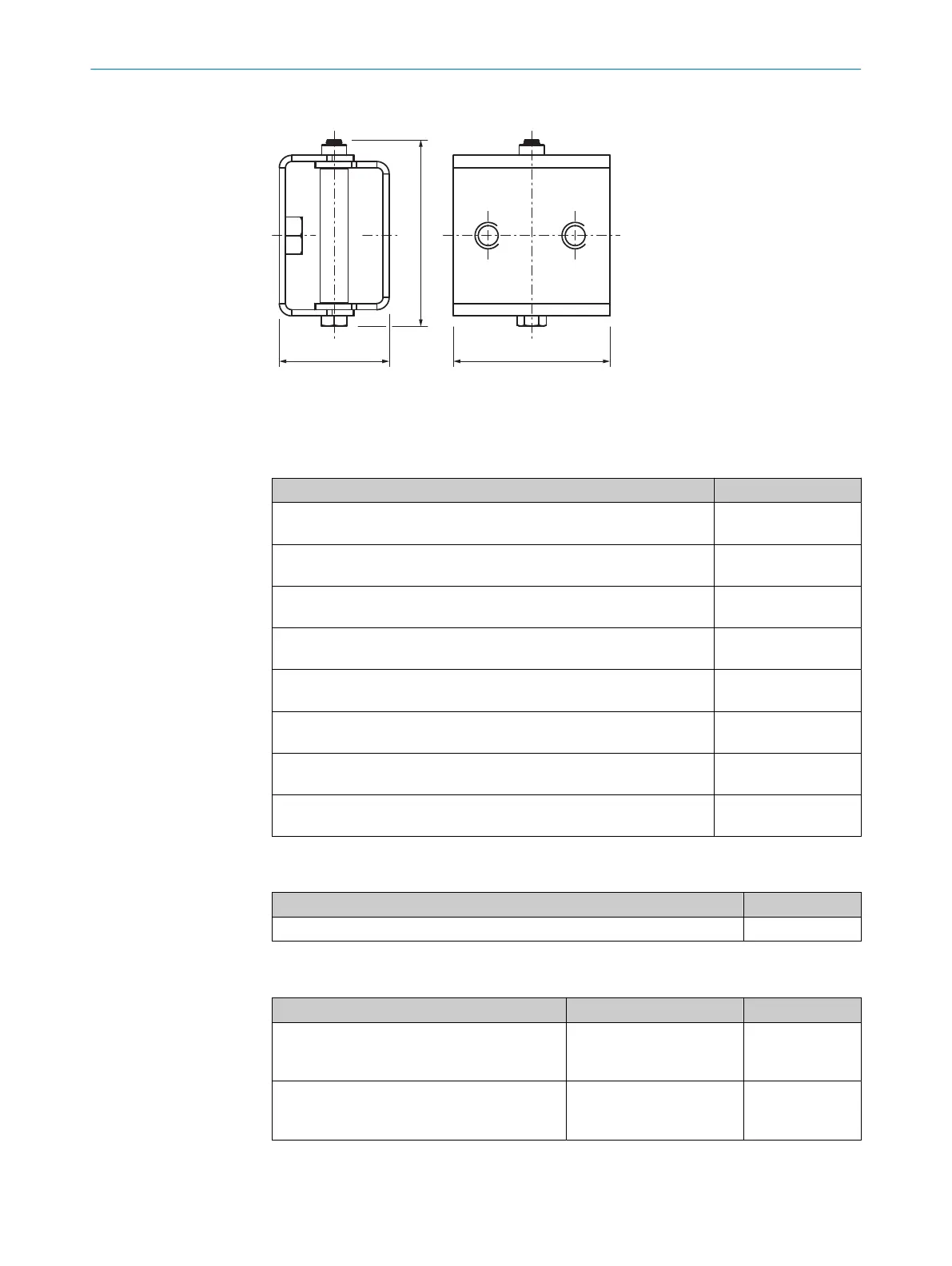

Figure 22: Dimensional drawing, alignment bracket (2072525)
9.2 Connectivity
Table 5: Ordering information for connecting cable
1)
M26, 12-pin (0.75mm
2
)
Part Part number
DOL-0612G2M5075KM0, female connector, straight with 2.5m cable,
f
lying leads
2022544
DOL-0612G05M075KM0, female connector, straight with 5m cable,
f
lying leads
2022545
DOL-0612G7M5075KM0 female connector, straight with 7.5m cable,
flying leads
2022546
DOL-0612G10M075KM0, female connector, straight with 10m cable,
flying leads
2022547
DOL-0612G15M075KM0, female connector, straight, with 15m cable,
f
lying leads
2022548
DOL-0612G20M075KM0 female connector, straight with 20m cable,
flying leads
2022549
DOL-0612G30M075KM0 female connector, straight with 30m cable,
f
lying leads
2022550
DOL-0612G50MD75KM0, female connector, straight, with 50m cable,
flying leads
2033548
1)
Ambient operating temperature: Down to −30°C with fixed installation.
Table 6: Order information for cable (ready to assemble)
Part Part number
Per meter, max. 100m, 12-wire (0.75mm
2
) 6021437
Table 7: Ordering information for power supply
Part Type code Part number
Output 24VDC, 50W (2.1A), voltage supply
NE
C Class 2, SELV, PELV, input 120V AC …
240VAC
PS50WE24V 7028789
Output 24VDC, 95W (3.9A), voltage supply
NEC Class 2, SELV, PELV, input 100V AC …
120V/220V AC … 240VAC
PS95WE24V 7028790
ACCESSORIES 9
8017027/1DVD/2023-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Advanced Ex
31
Subject to change without notice

SICK C4000 Advanced Ex Specifications

General

Enclosure rating	IP65, IP67
Wavelength	950 nm
Operating Voltage	24 V DC
Type	Safety Light Curtain
Resolution	14 mm, 30 mm
Scanning range	0 m ... 7 m
Supply voltage	24 V DC
Ambient operating temperature	-10 °C ... +55 °C (depending on the type)
Light Source	LED
Storage Temperature	-25 °C ... +70 °C
