SICK C4000 Advanced Ex

Mounting the safety light curtain using the alignment brackets
2 x
Part no. 2072525
4 x
4 x
4 x
WS
13 mm
Scope of delivery
Required tools

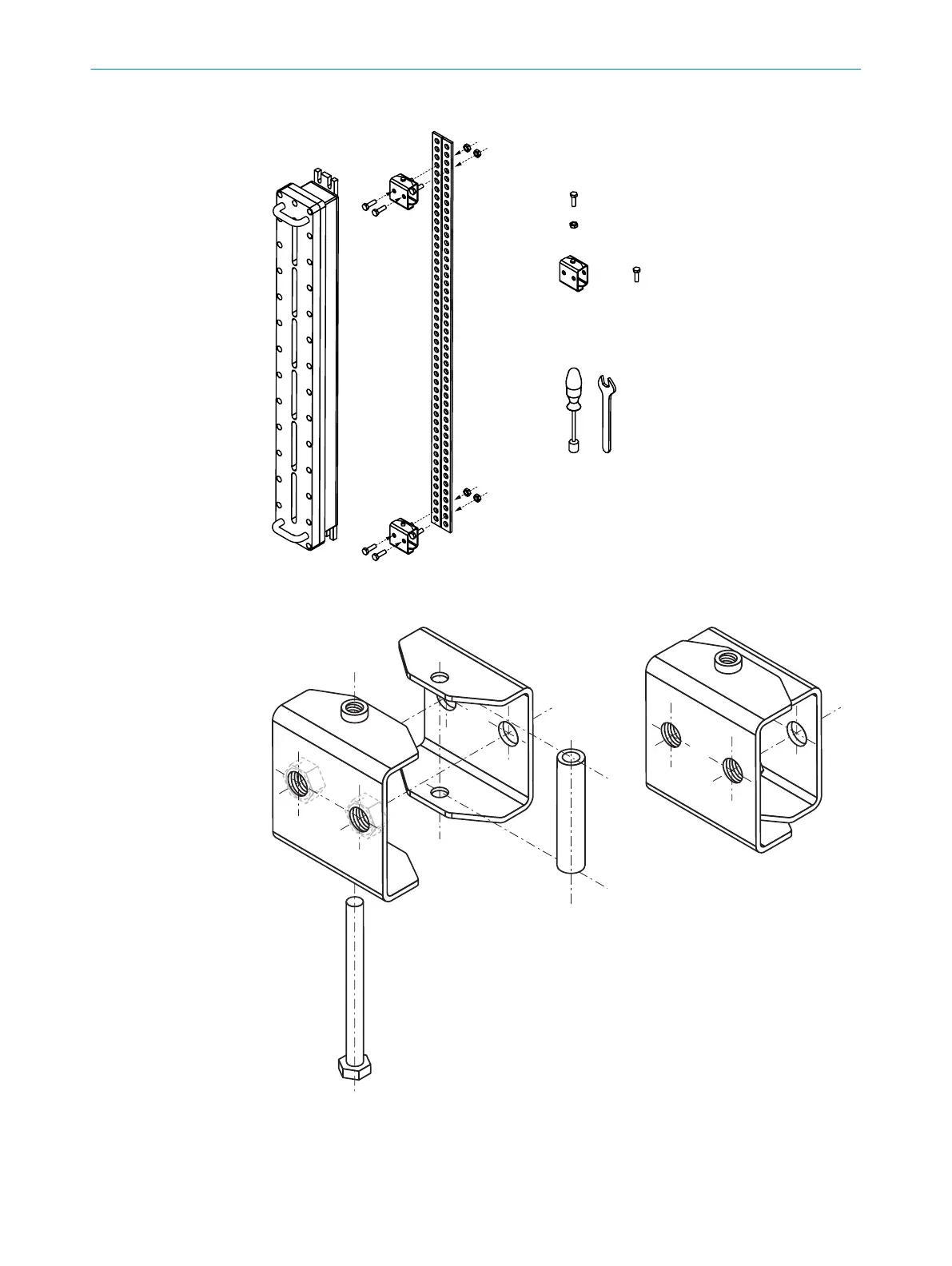

Figure 9: Mounting the safety light curtain using the alignment brackets
Figure 10: Assembling the alignment brackets
