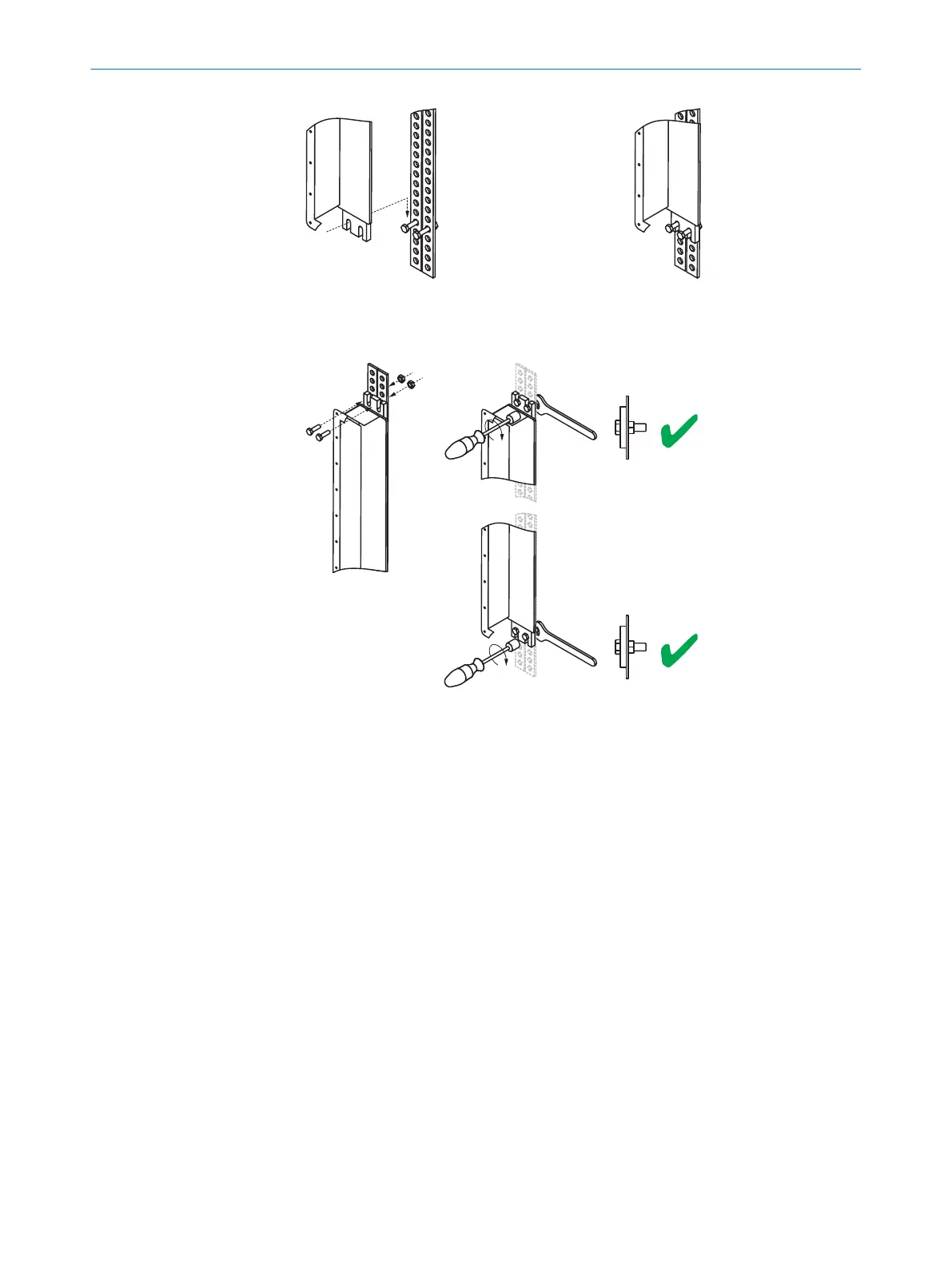

Figure 7: Mounting the safety light curtain without the alignment bracket: Step 2
2. Position the explosion-proof enclosure on the two screws so that the mounting
hole
s are directly over the partly-tightened screws.
Figure 8: Mounting the safety light curtain without the alignment bracket: Steps 3 and 4
3. Fix the upper end of the explosion-proof enclosure to the mounting surface using
t
wo M8 screws.
4. Tighten the two lower M8 screws.
MOUNTING 3
8017027/1DVD/2023-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Advanced Ex
15
Subject to change without notice

SICK C4000 Advanced Ex Specifications

General

Enclosure rating	IP65, IP67
Wavelength	950 nm
Operating Voltage	24 V DC
Type	Safety Light Curtain
Resolution	14 mm, 30 mm
Scanning range	0 m ... 7 m
Supply voltage	24 V DC
Ambient operating temperature	-10 °C ... +55 °C (depending on the type)
Light Source	LED
Storage Temperature	-25 °C ... +70 °C
