SICK C4000 Advanced Ex User Manual

9 Accessories
9.1 Brackets
Part Part number
2 swivel mount brackets, 2 risers, 1 mounting bracket with riser
(
included with delivery)
2074626
2 alignment brackets for the explosion-proof enclosure 2072525
Swivel mount bracket with mounting bracket and risers
3,6
41
14,5
8,5
43,5
59
62
Ø 30,6
75
37,5
15
7
Ø 8,4
30

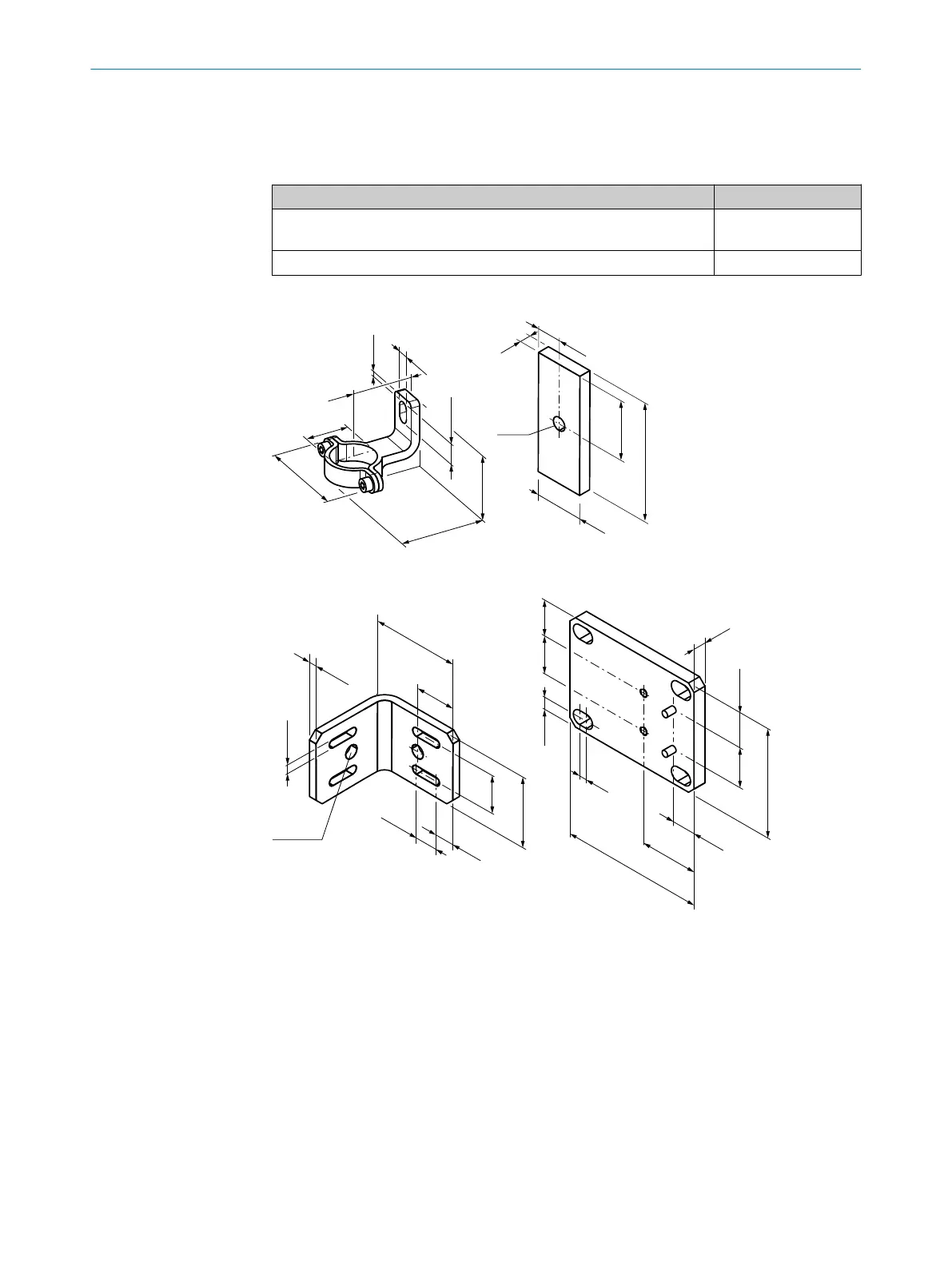

Figure 20: Dimensional drawing, swivel mount bracket with riser (2074626)
8
2225
69
22,5
24
7,5
90,5
15,1
36,1
5
50
±1
44
±1
25
12
14
24
5,3
±0,1
Ø 8,3
±0,1
4,8
Figure 21: Dimensional drawing, mounting bracket with riser (2074626)
9 A
CCESSORIES
30
O P E R A T I N G I N S T R U C T I O N S | C4000 Advanced Ex 8017027/1DVD/2023-04-28 | SICK
Subject to change without notice

SICK C4000 Advanced Ex Specifications

General

Enclosure rating	IP65, IP67
Wavelength	950 nm
Operating Voltage	24 V DC
Type	Safety Light Curtain
Resolution	14 mm, 30 mm
Scanning range	0 m ... 7 m
Supply voltage	24 V DC
Ambient operating temperature	-10 °C ... +55 °C (depending on the type)
Light Source	LED
Storage Temperature	-25 °C ... +70 °C
