Scanning frequencies
0 50 100 150 200 250 300 350 400
(1.97) (3.94) (5.91) (7.87) (9.84) (11.81) (13.78) (15.75)
900
800
700
600
500
400
Resolution 3
d: 1.00 mm (39.5 mil)
Scanning frequency in Hz 1
Reading distance in mm (inch) 2
c: 0.50 mm (19.7 mil)
b: 0.35 mm (13.8 mil)a: 0.20 mm (7.9 mil)
a
b
c
d
1 000

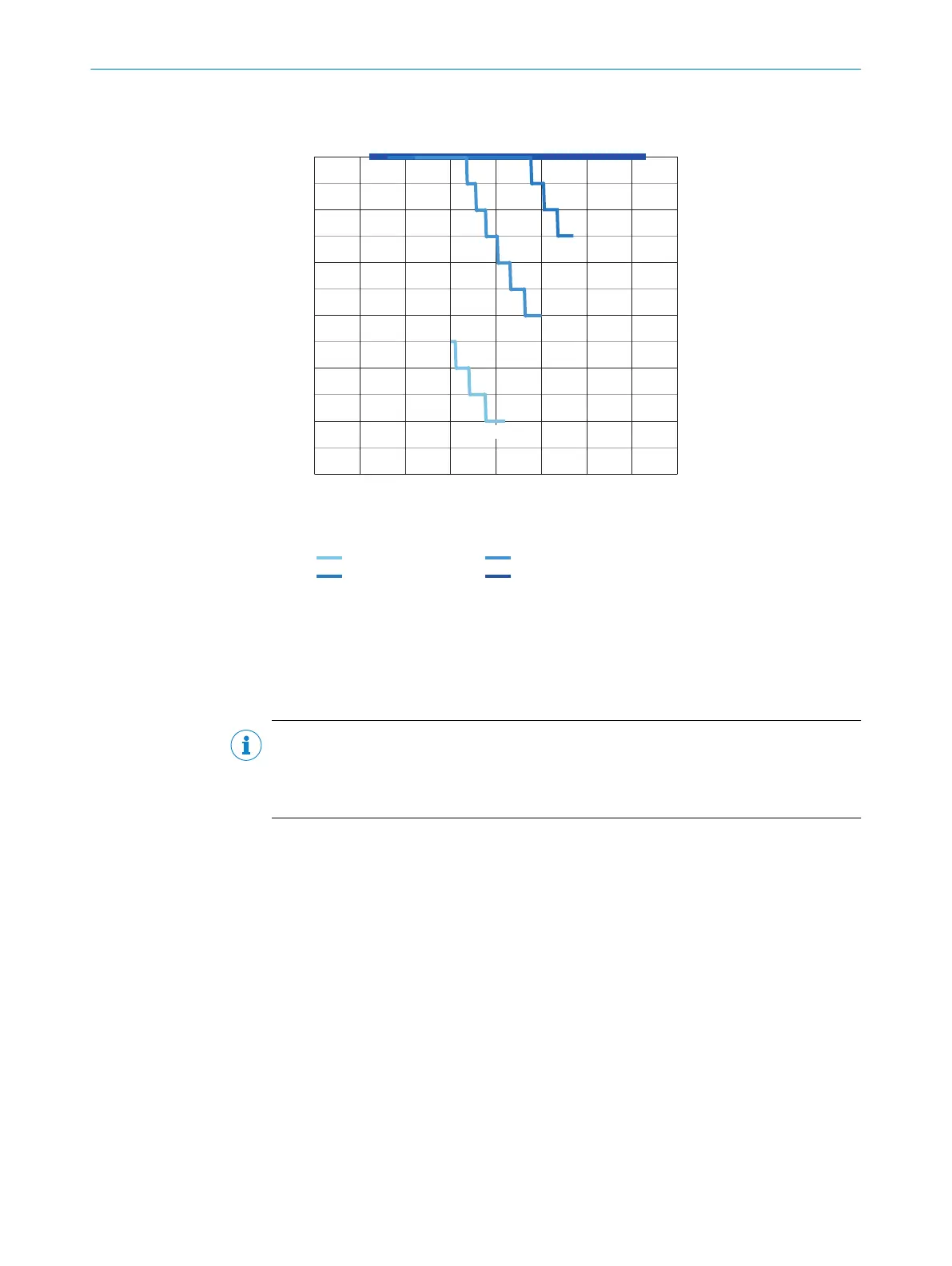

Figure 31: Characteristic curve field for scan frequency for CLV610, mid range, front viewing
window
1
Scanning frequency in Hz
2
Reading distance in mm (inch)
3
Resolution
NOTE
Correction of reading distance for devices with side viewing window:
At all scan frequencies, the values for the reading distance shift towards the
viewing window in each case by 16 mm (reduction of the reading distance).
12 TECHNICAL DATA
66
O P E R A T I N G I N S T R U C T I O N S | CLV61x 8017840/19OF/2021-10-28 | SICK
Subject to change without notice
