SICK CLV615 User Manual

12.7.3 CLV612: Short Range
60
(2.36)
–60
(–2.36)
40
(1.57)
–40
(–1.57)
20
(0.79)
–20
(–0.79)
0
Reading distance in mm (inch) 2
0
Reading field height in mm (inch) 1
Resolution 3
a: 0.10 mm (3.94 mil)
b: 0.15 mm (5.91 mil)
c: 0.20 mm (7.9 mil)
20
(0.79)
40
(1.57)
60
(2.36)
80
(3.15)
100
(3.94)
120
(4.72)
140
(5.51)
a
b
c

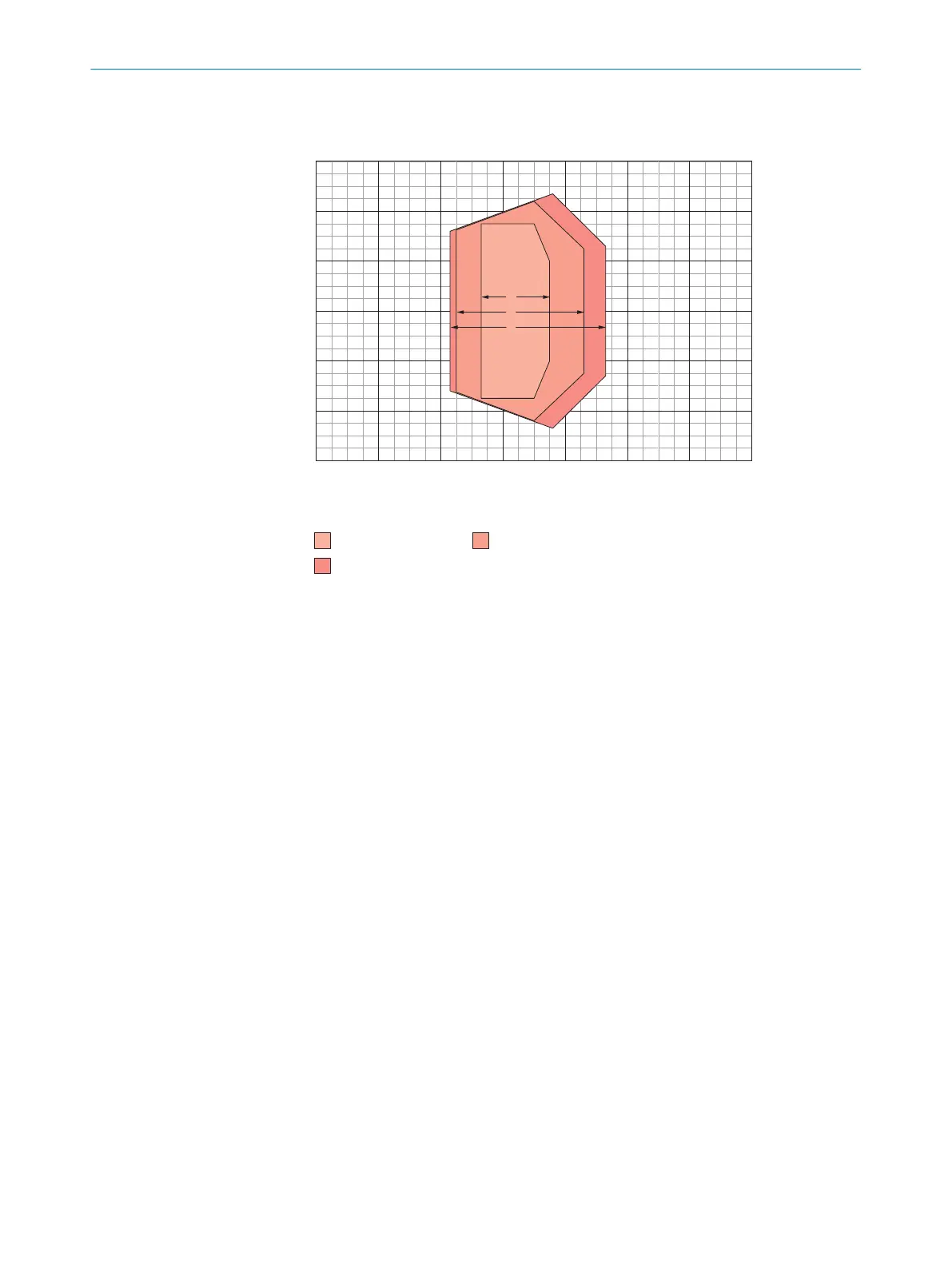

Figure 32: Reading field diagram for CLV612, Short Range, front viewing window
1
Reading field height in mm (inch)
2
Reading distance in mm (inch)
3
Resolution
TECHNICAL DATA 12
