Sender displays
1
PWR
2
ERR

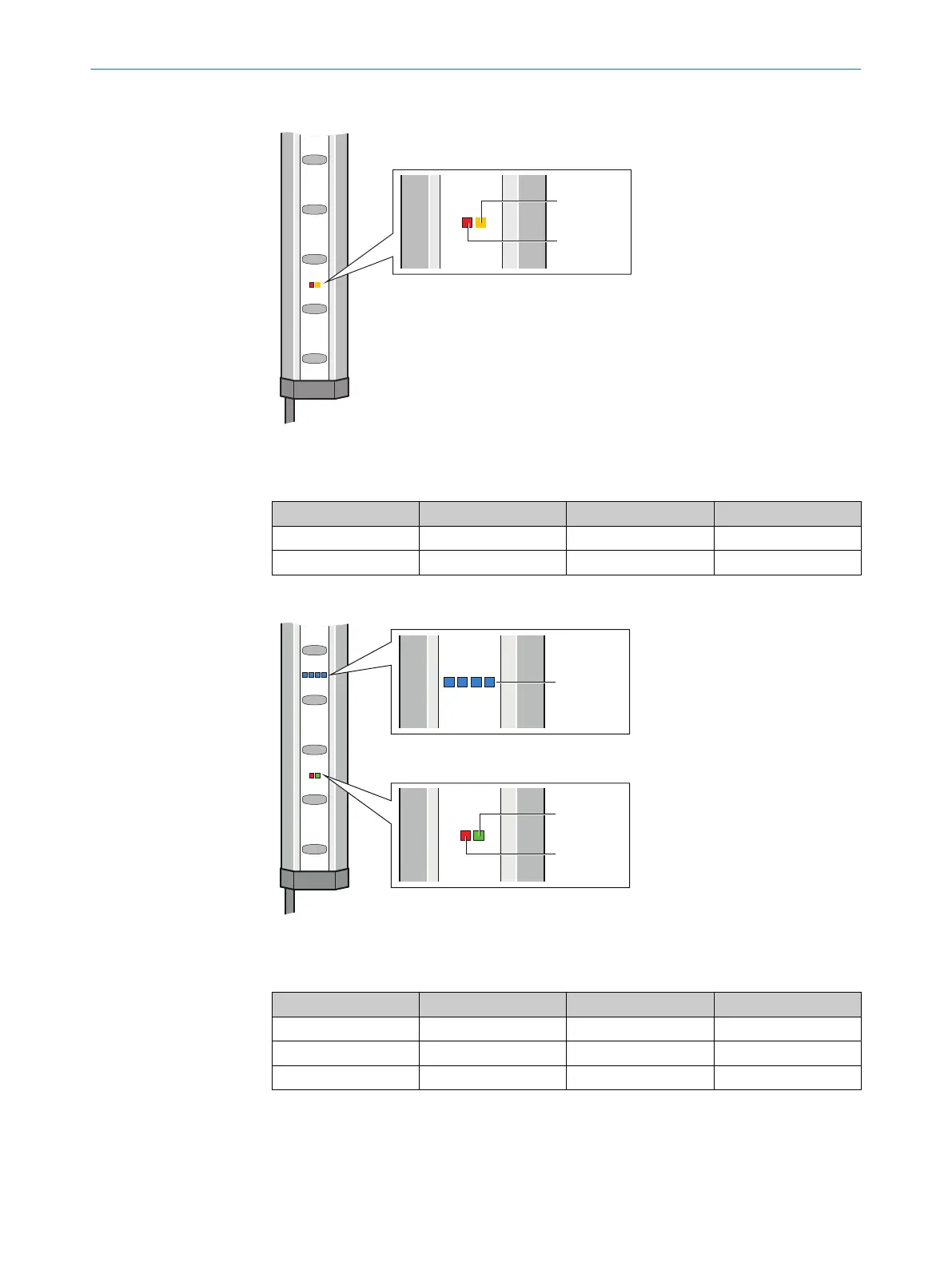

Figure 3: Sender displays
2 LEDs on t
he sender indicate the operational status:
Position LED color Display Labeling
1
Yellow Status indicator PWR
2
Red Fault indicator ERR
Receiver displays
1
O
SSD
2
ERR
3
1
2
3
4
Figure 4: Receiver displays
6 LEDs on t
he receiver indicate the operational status:
Position LED color Display Labeling
1
Red/green OSSD status OSSD
2
Red Fault indication ERR
3
Blue Alignment quality 1, 2, 3, 4
The blue alignment quality light emitting diodes in combination with the red flashing
ER
R LED also denote faults.
3 P
RODUCT DESCRIPTION
12
O P E R A T I N G I N S T R U C T I O N S | deTec4 Core Vibes 8024467/1GWF/2022-11-11 | SICK
Subject to change without notice

SICK deTec4 C4C-EV03030A10000 Specifications

General

Cable length	3 m
Conductor cross-section	0.25 mm²
Locking type	Screw locking
Shielding	Shielded
Drag chain use	Suitable for drag chain use
Ambient operating temperature flexible use	-5 °C ... +80 °C
