2. If the result S is ≤500mm, then use the determined value as the minimum
dis
tance.
3. If the result S is >500mm, then recalculate S with an approach speed of 1,600
mm/s as follows:
S=1,600mm/s×T+8× (d–14mm)
4. If the new value S is >500mm, then use the newly determined value as the
minimum distance.
5. If the new value S is ≤500mm, then use 500mm.
!
"
§
S

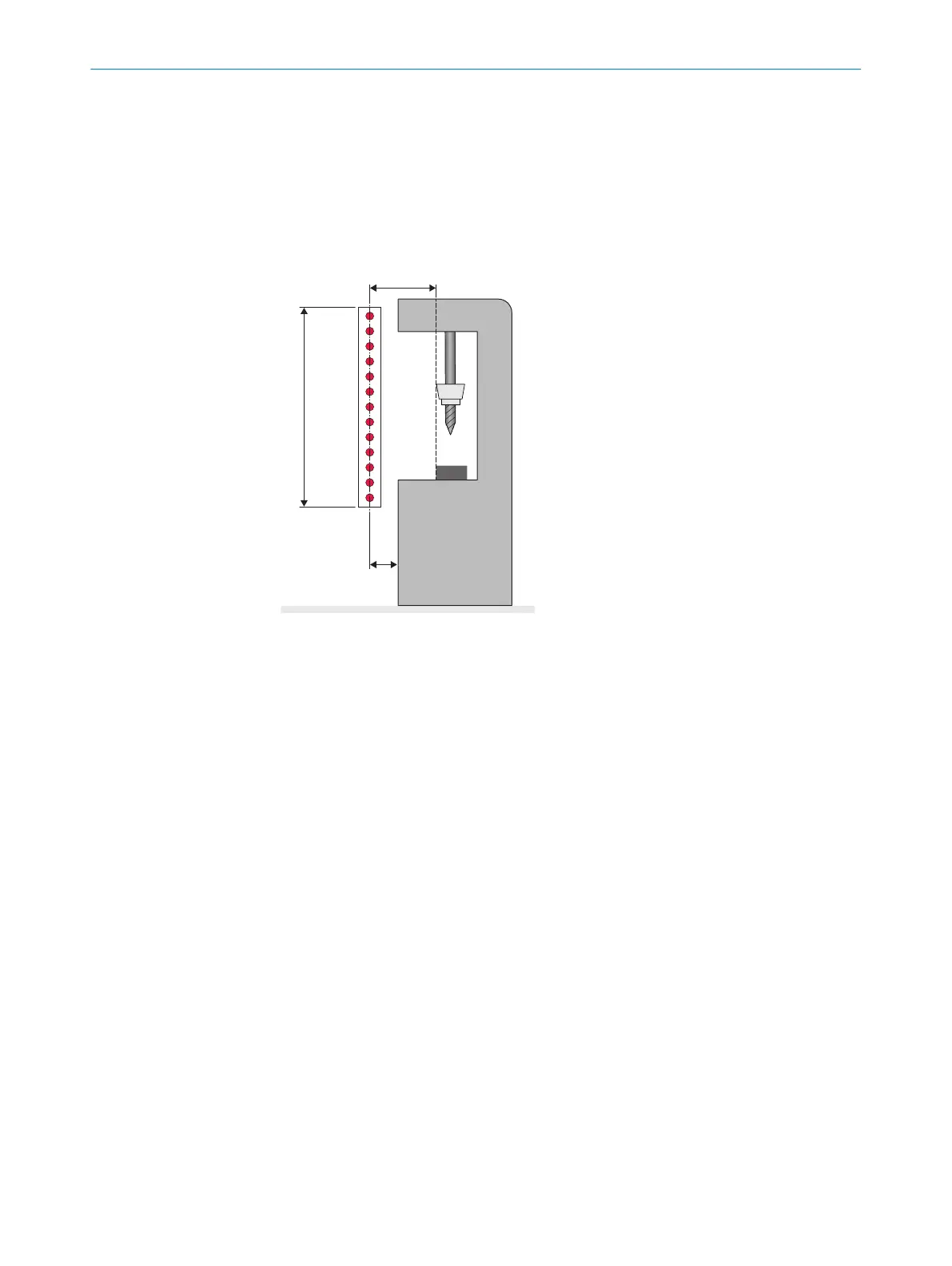

Figure 8: Minimum distance to the hazardous point for orthogonal (rectangular) approach to the
pr
otective field
1
Protective field height
2
Hazardous point
3
Depending on the application and distance, persons must be prevented from standing
behind the protective device.
Example calculation
Mac
hine stopping time = 290ms
Response time after interruption of the light path = 30ms
Resolution of the safety light curtain = 30mm
T = 290ms +30ms = 320ms = 0.32s
S = 2,000mm/s × 0.32s +8 × (30mm –14mm) = 768mm
S >500mm, therefore:
S = 1,600mm/s × 0.32s +8 × (30mm –14mm) = 640mm
4.3.2.2 Taking reach over into account
In accordance with ISO 13855, it must not be possible to defeat the ESPE. If access to
t
he hazardous area by reaching over a protective field cannot be prevented, the height
of the protective field and minimum distance of the ESPE must be determined. This is
done by comparing the calculated values based on the possible detection of limbs or
body parts with the values resulting from reaching over the protective field. The greater
value resulting from this comparison must be used.
4 P
ROJECT PLANNING
18
O P E R A T I N G I N S T R U C T I O N S | deTec4 Core Vibes 8024467/1GWF/2022-11-11 | SICK
Subject to change without notice

SICK deTec4 C4C-EV03030A10000 Specifications

General

Cable length	3 m
Conductor cross-section	0.25 mm²
Locking type	Screw locking
Shielding	Shielded
Drag chain use	Suitable for drag chain use
Ambient operating temperature flexible use	-5 °C ... +80 °C
