SICK deTec4 C4C-EV03030A10000 User Manual

1
3
4
2
a
b
a
b

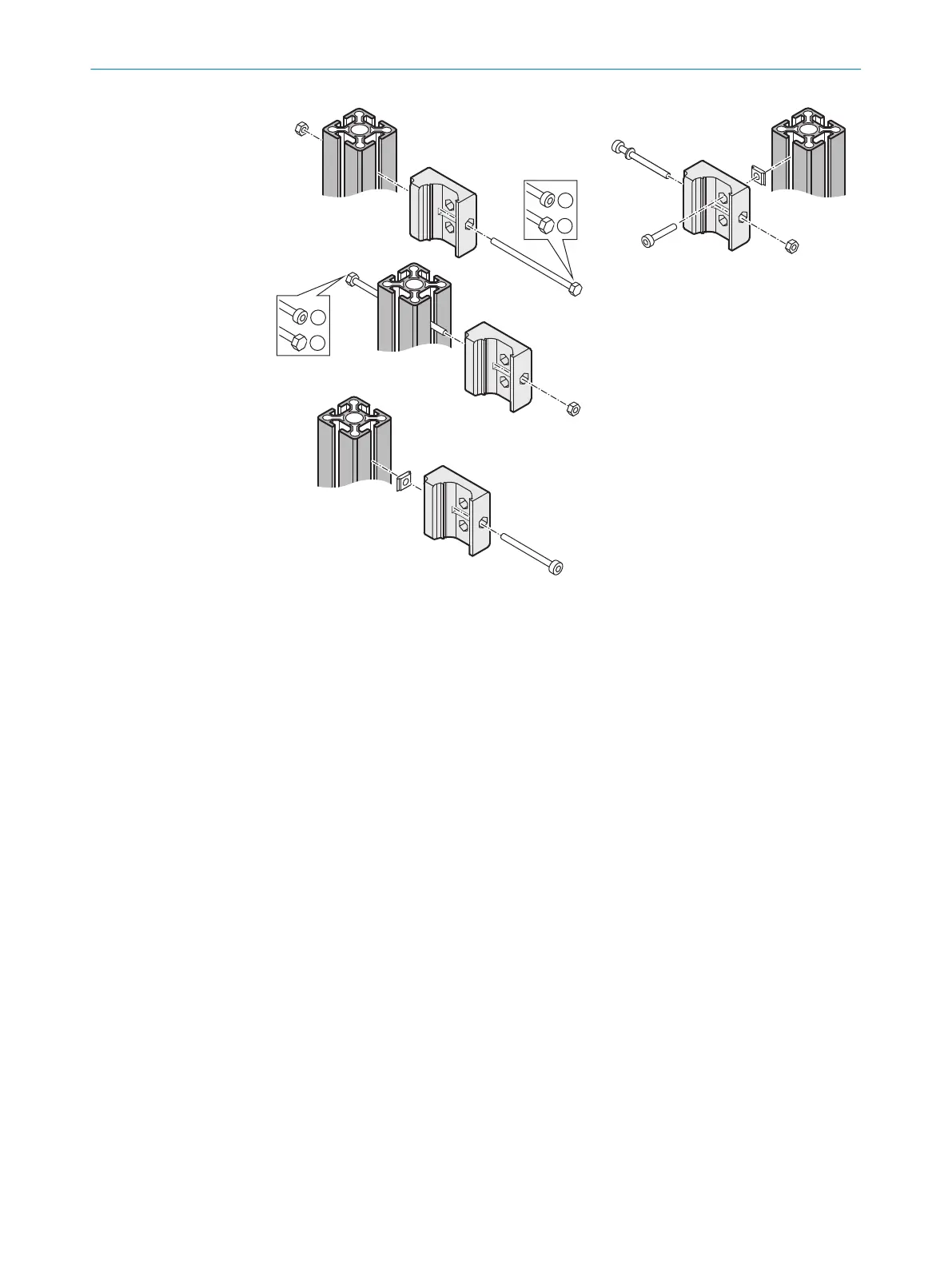

Figure 23: Mounting the QuickFix bracket to a profile
Secure the sender and receiver in the bracket
1.
Insert the housing of the sender and receiver into the bracket so that it fits snugly.
2. Secure the position of the sensor and receiver in the bracket using the M5 screw.
Torque: 2.5Nm to3Nm
MOUNTING 5
8024467/1GWF/2022-11-11 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4 Core Vibes
37
Subject to change without notice

SICK deTec4 C4C-EV03030A10000 Specifications

General

Cable length	3 m
Conductor cross-section	0.25 mm²
Locking type	Screw locking
Shielding	Shielded
Drag chain use	Suitable for drag chain use
Ambient operating temperature flexible use	-5 °C ... +80 °C
