13
8024019/AE00/V1-0/2019-02| SICK A D D E N D U M T O O P E R A T I N G I N S T R U C T I O N S | FWE200DH
Subject to change without notice
COMMISSIONING / CONFIGURING 3
3.2 Connecting the heated extraction hose (optional)
The option of connecting a heated extraction hose is prepared at the factory for the
FWE200DH with water back purge WBP. The electrical connection is made using the plug
connector on the control unit. The power voltage supply and temperature sensor must be
connected.

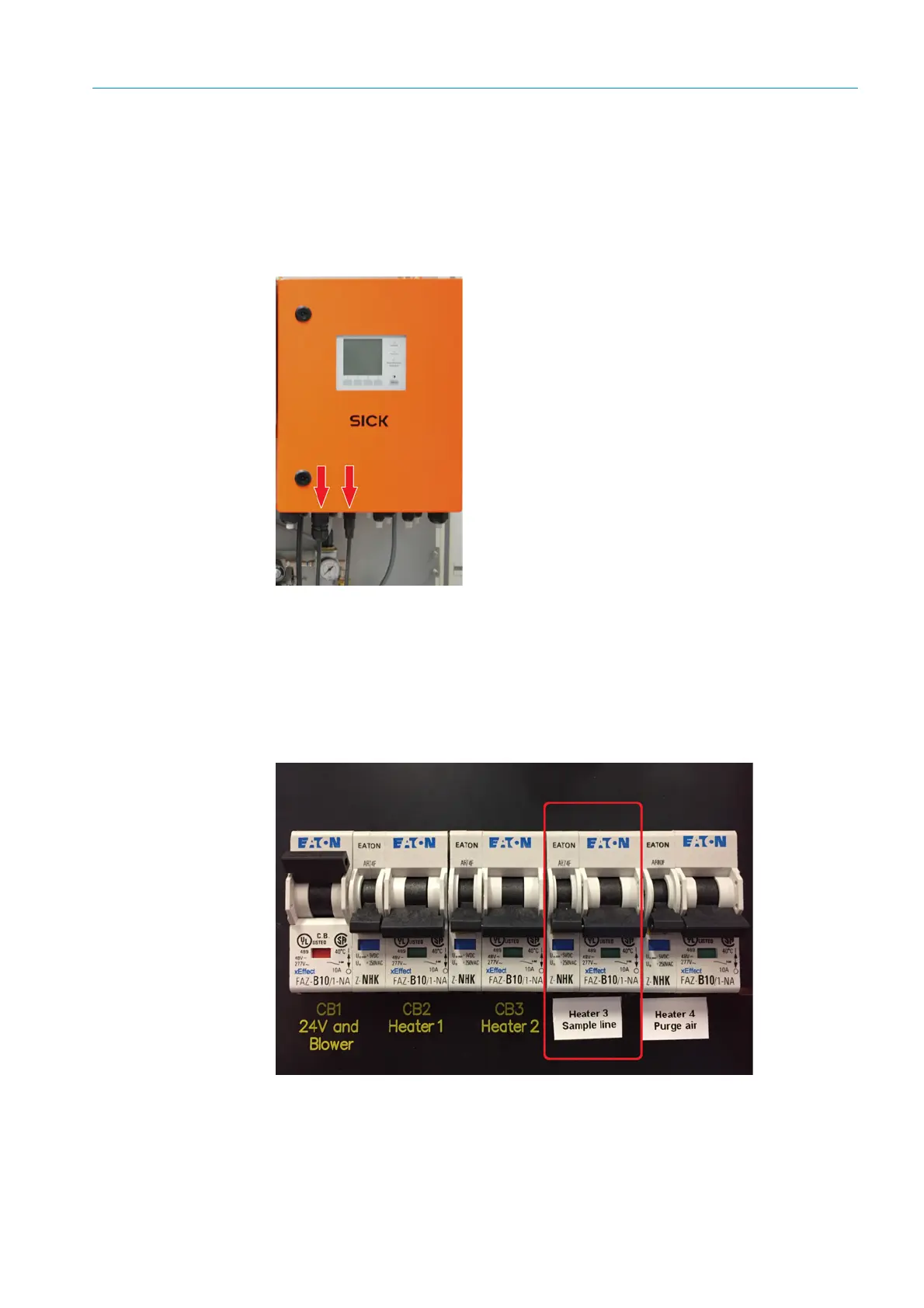

Fig. 9: Power voltage and temperature sensor connection
The heated extraction hose is controlled and regulated using the electronics in the
FWE200DH. Temperatures can be configured using SOPAS ET. The power supply line to the
plug connector is connected to the terminal for “Heater3” in the control unit.
The temperature sensor of the heated extraction hose is displayed as THeizer3 and is
connected to T_Heat3 on the printed circuit board.
Electronic protection is provided by the “CB4” circuit breaker in the control unit.
Fig. 10: CB4 fuse for the heated extraction hose (Heater3)
