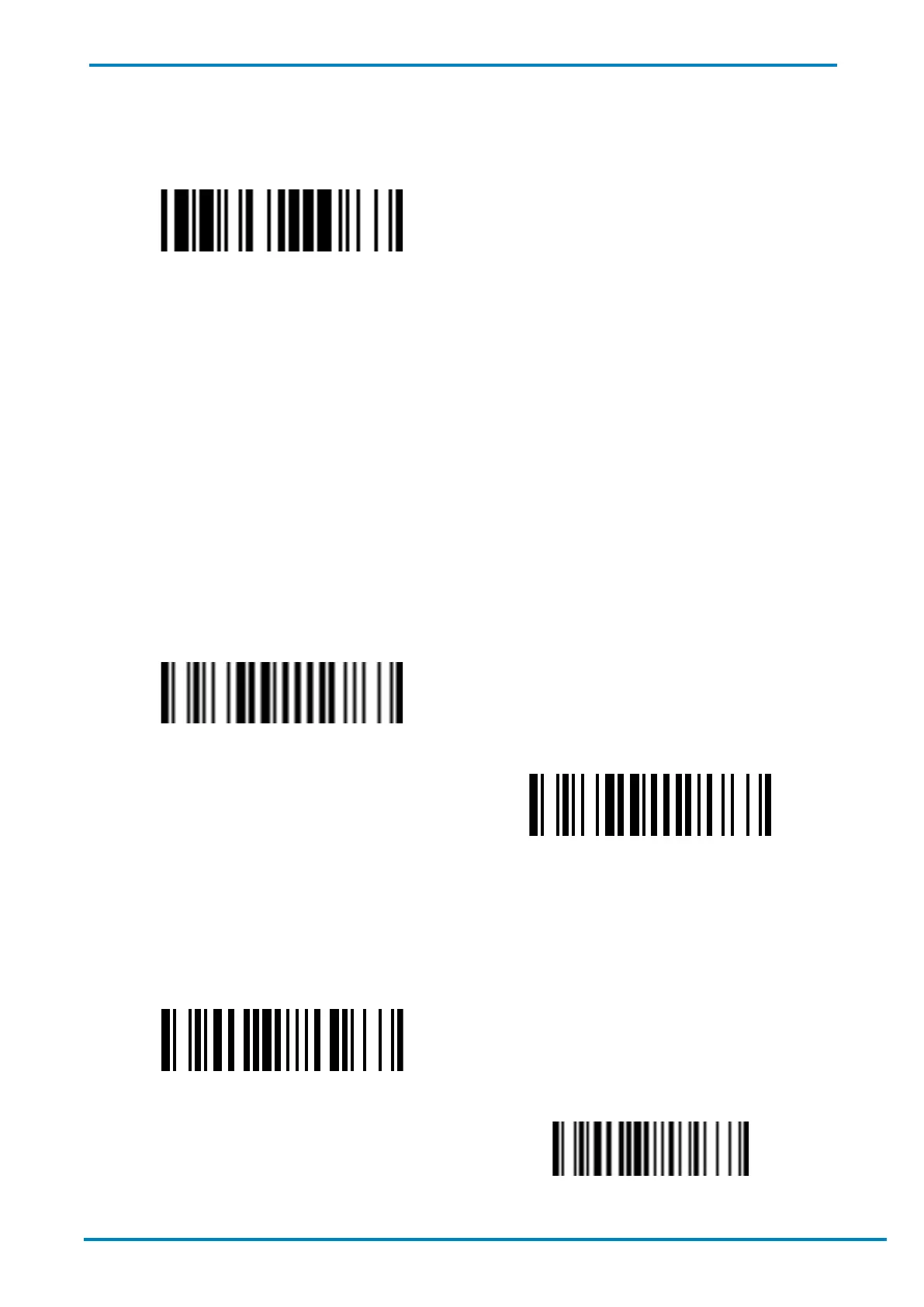

3.4.4 Function Key, Key Pad Emulation, Upper/Lower Case, Dollar Sign
PROGRAM
F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code
Function Key Emulation
SS Enable ASCII 00-31 code as keyboard function code
output 
0
SS Ctrl-Output 1
Refer to Appendix – Keyboard Function Code Table for details.
Key Pad Emulation
SS Disable key pad emulation  0
SS Enable numeric output as key pad (Num Lock On)
output
1
Upper/ Lower Case
SS Normal case (neglect the upper/lower case control)  0
SS Inverse case (change all characters output to inverse
case)
1
SS Upper case (force all characters output as upper case) 2
SS Lower case (force all characters output as lower case) 3
Dollar Sign Control
SS Dollar sign output as “$“  0
SS
Dollar sign output as “￥“
1
SS Dollar sign output as “€“ 2
SS Dollar sign output as “£“ 3
SS Dollar sign output as “¢“ 4

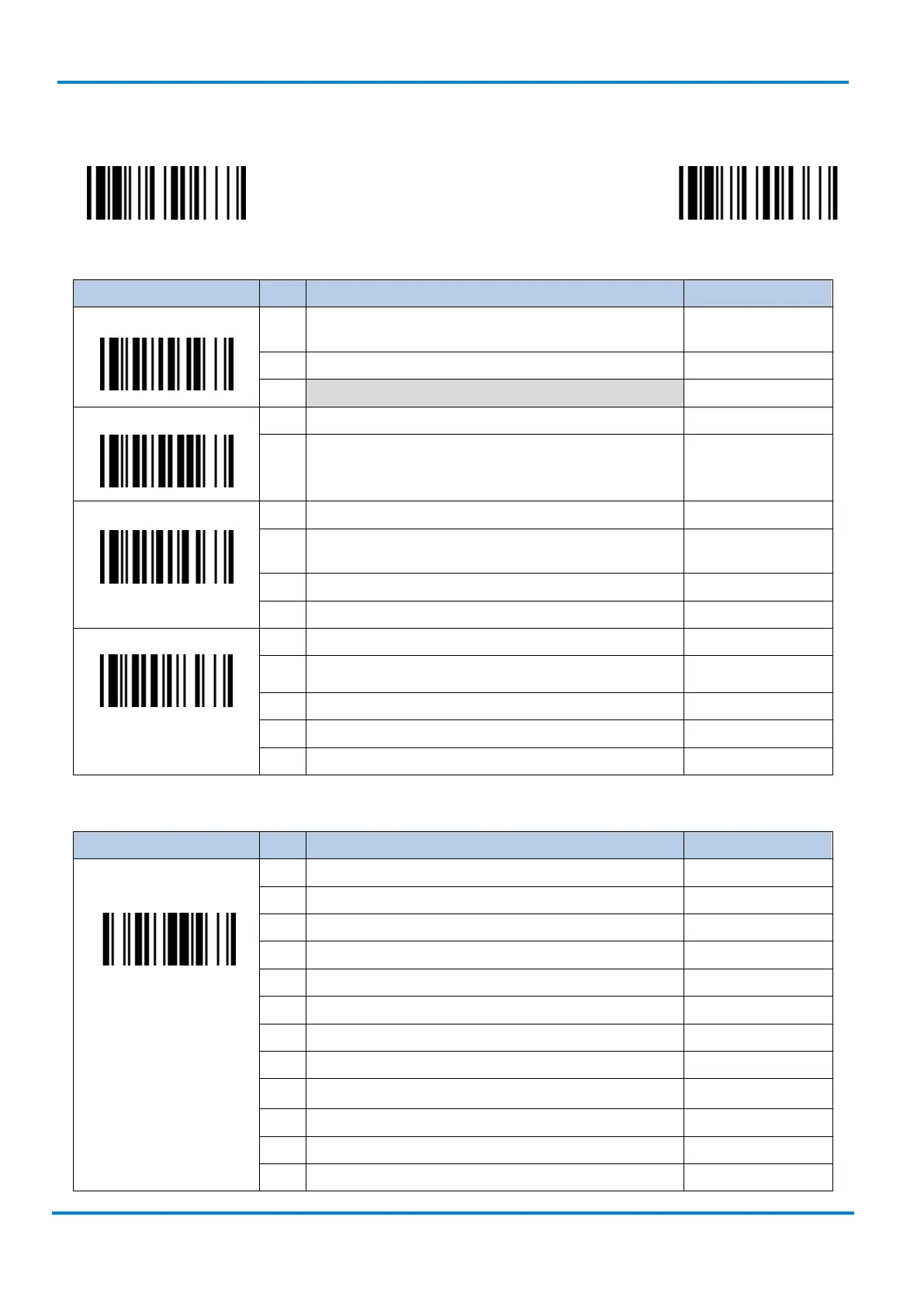

3.4.5 Barcode Encoding Format, Keyboard Output
Family Code Selection P.C. Parameter Selection Option Code
Barcode Encoding
Format
MS UTF8 00
MS Code page 950 10
MS Code page 949 11
MS Code page 936 12
MS Code page 932 13
MS Code page 874 14
MS WIN1250 15
MS WIN1251 16
MS
WIN1252 ◆
17
MS WIN1253 18
MS WIN1254 19
MS WIN1255 1a
