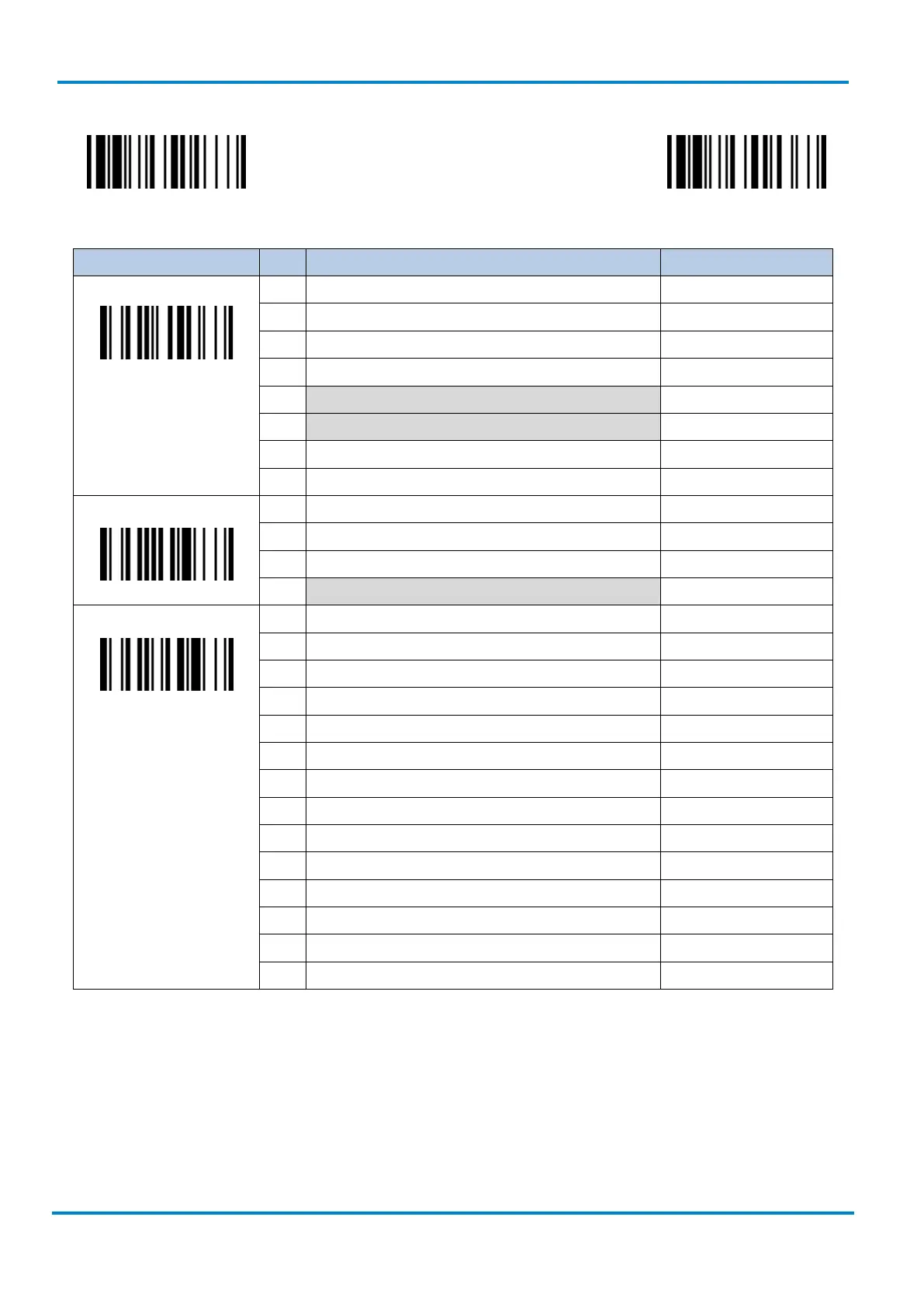

PROGRAM
F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code
UPC Supplement Settings
SS Select UPC without supplement digits  0
SS Select UPC with only 2 supplement digits 1
SS Select UPC with only 5 supplement digits 2
SS Select UPC with 2/5 supplement digits 3
SS Disable force supplement digits output  4
SS Enable force supplement digits output 5
SS UPC Family Addenda Separator Off  6
SS UPC Family Addenda Separator On 7
UPC/ EAN Security Level
SS Level 0 0
SS Level 1  1
SS Level 2 2
Only available for UPC-A & EAN-13
Supplement Scan Vorting
SS None 0
SS Level 1 1
SS Level 2 2
SS Level 3  3
SS Level 4 4
SS Level 5 5
SS Level 6 6
SS Level 7 7
SS Level 8 8
SS Level 9 9
SS Level 10 A
SS Level 11 B
SS Level 12 C
SS Level 13 D
UPC/EAN Security Level
The scanner offers three levels of decode security for UPC/EAN bar codes:
• Level 0: If you are experiencing misread of poorly-printed or out-of-spec. bar codes, especially in
characters 1, 2, 7, and 8 in level 1, please select level 0. Selection of this security level may
significantly impair the decoding ability of the scanner.
• Level 1: This is the default setting which allows the scanner to operate fastest, while providing
sufficient security in decoding “in-spec” UPC/EAN bar codes.
