3.3.1.1 Integrable illumination unit (optional)
For complete devices, the integrable illumination unit is already mounted. For basic
devices, the user needs to order the integrable illumination unit (VI55I ring illumination
unit) separately if required, and install it himself.
1
2
3
1
2

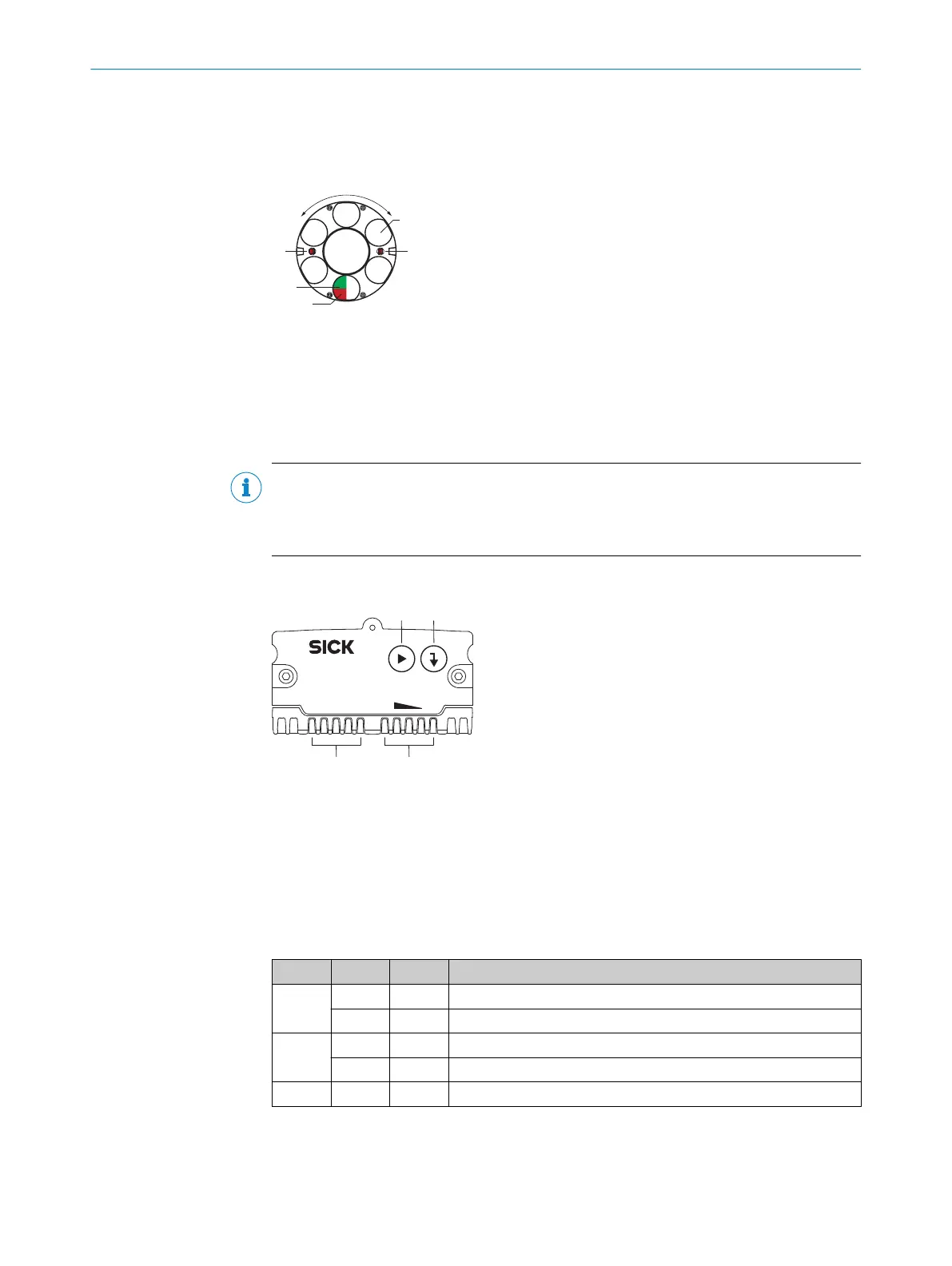

Figure 4: VI55I ring illumination unit (integrable illumination unit)
1
6 LEDs
2
2 openings for the two laser alignment aids for aligning the device, can be deactivated
(color: visible red light)
3
1 feedback LED for the VI55I ring illumination unit (color: visible green light, visible red
light; green for example for Good Read, red for example for No Read).
NOTE
Set the display function of the feedback LED using the SOPAS ET configuration soft‐
ware. With the default device settings, the feedback LED briefly generates a green light
spot within the field of view of the device after a successful read.
3.3.2 Display and control elements
0%
100% Ready Result
|Test |Teach |Focus |Setup
L/A GbE
Func Light
1 2
34
Figure 5: Status LEDs, bar graph display and function keys on the top of the device
1
Arrow pushbutton
2
Return pushbutton
3
Bar graph display
4
Status LEDs
Status indicators
Table 4: First display level
Display LED Color Status
Ready
O
Green Device ready for operation
O
Red Hardware or software error
Result
O
Green Read operation successful
O
Red Read operation unsuccessful
Light
O
Green Read mode: illumination on, internal reading interval open
O = illuminated; Ö = flashing
3 PRODUCT DESCRIPTION
18
O P E R A T I N G I N S T R U C T I O N S | Lector63x Flex C-mount and S-mount 8018071/16XD/2020-05-06 | SICK
Subject to change without notice
