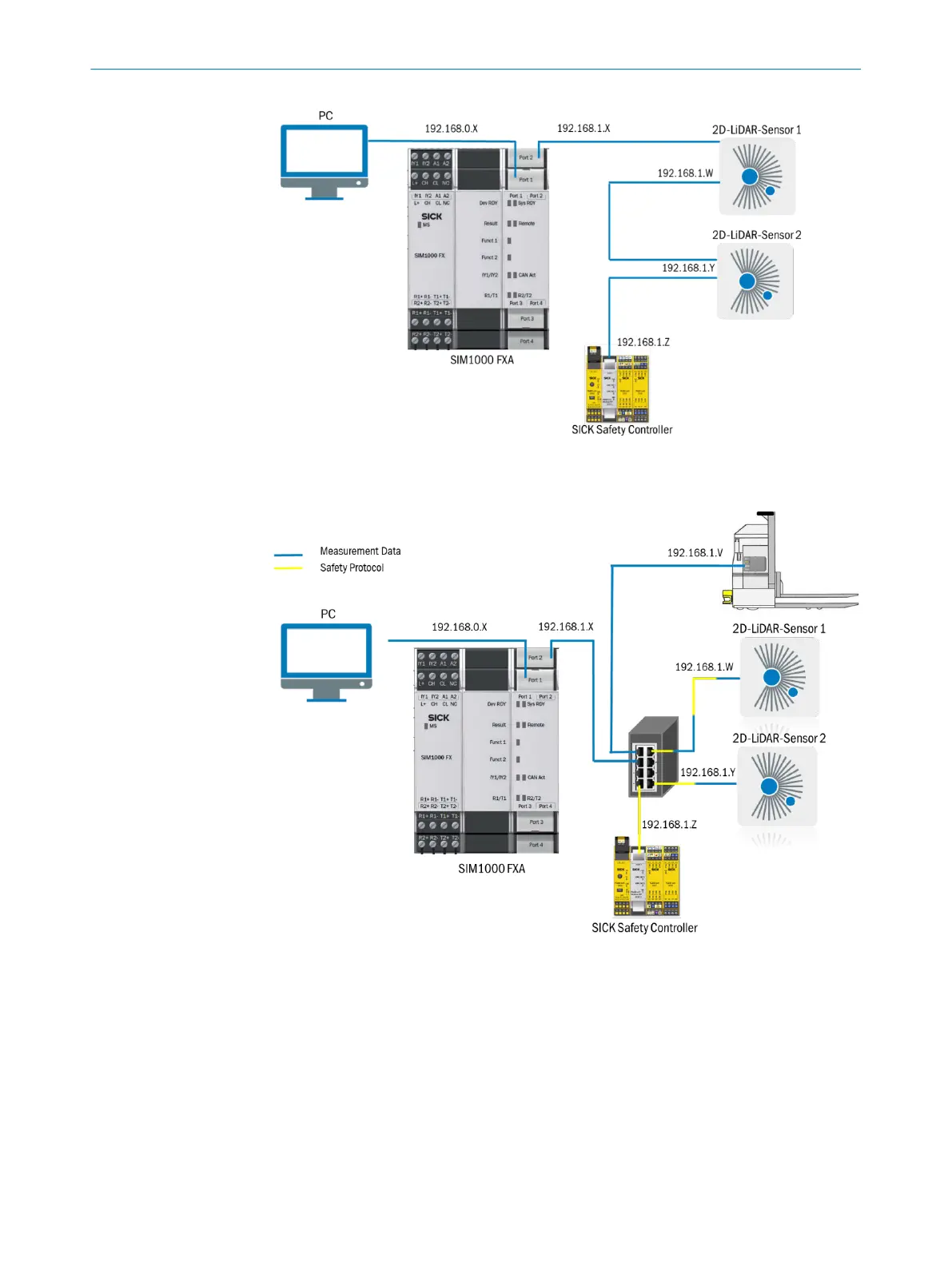

Figure 9: Example of a connection with SIM1000 FXA, a service computer (PC), a SICK safety
c
ontroller, and two 2D LiDAR sensors
Figure 10: Example of a connection with a SIM1000 FXA, a service computer (PC), a SICK safety
c
ontroller, two 2D LiDAR sensors, and measurement data to the vehicle controller
5 ELE
CTRICAL INSTALLATION
16
T E C H N I C A L I N F O R M A T I O N | LiDAR Localization Hardware Integration 8024819/2019-09-02 | SICK
Subject to change without notice
