5.3.3.4 Example connections

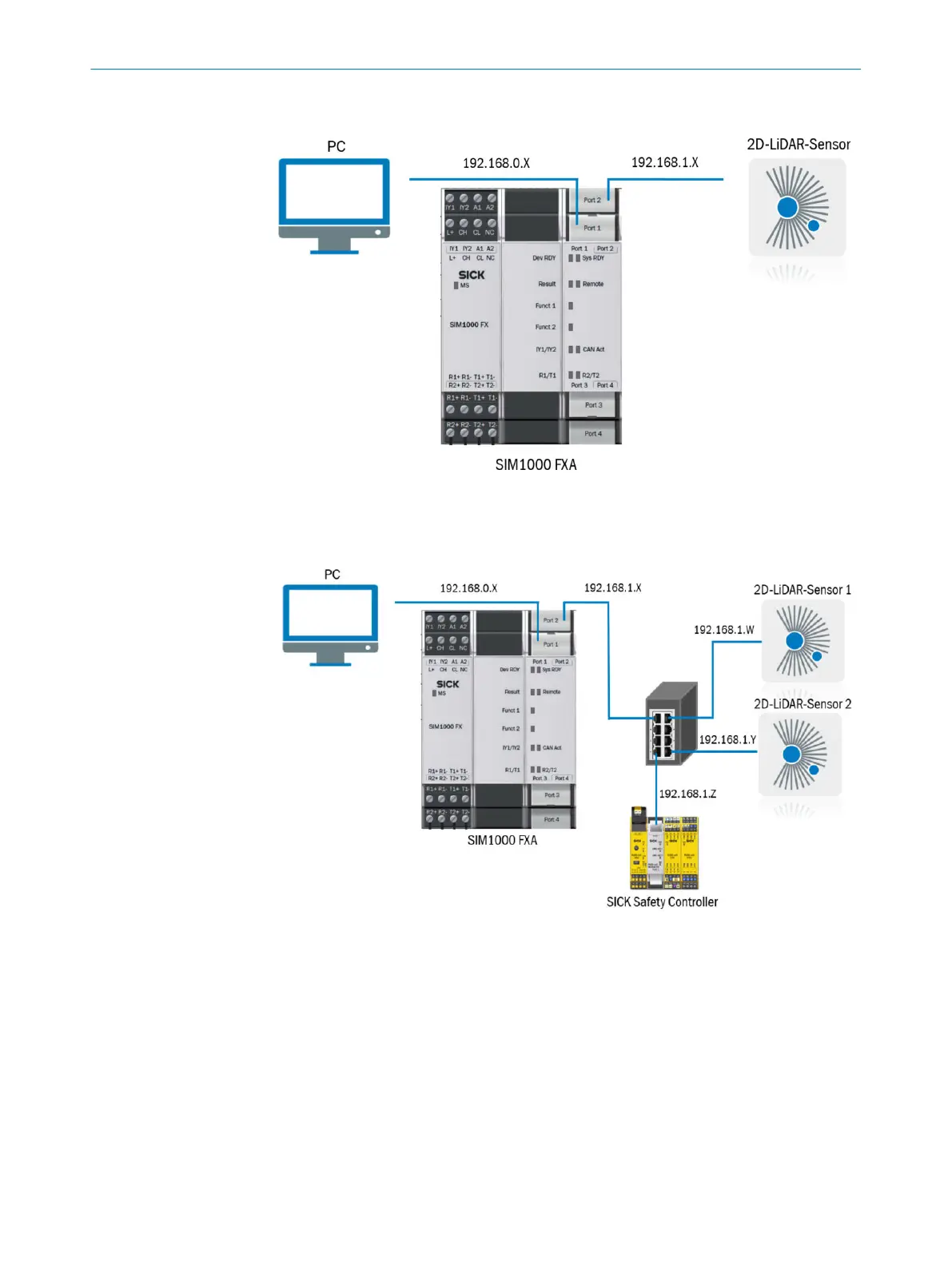

Figure 7: Example of a connection with SIM1000 FXA, a service computer (PC), and one 2D
L
iDAR sensor
Figure 8: Example of a connection with SIM1000 FXA, a service computer (PC), a switch, a SICK
s
afety controller, and two 2D LiDAR sensors
ELECTRICAL INSTALLATION 5
8024819/2019-09-02 | SICK T E C H N I C A L I N F O R M A T I O N | LiDAR Localization Hardware Integration
15
Subject to change without notice
