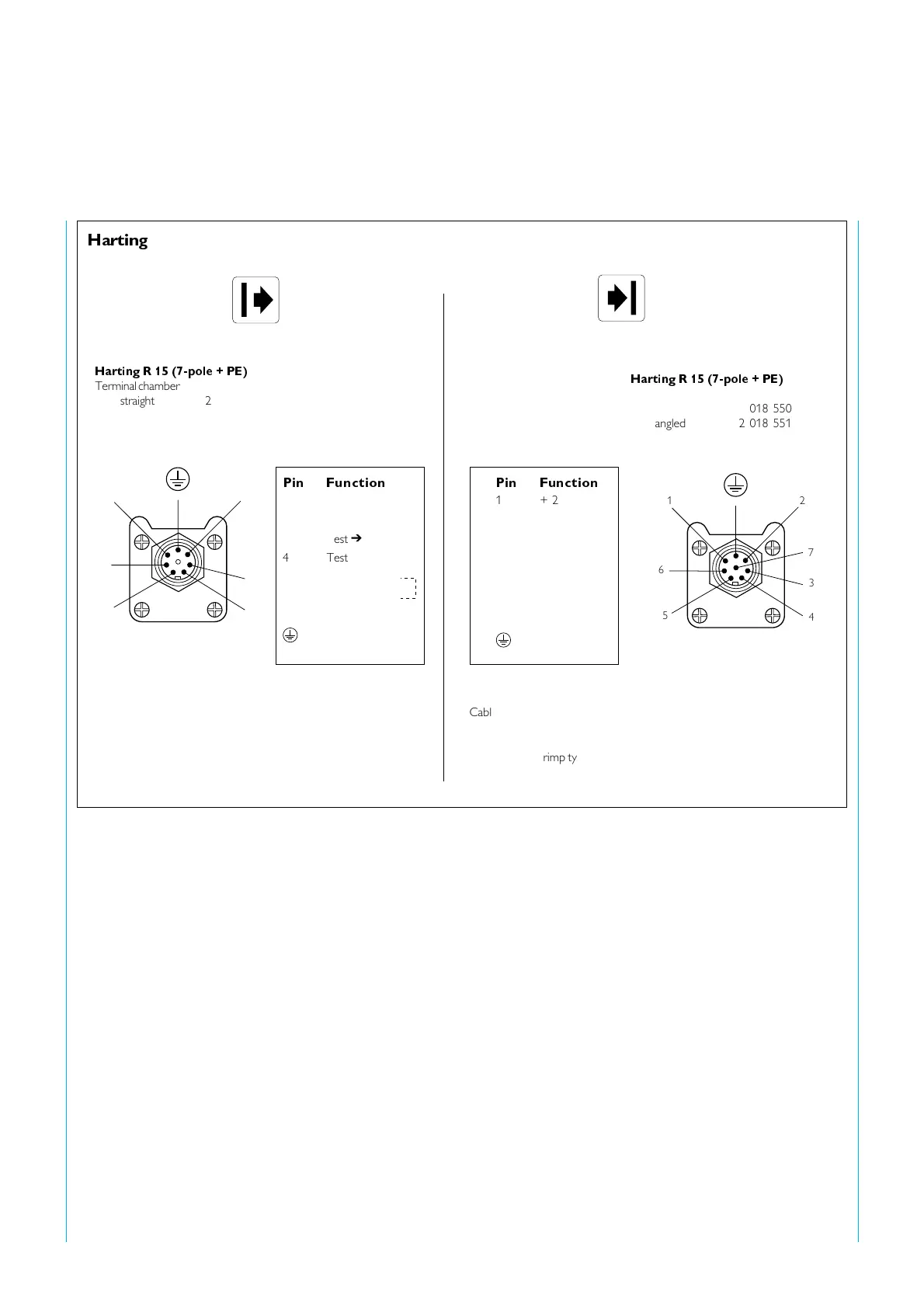

Harting R 15 (7-pole + PE)
Terminal chamber
straight 2 018 549
angled 2 019 081
Cable socket (crimp type)
Cable diameter 11 - 15 mm 6 011 105
Cable socket (crimp type)
Cable diameter 15 - 20.5 mm 6 011 058
Harting R 15 (7-pole + PE)
Terminal chamber
straight 2 018 550
angled 2 018 551
Pin Function
1+ 24 V
20 V
3 OSSD 1
4 OSSD 2
5 RES
6 EDM
7 OWS
PE
Pin Function
1 + 24 V
20 V
3 Test 
4 Test 
5 Scanning range
6 Scanning range
PE
1
6
4
3
2
5
1
6
4
3
2
5
7
Harting
Cable socket (crimp type)
Cable diameter 11 - 15 mm 6 011 105
Cable socket (crimp type)
Cable diameter 15 - 20.5 mm 6 011 058
