5 Integration and commissioning of the NAV-LOC in a vehicle
8023450/2018-12-17| SICK OPERATING INSTRUCTIONS | NAV-LOC
11
Subject to change without notice
A pulse on pin 4 (digital output 1) of the NAV310 is selected for synchronization.
In order to access this pin, a 5-wire cable, such as with part number 6043440 (5 m length, open
ends) must be used without fail; it can be shortened if necessary.
NOTE
For navigation control to be able to evaluate the hardware signal of the scanner, it is important to
connect switching output OUT 1 from the scanner, which is available on the black wire of the 5-pin
supply cable, to input X4-1 (IN1+) of the SIM.

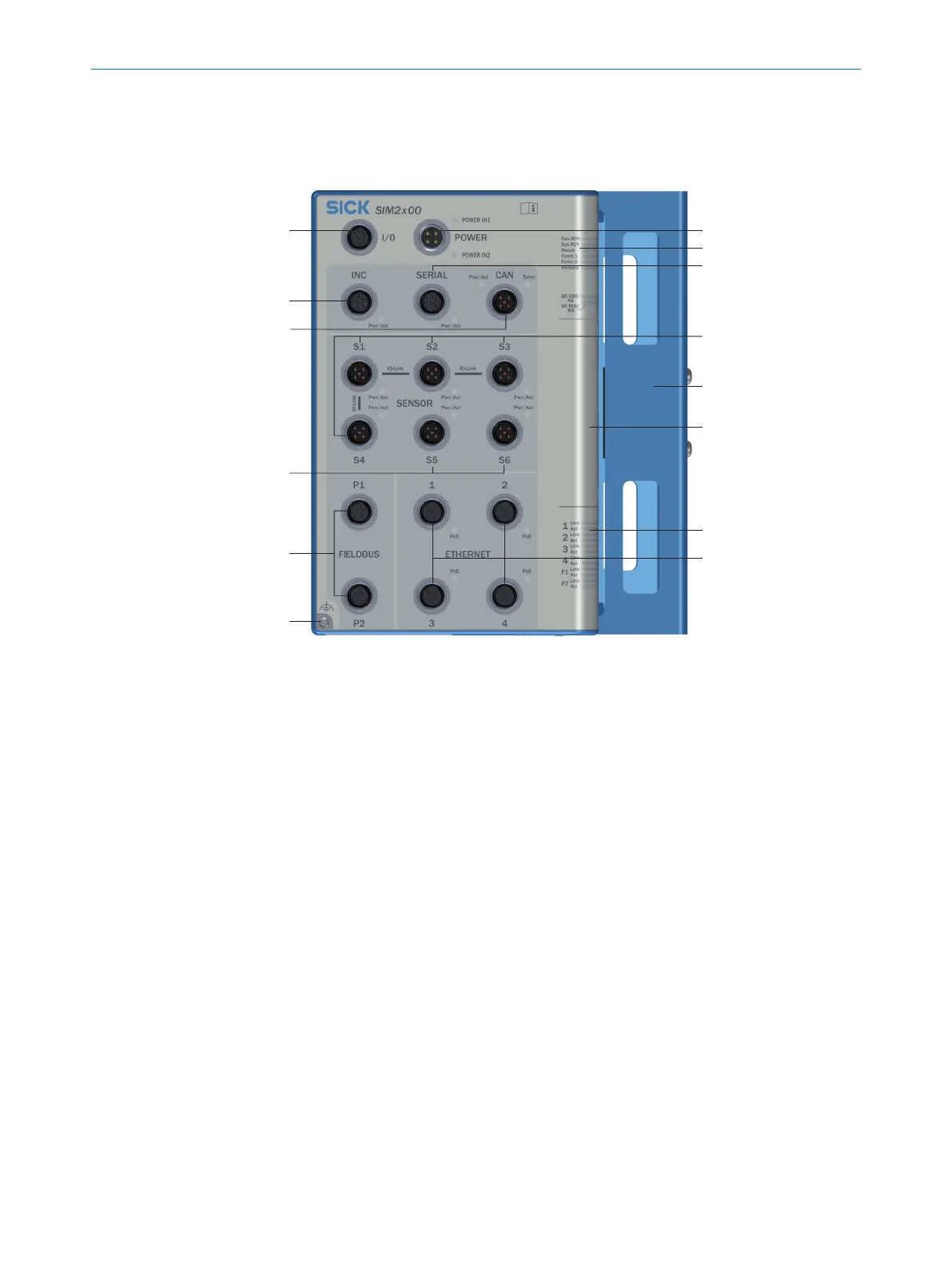

Wiring example of a voltage supply of the SIM2000-0A20A00 and NAV310
NOTE
Monitor LED 1 sends a common signal when sync signals are received by the connected scanner.
