Laser Safety Key Box (ICT-B)
H Laser Safety Key Box (ICT-B)
A Laser safety key box is available as accessory. This box is intended to be used in a laser
system.
The ICT-B box is used for connecting one or more lasers, and has a key switch for turning
on and off the laser power. It can be used for simplifying the connection of the laser trigger
pulse to a laser.
The ICT-B box provides a key-actuated master control, a remote interlock connection, a
connection for an external warning lamp and a delayed power on supply to the laser. The
ICT-B box is powered with 24 V DC, and the laser supply voltage is 5.3 V DC.
Please refer to the ICT-B Operating Instructions before attempting to connect lasers and
the ranger to the ICT-B Box.

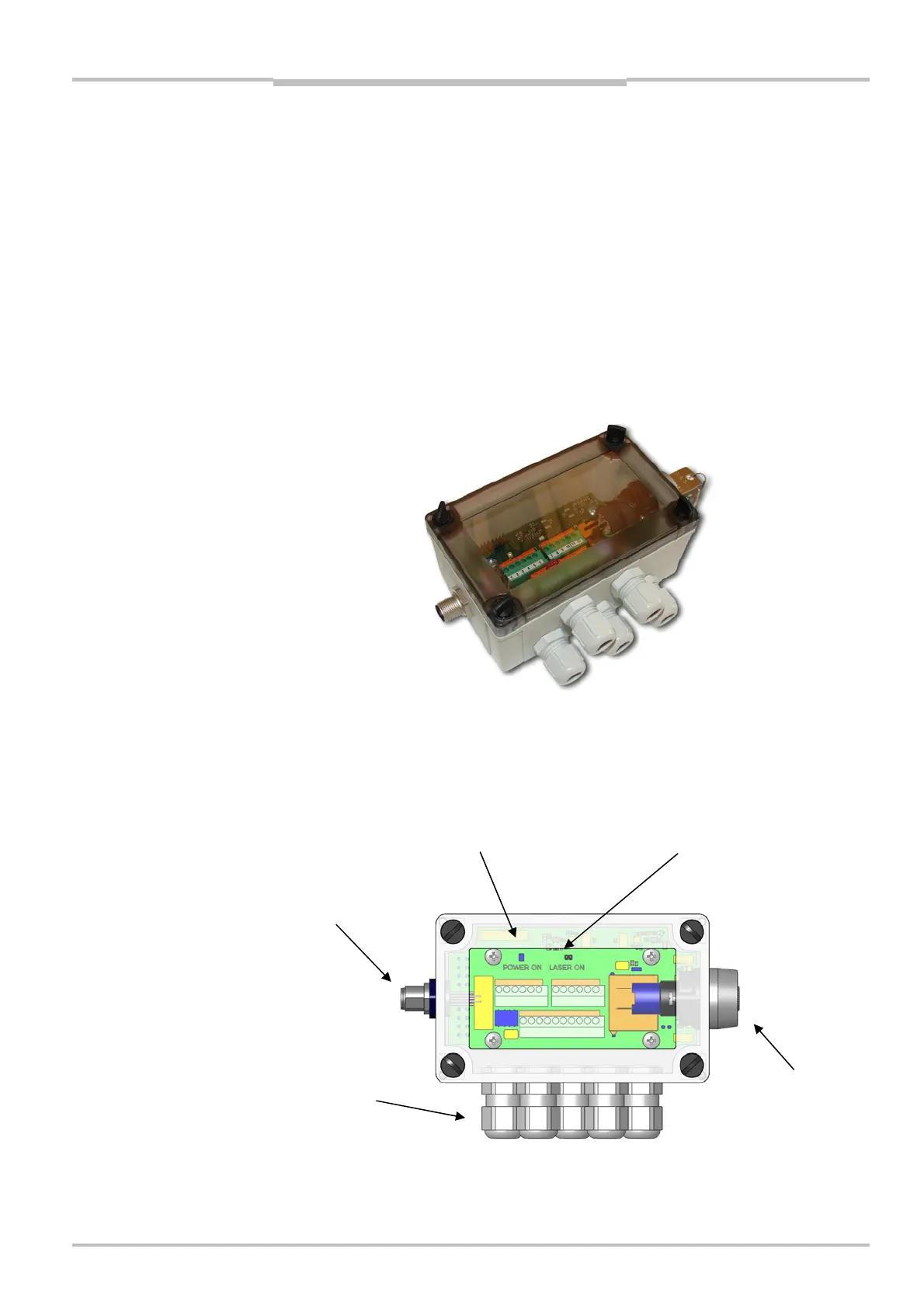

Figure H.6 – ICT-B Laser Safety box
Figure H.7 – ICT-B Laser Safety box connectors and LEDs
Lit if laser power
supply is on
Lit if device
power is on
Key switch for
laser power
Output to lase
Input from external
power supply and I/O
