Safety laser scanners
 


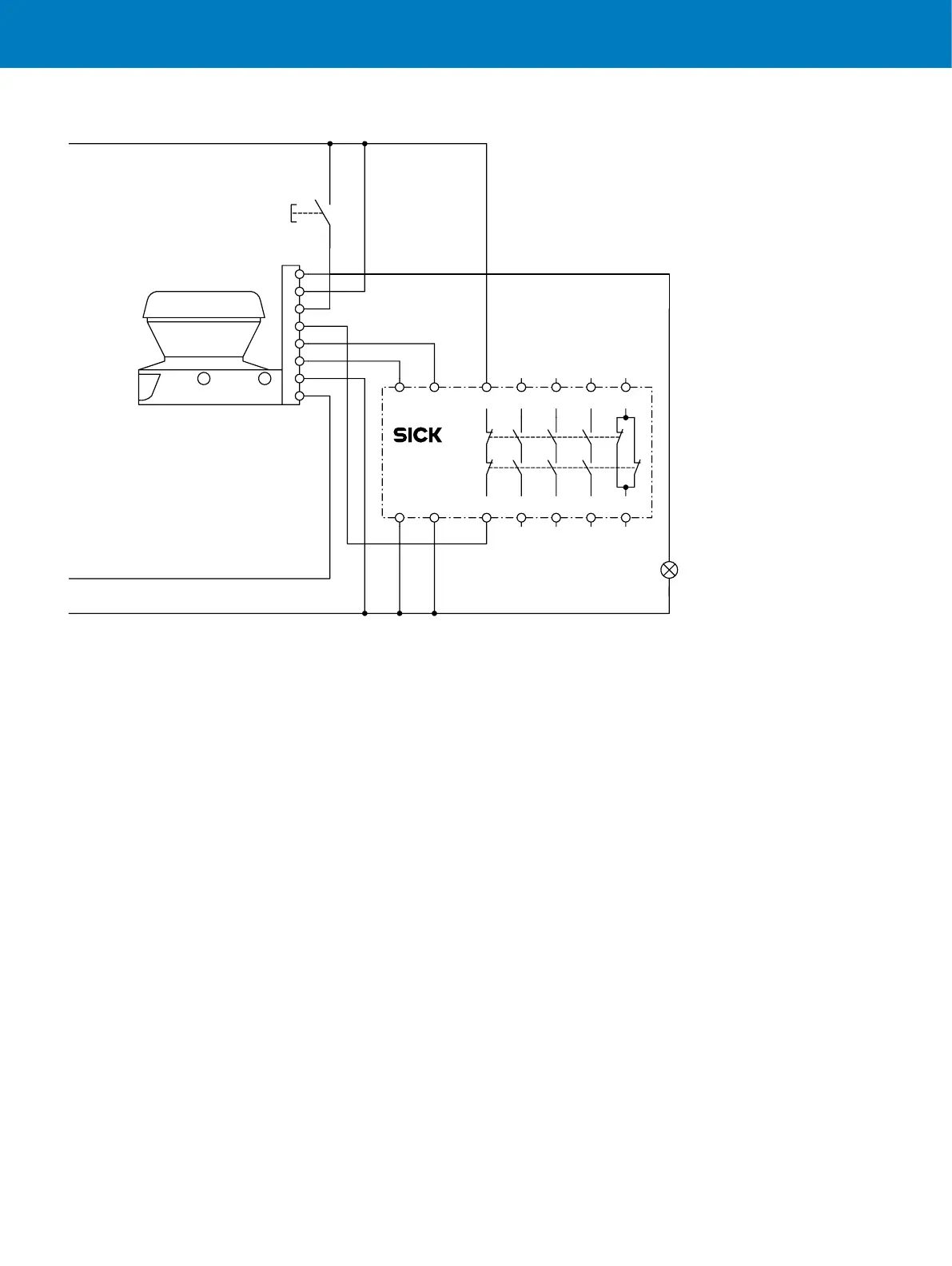

S300 Mini Standard on UE10-3OS safety relay
2
3
4
5
6
7
8
1
sh = shield
UE10-3OS
H1
S1
S300 Mini Standard
B1 B3 Y1 13 3323 41
B2 B4 Y2 14 3424 42
bn
gn
ye
pk
bu
sh
wh
gy
+24 V
FE
0 V
• S300 Mini Standard on UE10-3OS safety relay
• Operating mode: with restart interlock (universal I/O 1 must be congured as reset) and external device monitoring
(universal I/O 2 must be congured as EDM)

SICK S300 Specifications

General

Protection Class	IP65
Resolution	30 mm
Interface	RS-422, Ethernet
Power Supply	24 V DC
Operating Temperature	0 °C ... +50 °C
