Table 4: Status display of the microSD memory card
Display LED Color Status
MicroSD Lights up Green The device writes data to the correctly installed memory
card.
Read access to the card is not signaled.
3.3.3 Acoustic status indicator
The beeper (buzzer) is located under the cover on the top of the device, see "Device
view", page 15. The API contains functionality for setting the beep duration, the pitch,
the tone sequence and the volume level.
3.3.4 Memory card
The device has a card slot integrated in the housing. This slot accommodates a memory
card in microSD format.
NOTE
The memory card is optional and is not included with the device scope of delivery. The
device supports memory cards up to max 32 GB.
Only use types (industrial standard) approved by SICK to ensure reliable function of the
memory card. You can find these as accessories online at:
•
www.sick.com/InspectorP62x
The memory card has no write protection that can be activated.
Inserting the memory card in the device:
NOTICE
Risk of damage to the memory card!
b
To avoid damaging the memory card, make sure the device is de-energized when
you insert or remove it. For this purpose, disconnect the device from the supply
voltage.

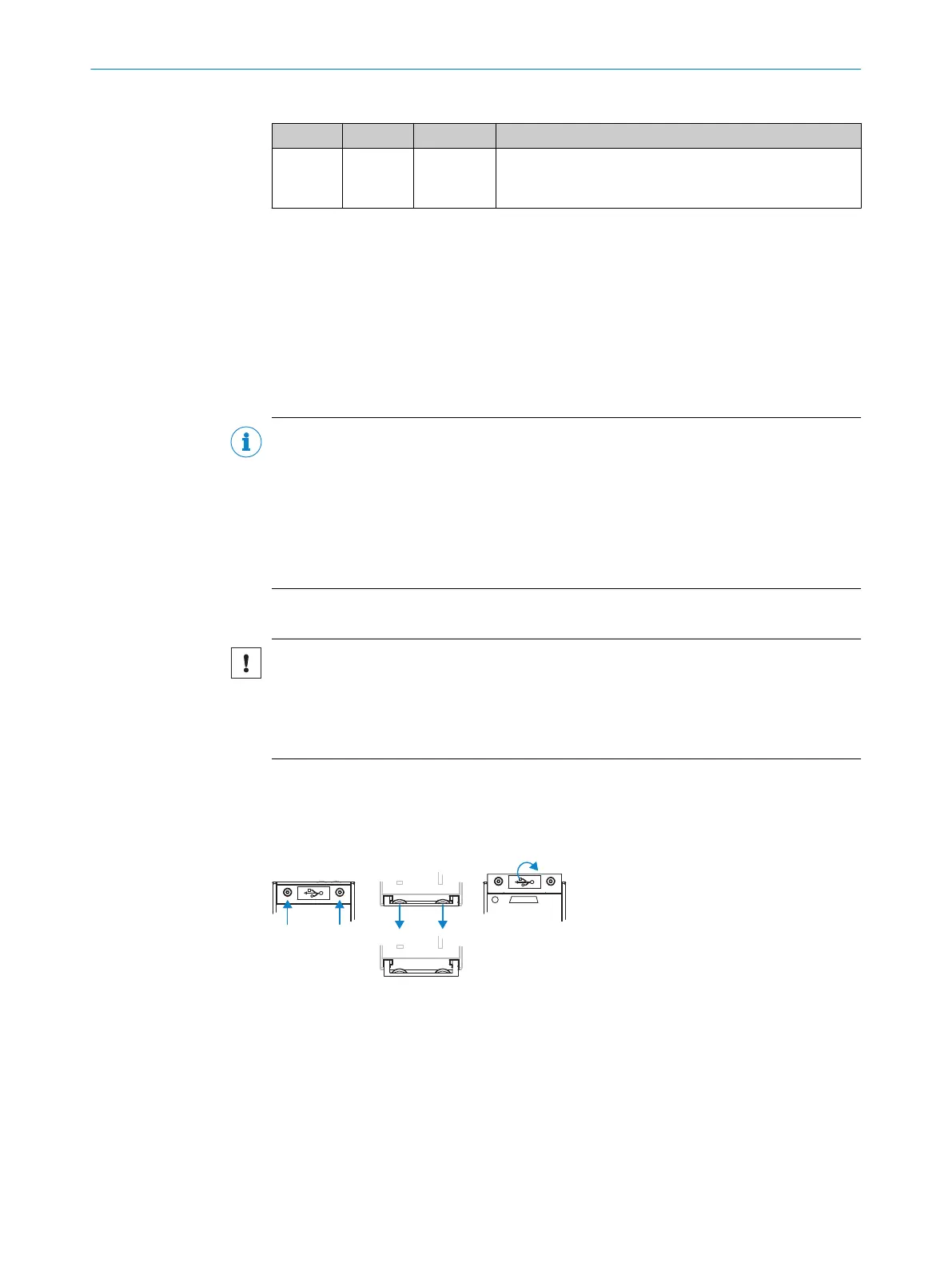

Access to the card slot
The card slot for the memory card is located at the top of the device at the rear under
the hinged cover.
1. 3.
LNK TX
Userdefined
100
70
40
0
[mm]
[%]
LNK TX
Userdefined
100
70
40
0
[mm]
[%]
2.
1. Switch off the supply voltage to the device.
2. Undo the screws (Torx TX6, captive) on the hinged cover (in Figure: step 1) and
open the cover as follows:
°
Carefully pull the upper edge of the flap away from the housing a little at the
level of the hinges on the side (in Figure: step 2). Use both of the recesses on
the inside of the flap to do this.
°
Fold the flap upwards starting from the bottom edge.
3. Making sure it is in the correct position, insert the memory card into the slot until
it locks into place. When doing this, position the contacts so that they are facing to
the rear and upwards, see the card symbol on the device.
3 PRODUCT DESCRIPTION
18
O P E R A T I N G I N S T R U C T I O N S | InspectorP621 8024439//2019-06 | SICK
Subject to change without notice
