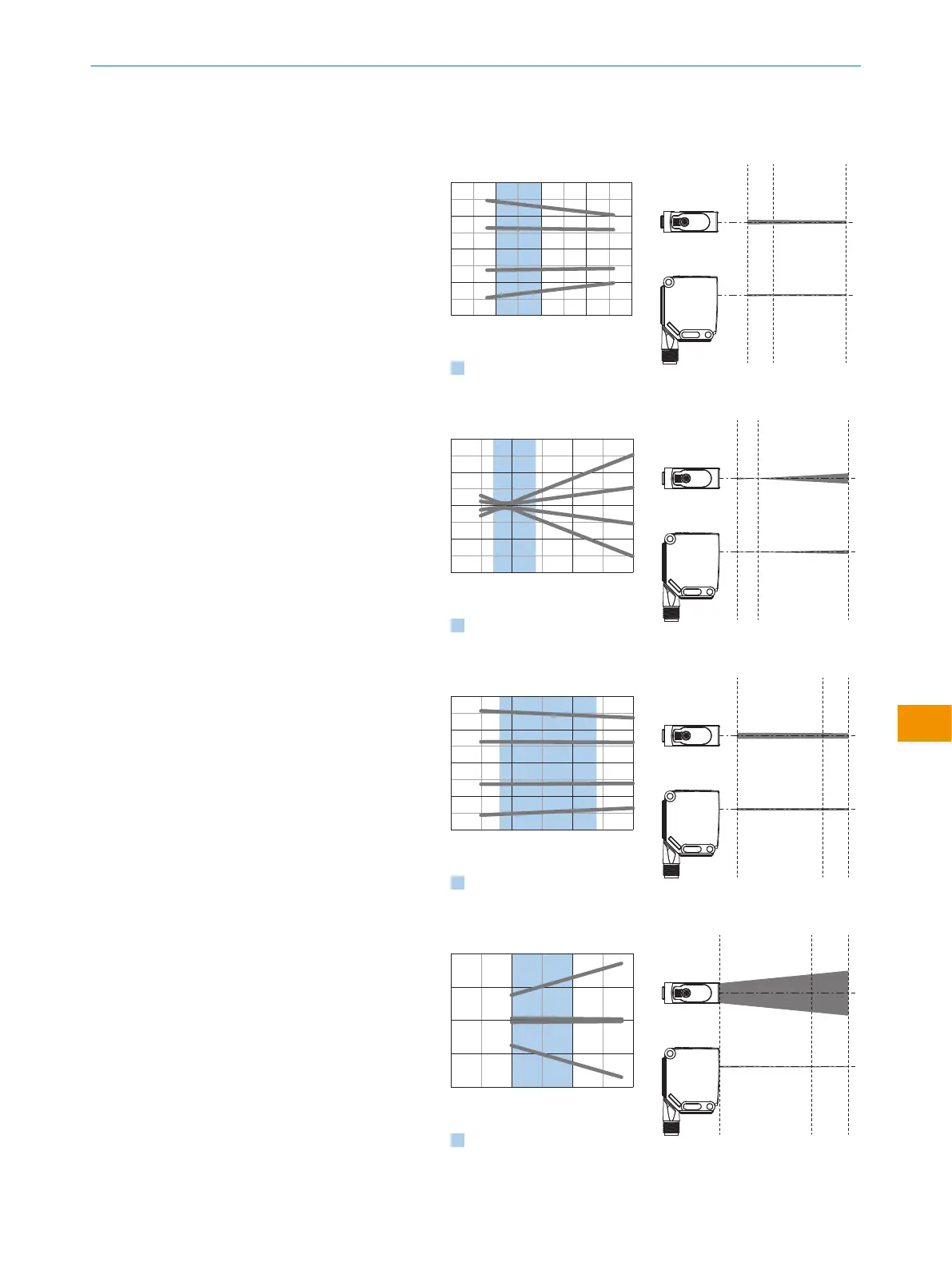

10.3 Wykresy plamek świetlnych
WTx12L-xxxxx1xx
0
Distance in mm (inch)
Dimensions in mm (inch)
Recommended sensing range for
the best performance
80
(3.15)
150
(5.91)
350
(13.78)
100
(3.94)
200
(7.87)
300
(11.81)
400
(15.75)
0
1
(0.04)
–1
(–0.04)
2
(0.08)
–2
(–0.08)
Rysunek 17: WTx12L-xxxxx1xx
WTx12L-xxxxx2xx
0
Distance in mm (inch)
Dimensions in mm (inch)
0
2
(0.08)
–2
(–0.08)
Recommended sensing range for
the best performance
20
(0.79)
45
(1.77)
150
(5.91)
4
(0.16)
–4
(–0.16) 100
(3.94)
50
(1.97)
150
(5.91)
Rysunek 18: WTx12L-xxxxx2xx
WTx12L-xxxxx8xx
0
Distance in mm (inch)
Dimensions in mm (inch)
0
1
(0.04)
–1
(–0.04)
Recommended sensing range for
the best performance
20
(0.79)
150
(5.91)
120
(4.72)
2
(0.08)
–2
(–0.08) 100
(3.94)
50
(1.97)
150
(5.91)
Rysunek 19: WTx12L-xxxxx8xx
WTx12V-xxxxx1xx
0
Distance in mm (inch)
Dimensions in mm (inch)
0
12.5
(0.49)
–12.5
(–0.49)
Recommended sensing range for
the best performance
0 140
(5.51)
100
(3.94)
25
(0.98)
–25
(–0.98) 100
(3.94)
50
(1.97)
150
(5.91)
Rysunek 20: WTx12V-xxxxx1xx
