WTx12x-xxxxx1:
8.7 (0.34)
29.9 (1.18)
43.1 (1.70)
7.2 (0.28)
39.9 (1.57)
16.2 (0.64)
16.8 (0.66)
33 (1.30)
49.5 (1.95)
9 (0.35)
15.6 (0.61)
M12
5
5
4
1
3
2
6

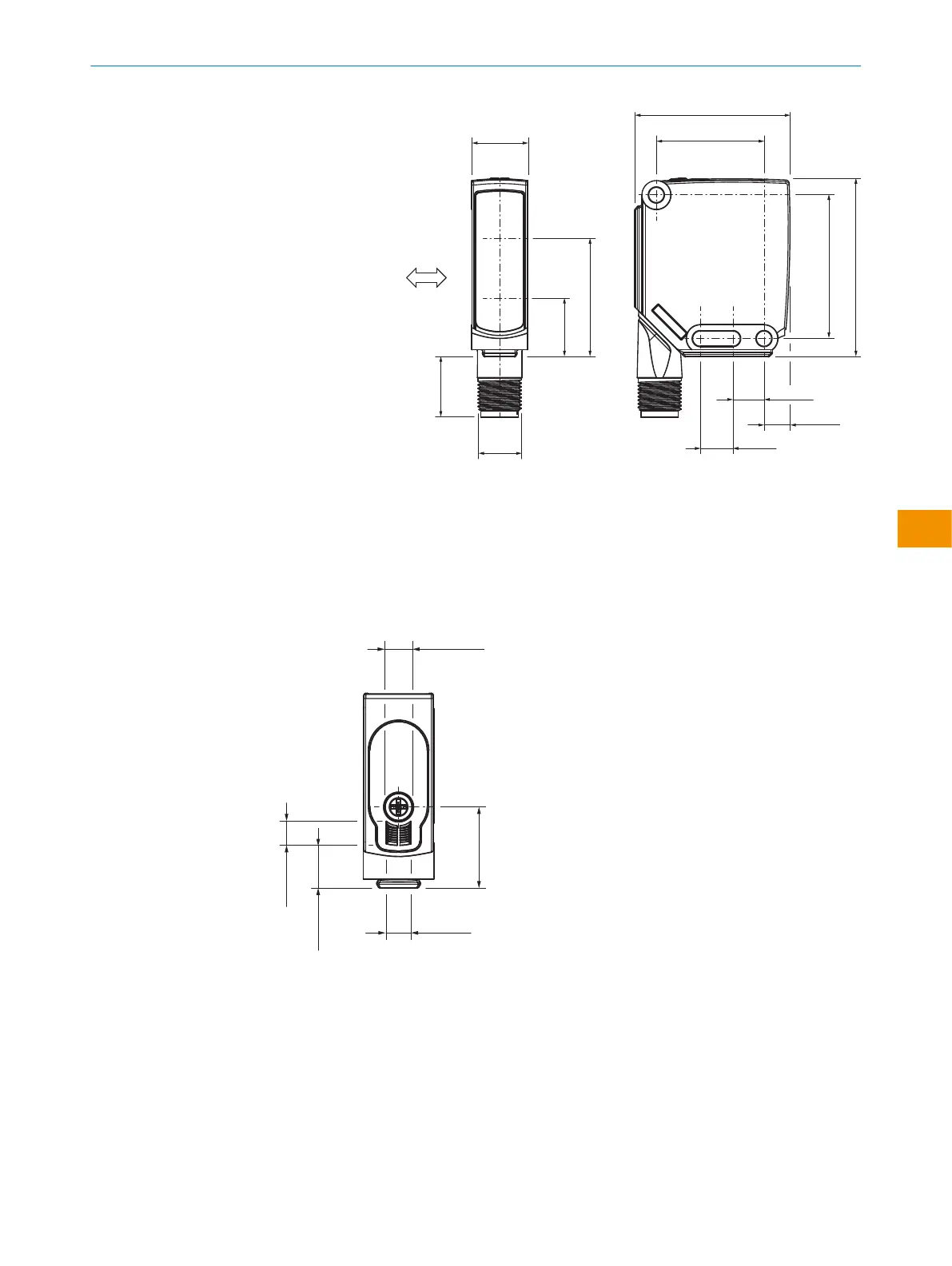

Figure 15: Sensor with M12 male connector, large sensing range
1
Preferred direction of the target object
2
Center of optical axis, receiver (far range)
3
Center of optical axis, sender
4
Connection
5
Fixing hole Ø 4,1mm
6
Operating and status indicators
5.5 (0.22)
Ø 6.2 (0.24)
18 (0.71)
9.5 (0.37)
5.3 (0.21)
2 3
1
Figure 16: Operating and status indicators
