WTB26 x-xxxxxx3 xAxx with teach-in button:
The sensing range is adjusted by pressing the teach-in button (approx. 1-3 sec.). We recom‐
mend placing the sensing range in the object, e.g. see figure 9. Once the sensing range
has been adjusted, the object is removed from the path of the beam, which causes the
background to be suppressed and the switching output to change (see table 2, table 7,
table 3).
1...3 sec.
1
2

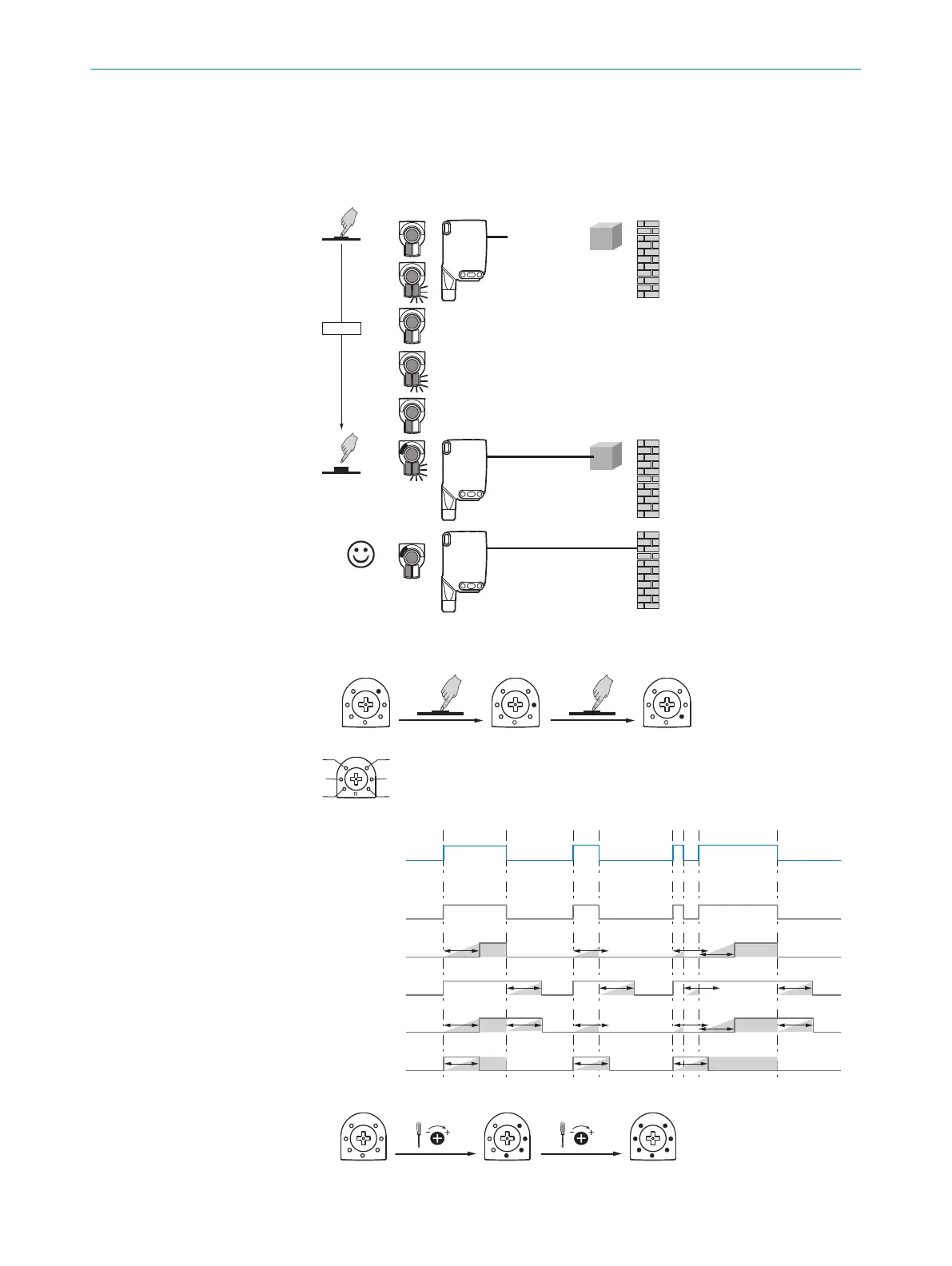

Figure 9: WTB26 x-xxxxxx3 xAxx, adjusting the sensing range with teach-in button
4 Time function setting
1
0
T1
T2
M
T4
T3
t
t
t t t
t
t t t t
t t t
t
t
t t
Input signal
0
T1
T2
T3
T4
M = Manual (specific setting via IO-Link)
1 ms 30.000 ms
2
COMMISSIONING 7
