SP 75 Ti / SP 95 Ti / SP 125 Ti 2.5.1- 2007
Schaltplan - Übersicht

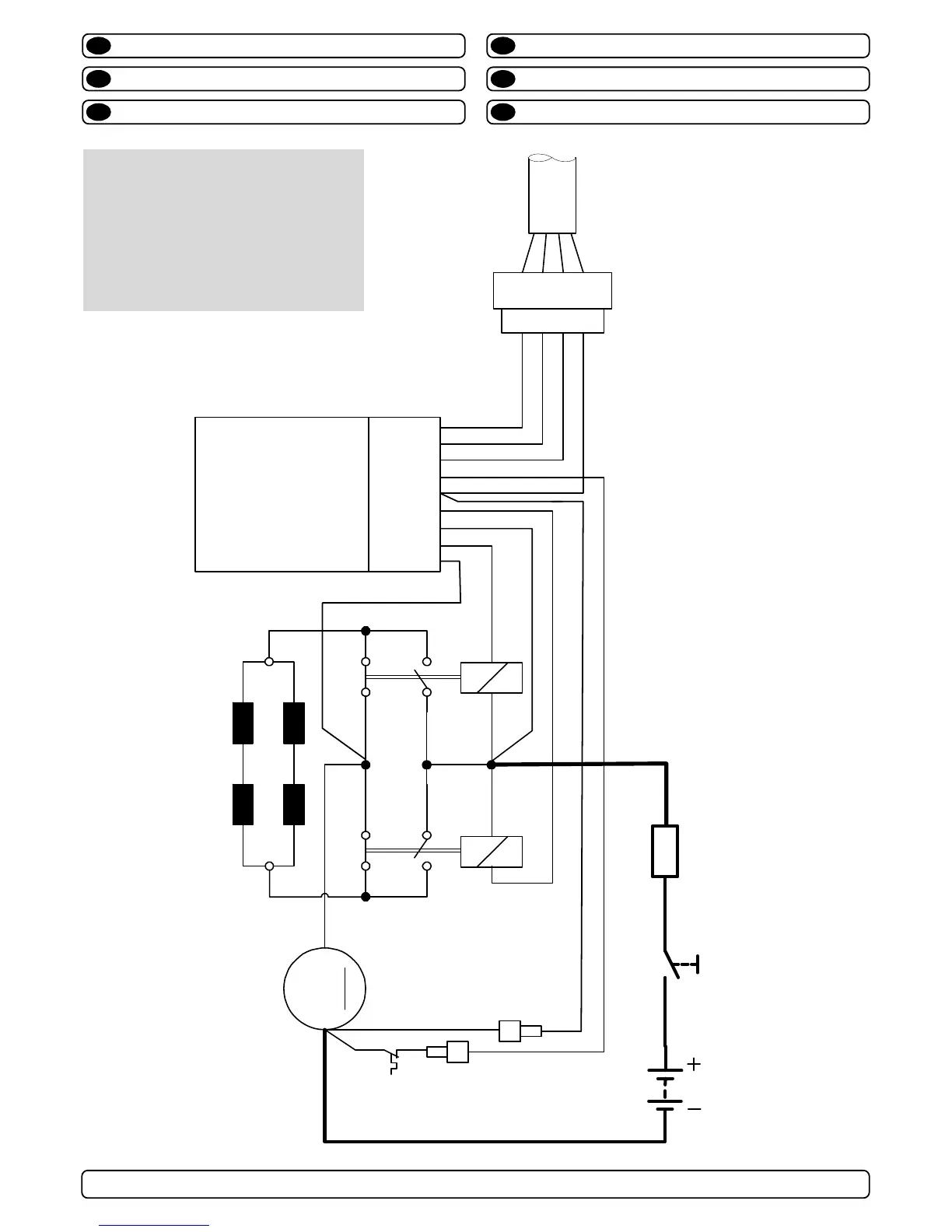

"Visual" wiring diagram
GB
D
Schema di connessione visivo
I
Schéma visuel de branchement
F
Visualinen kytkentäkaava
FI
Koblingsskjema elektrisk
N
A2A1
Fuse
9681245
red
grey
blue
black
grey
blue
brown
red
6 1232i
Electronic
control box
Thermal
switch
Battery
12V
or
24V
Battery
main
switch
M
4 3 2 1
3
red
red
black
7
white
NB! Make sure to not use
any electronic interface
box (delay box) older than
the 6 1232i (ex. 6 122x)
on SP75Ti, SP95Ti, and
SP125Ti.
