Side-Power SP 75 Ti - Page 52

52

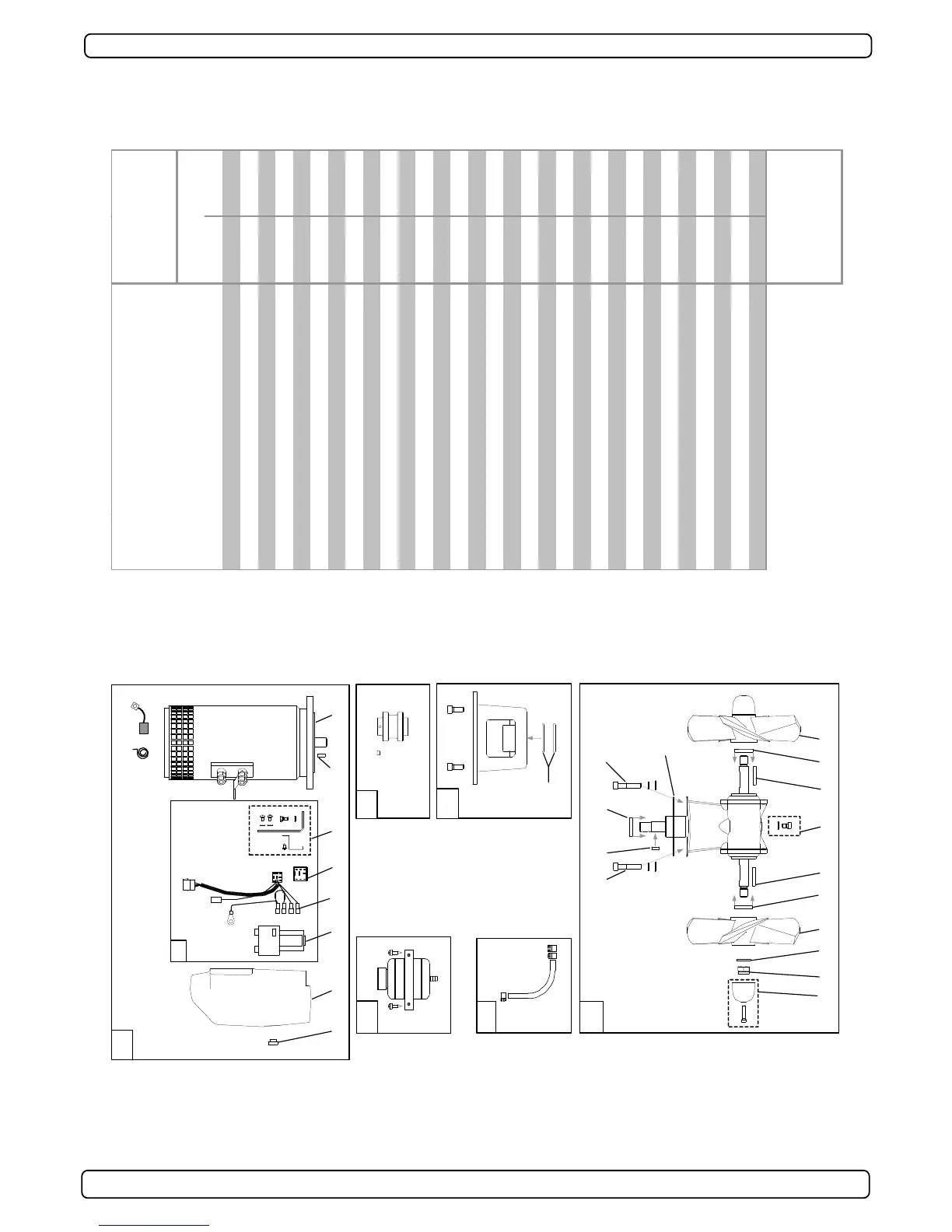

SP 75 Ti / SP 95 Ti / SP 125 Ti 2.5.1- 2007
SP 125 Ti
18
Gear oil EP 90
16
15
14
13
12
1
3
2
8
45
6
2
8 1
11 11
10
9
7
30
27
22
20
19
21
232425262829
Ref: 12V 24V
30. Complete electric motor assembly
9 0101 12 9 0101 24
29.
Nut for solenoid cover 6 8810 6 8810
28.
Solenoid cover 9 2026 9 2025
27.
Complete solenoid kit 9 0131 12 10 0131 24
26.
Solenoid 1013693 41371243
25.
Internal w iring loom 15 1273B 6 1226B
24.
Electronic control box 6 1232i 6 1232i
23.
Solenoid bracket kit 9 0135 12 10 0140 24
22.
Key for electric motor shaft 10 1440 10 1440
21.
Electric motor N/A N/A
20.
Brush springs for electric motor (kit) 9 0170 12* 9 0170 24*
19.
Brushes for electric motor (kit) 9 0180 12* 9 0180 24*
18. Complete flexible coupling
7 1464 7 1464
17
.
Rubb
er element NA NA
16. Oil container w ith holder
20 0300 20 0300
15. Oil hose w ith hose clam ps
20 0400 20 0400
14. Complete motor bracket
10 0500 10 0500
13.
O-ring seals in motor bracket 10 1340 10 1340
12. Complete gearleg
9 0600 9 0600
11.
Gearleg bolt 10 1080 10 1080
10.
Drive shaft key 10 1440 10 1440
9.
Drive shaft seal 20 1351 20 1351
8.
Propeller shaft seal 20 1350 20 1350
7.
Gasket 9 0610 9 0610
6.
Oil drain screw w ith gasket 10 1220 10 1220
5.
Zinc anode 20 1180 20 1180
4.
Locknut 10 1260 10 1260
3.
Propeller w asher 20 1181 20 1181
2.
Propeller key 10 1241 10 1241
1.
Propeller 10 1270 RH 10 1270 RH
*
Other comments:
Please provide thruster serial number w hen ordering brushes and brush springs.
Part #
Original model Model period
SP 125 Ti
05/07 <
