Units with double-sided display

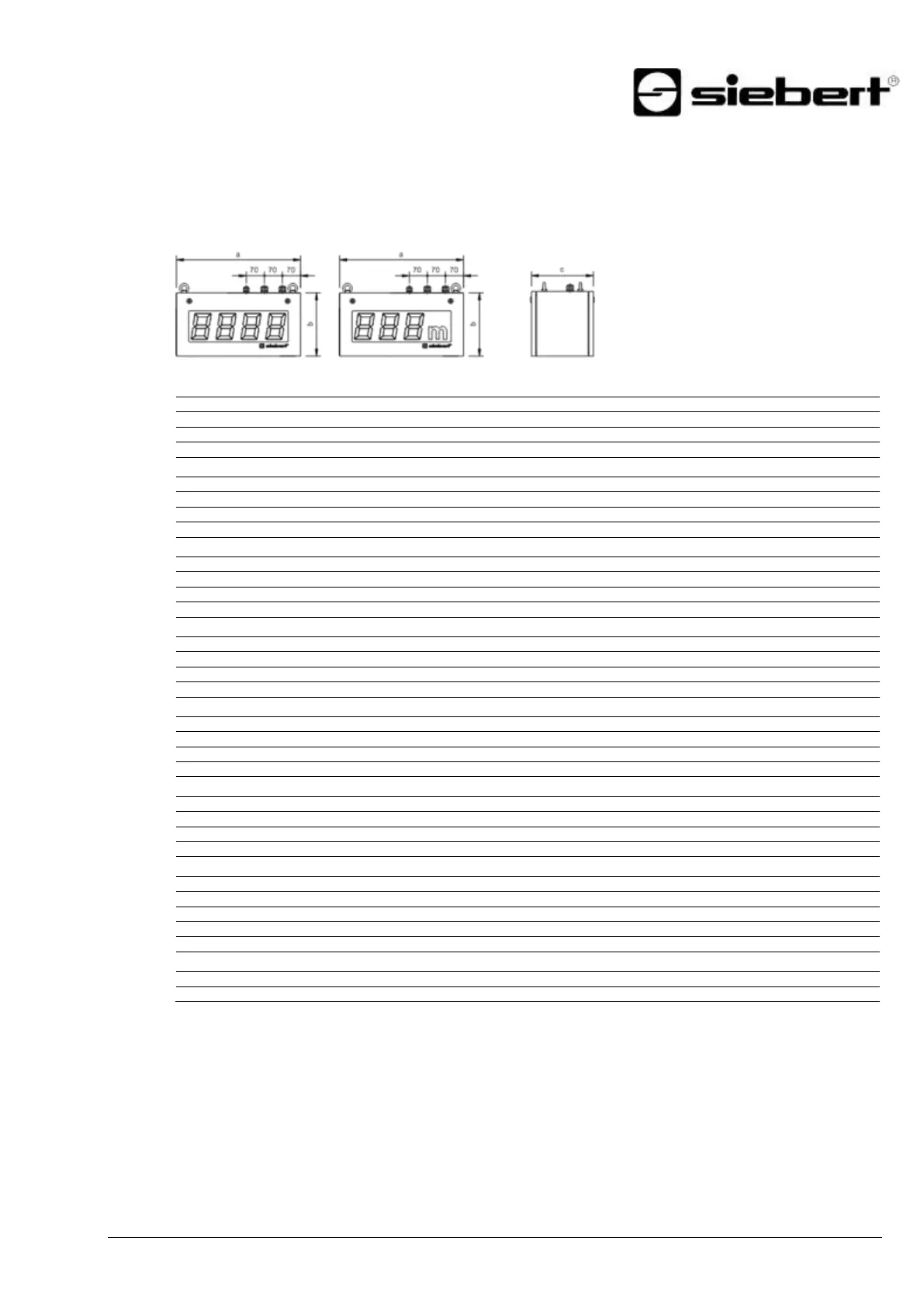

The following figure shows unit versions S302-04/10/4x-2xx/xx-xx
and S302-F3/10/4x-2xx/xx-xx representing the other unit versions listed in the following table.
Units with 57mm character height (S302-xx/06/xx-2xx/xx-xx) have 2 instead of 4 eyelets.
1 digit
a [mm]
b [mm]
c [mm]
Weight [kg]
1)
S302-01/10/xx-2xx/xx-xx
330
245
170
9
S302-01/16/xx-2xx/xx-xx
390
300
170
11
S302-01/25/xx-2xx/xx-xx
570
400
170
17
2 digits
1 digit + dimension
S302-02/06/xx-2xx/xx-xx
-
300
185
170
7
S302-02/10/xx-2xx/xx-xx
S302-F1/10/xx-2xx/xx-xx
330
245
170
9
S302-02/16/xx-2xx/xx-xx
S302-F1/16/xx-2xx/xx-xx
390
300
170
11
S302-02/25/xx-2xx/xx-xx
S302-F1/25/xx-2xx/xx-xx
570
400
170
17
3 digits
2 digits + dimension
S302-03/06/xx-2xx/xx-xx
S302-F2/06/xx-2xx/xx-xx
300
185
170
7
S302-03/10/xx-2xx/xx-xx
S302-F2/10/xx-2xx/xx-xx
480
245
170
12
S302-03/16/xx-2xx/xx-xx
S302-F2/16/xx-2xx/xx-xx
670
300
170
17
S302-03/25/xx-2xx/xx-xx
S302-F2/25/xx-2xx/xx-xx
1030
400
170
27
4 digits
3 digits + dimension
S302-04/06/xx-2xx/xx-xx
S302-F3/06/xx-2xx/xx-xx
300
185
170
7
S302-04/10/xx-2xx/xx-xx
S302-F3/10/xx-2xx/xx-xx
480
245
170
12
S302-04/16/xx-2xx/xx-xx
S302-F3/16/xx-2xx/xx-xx
670
300
170
17
S302-04/25/xx-2xx/xx-xx
S302-F3/25/xx-2xx/xx-xx
1030
400
170
27
5 digits
4 digits + dimension
S302-05/06/xx-2xx/xx-xx
S302-F4/06/xx-2xx/xx-xx
400
185
170
8
S302-05/10/xx-2xx/xx-xx
S302-F4/10/xx-2xx/xx-xx
680
245
170
15
S302-05/16/xx-2xx/xx-xx
S302-F4/16/xx-2xx/xx-xx
960
300
170
21
S302-05/25/xx-2xx/xx-xx
S302-F4/25/xx-2xx/xx-xx
1500
400
170
36
6 digits
5 digits + dimension
S302-06/06/xx-2xx/xx-xx
S302-F5/06/xx-2xx/xx-xx
400
185
170
8
S302-06/10/xx-2xx/xx-xx
S302-F5/10/xx-2xx/xx-xx
680
245
170
15
S302-06/16/xx-2xx/xx-xx
S302-F5/16/xx-2xx/xx-xx
960
300
170
21
S302-06/25/xx-2xx/xx-xx
S302-F5/25/xx-2xx/xx-xx
1500
400
170
36
7 digits
6 digits + dimension
-
S302-F6/03/xx-2xx/xx-xx
300
185
170
7
S302-07/06/xx-2xx/xx-xx
S302-F6/06/xx-2xx/xx-xx
510
185
170
9
S302-07/10/xx-2xx/xx-xx
S302-F6/10/xx-2xx/xx-xx
870
245
170
18
S302-07/16/xx-2xx/xx-xx
S302-F6/16/xx-2xx/xx-xx
1100
300
170
24
S302-07/25/xx-2xx/xx-xx
S302-F6/25/xx-2xx/xx-xx
1730
400
170
42
8 digits
7 digits + dimension
S302-08/06/xx-2xx/xx-xx
S302-F7/06/xx-2xx/xx-xx
510
185
170
9
S302-08/10/xx-2xx/xx-xx
S302-F7/10/xx-2xx/xx-xx
870
245
170
18
1)
The figures shown are approximate values.
