4.2 FCO102 - Single Loop Controller w/ Fixed Setpoint

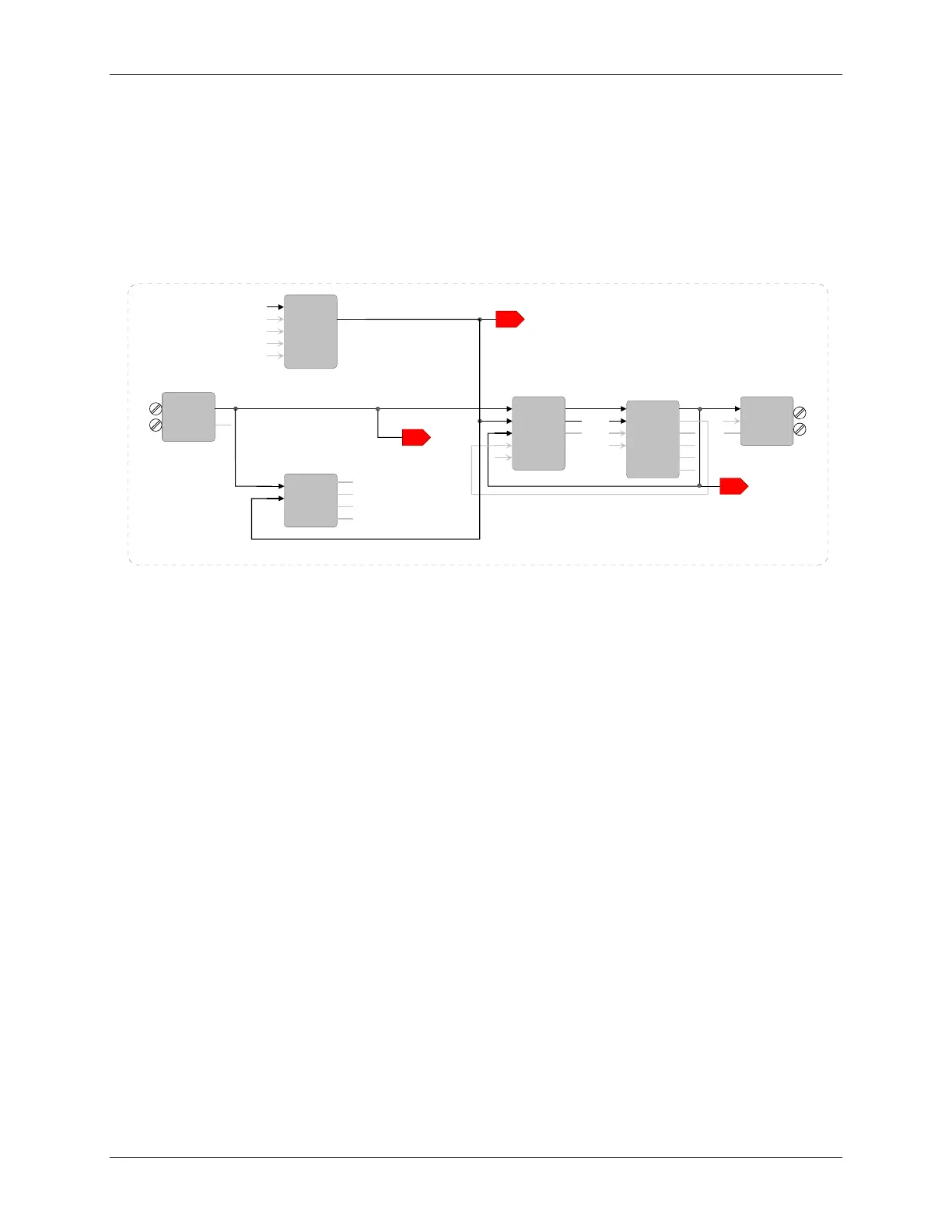

Factory Configured Option FCO102 provides a single loop controller configured in Loop01. A block diagram of
the loop configuration is shown below along with any changes to the default parameter values of the configured
blocks. If the loop tag ‘Loop01’ is changed, all configured references within the station will automatically be
changed to the new tag.
SETPT
TV
TC
O1
AIN1
QS
O1
AOUT1
QS
ALARM
A1
A2
A3
A4
A/M
O1
AS
NA
MS
ES
SS
PID
O1
AE
AW
SR
P
D
A
TV
TC
EM
S
D
P
S
F
A
I
LU
LD
Valve
Process
S
P
V
.
.
LOOP01
A/M - Auto/Manual Function Block
RG PTR - Range Pointer ------------ Loop01.PID.OR
INPUT A - Input A ------------------ Loop01.PID.O1
ESN - Exec. Seq. No. ---------------- 20
AOUT1 - Analog Output 1 Function Block
RG PTR - Range Pointer ------------ Loop01.PID.OR
INPUT S - Input S ------------------- Loop01.A/M.O1
ODC - Operator Display for Controllers
P RG PTR - P Range Pointer ------- Loop01.AIN1.OR
V RG PTR - V Range Pointer ------ Loop01.PID.OR
INPUT P - Input P (Process) ------- Loop01.AIN1.O1
INPUT S - Input S (Setpoint) ------ Loop01.SETPT.O1
INPUT V - Input V (Valve) -------- Loop01.A/M.O1
LOOP # - Loop # ------- 01
SETPT - Setpoint Function Block
RG PTR - Range Pointer ----------- Loop01.AIN1.OR
ESN - Exec. Seq. No.--------------- 5
ALARM - Alarm Function Block
RG PTR - Range Pointer ---------- Loop01.AIN1.OR
INPUT P - Input P ----------------- Loop01.AIN1.O1
INPUT D - Input D ---------------- Loop01.SETPT.O1
ESN - Exec. Seq. No. ------------- 10
PID - PID Controller Function Block
RG PTR - Range Pointer ---------- Loop01.AIN1.OR
INPUT P - Input P ----------------- Loop01.AIN1.O1
INPUT S - Input S ----------------- Loop01.SETPT.O1
INPUT F - Input F ----------------- Loop01.A/M.O1
INPUT A - Input A ---------------- Loop01.A/M.AS
ESN - Exec. Seq. No.-------------- 15
