UM353-1B Maintenance
April 2012
10-5

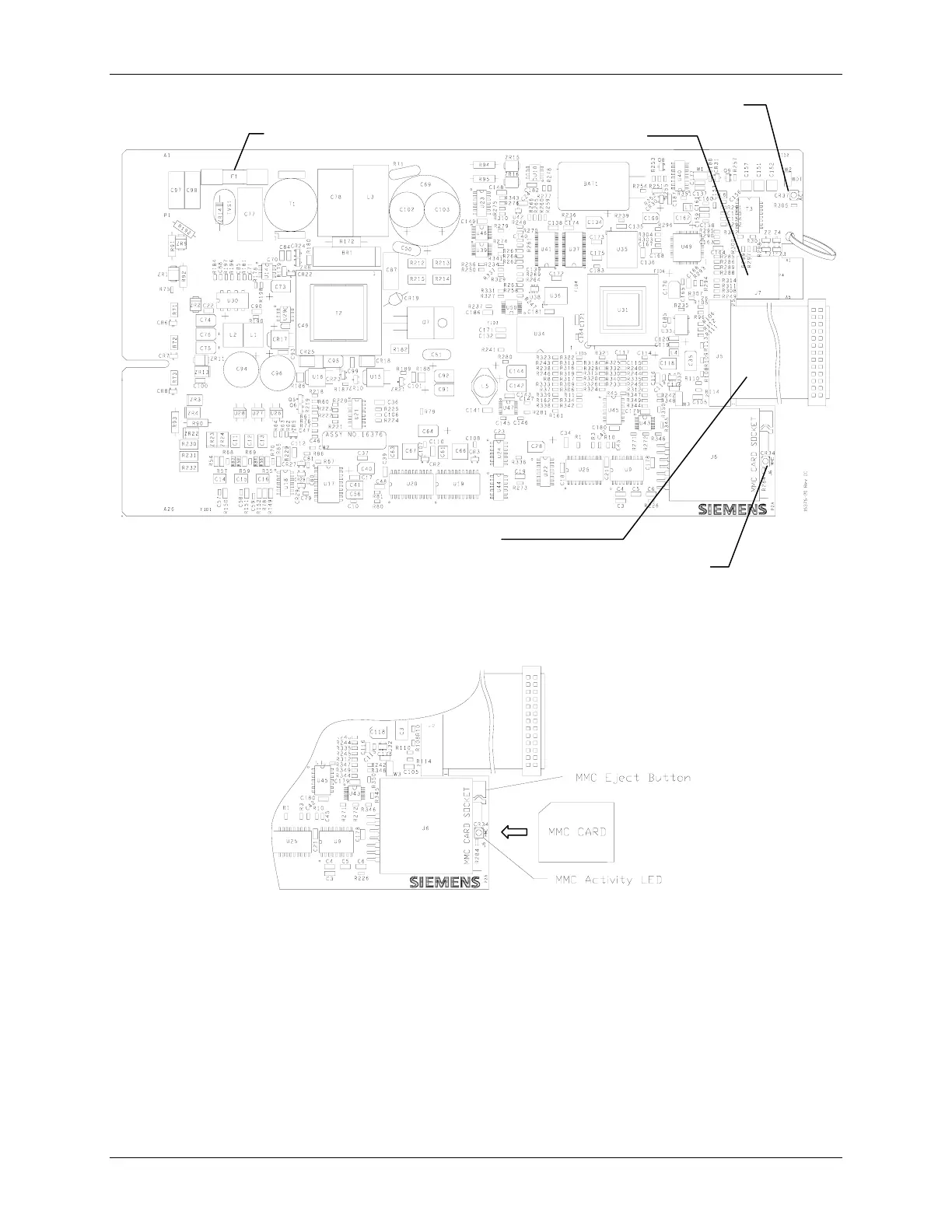

Figure 10-2 MPU Controller Board
Figure 10-3 MultiMediaCard (MMC), Inserting and Ejecting
MMC Activity LED
Ethernet Activity LED
Fuse
Ethernet Connector
Display Cable
