3 Description
The effect of the closing spring turns the charging shaft 18.14 (Fig. 12). The roller 18.7.1 of the lever 18.7 moves
along the cam 18.6 and transmits the movement to the operating shaft 18.22. The movement is then transmitted
by the lever 18.24 (fixed to the operating shaft 18.22) and the operating mechanism rod 18.27.1 to the interrupter
unit 22. The contacts of the interrupter unit 22 are closed.
18.11 Opening spring
18.14 Charging shaft
18.22 Operating shaft
18.24 Operating lever
18.27 Connecting rod (for opening spring)
18.27.1 Driving rod
18.6 Cam disc
18.7 Lever
18.7.1 Roller
18.9 Opening latch
18.9.1 Supporting latch
22 Interrupter unit

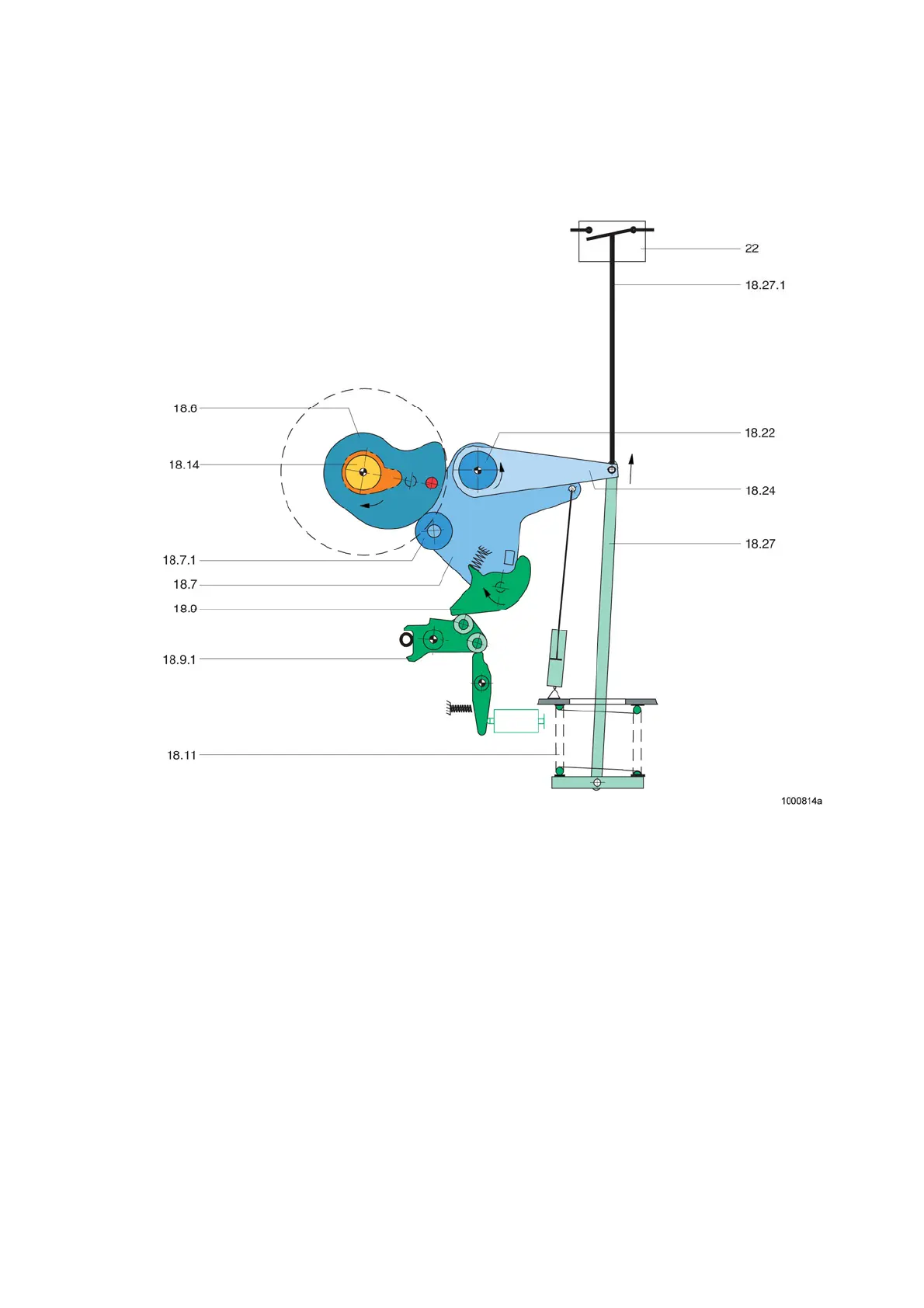

Fig. 12 Function diagram of closing and opening latching:
Closing
27
