4 Installation
1
Lifting plate
22 Interrupter
unit

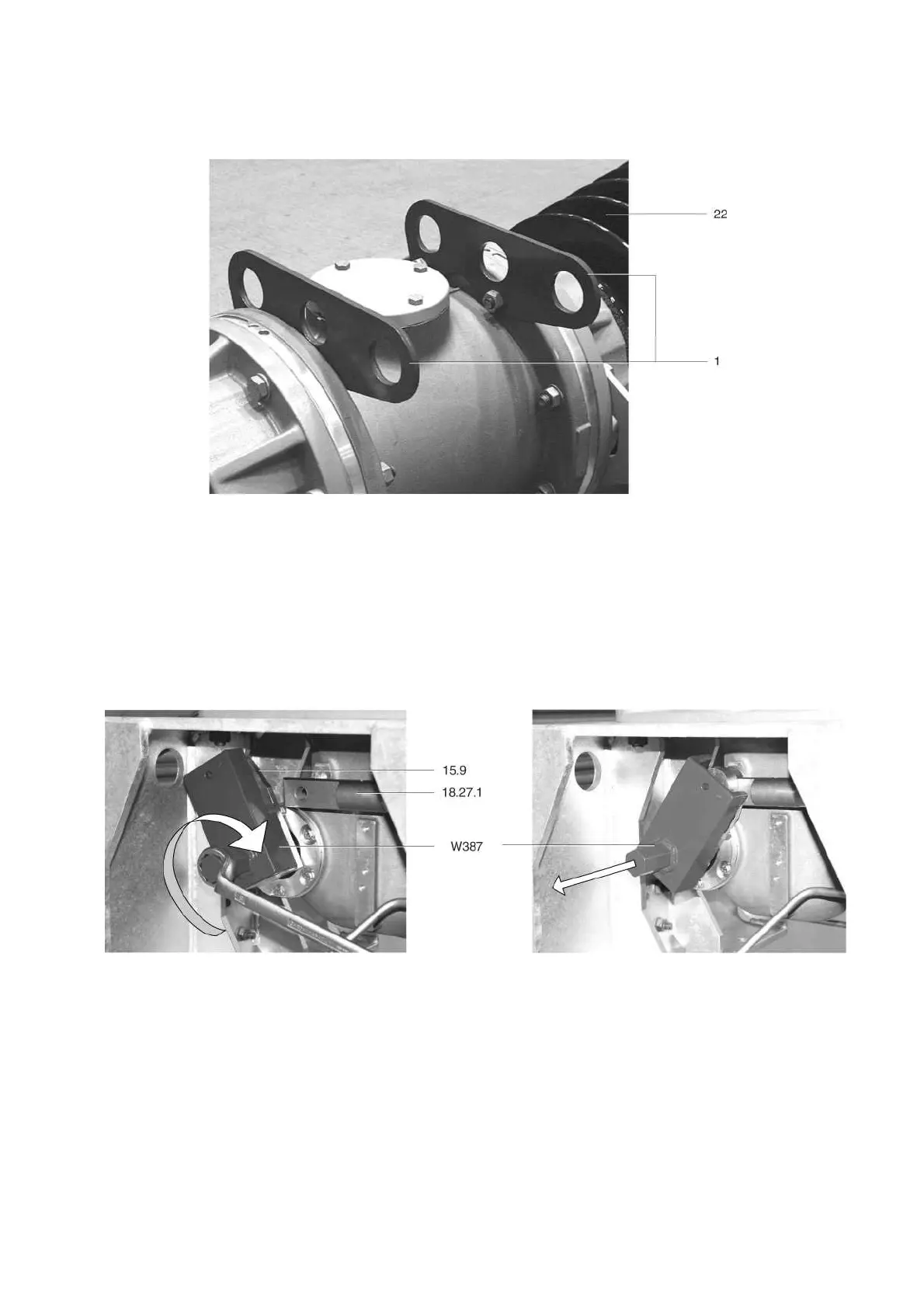

Fig. 47
Lifting plate arrangement
4.5.10
Coupling the Operating Mechanism
Using the manual
actuator supplied, the lever 15.9
is moved in such a
way that it can be co
nnected to the bolt
10.9. The bolt remains in operating po
sition.
W387
Manual operating device W387
15.9 Lever
18.27.1 Driving
rod
Fig. 48
Manual operating device W387
65
65
67
