52
4 Installation
4.5.5 Assembly of the Control Cubicle
12 Control cubicle
15.1 Operating mechanism

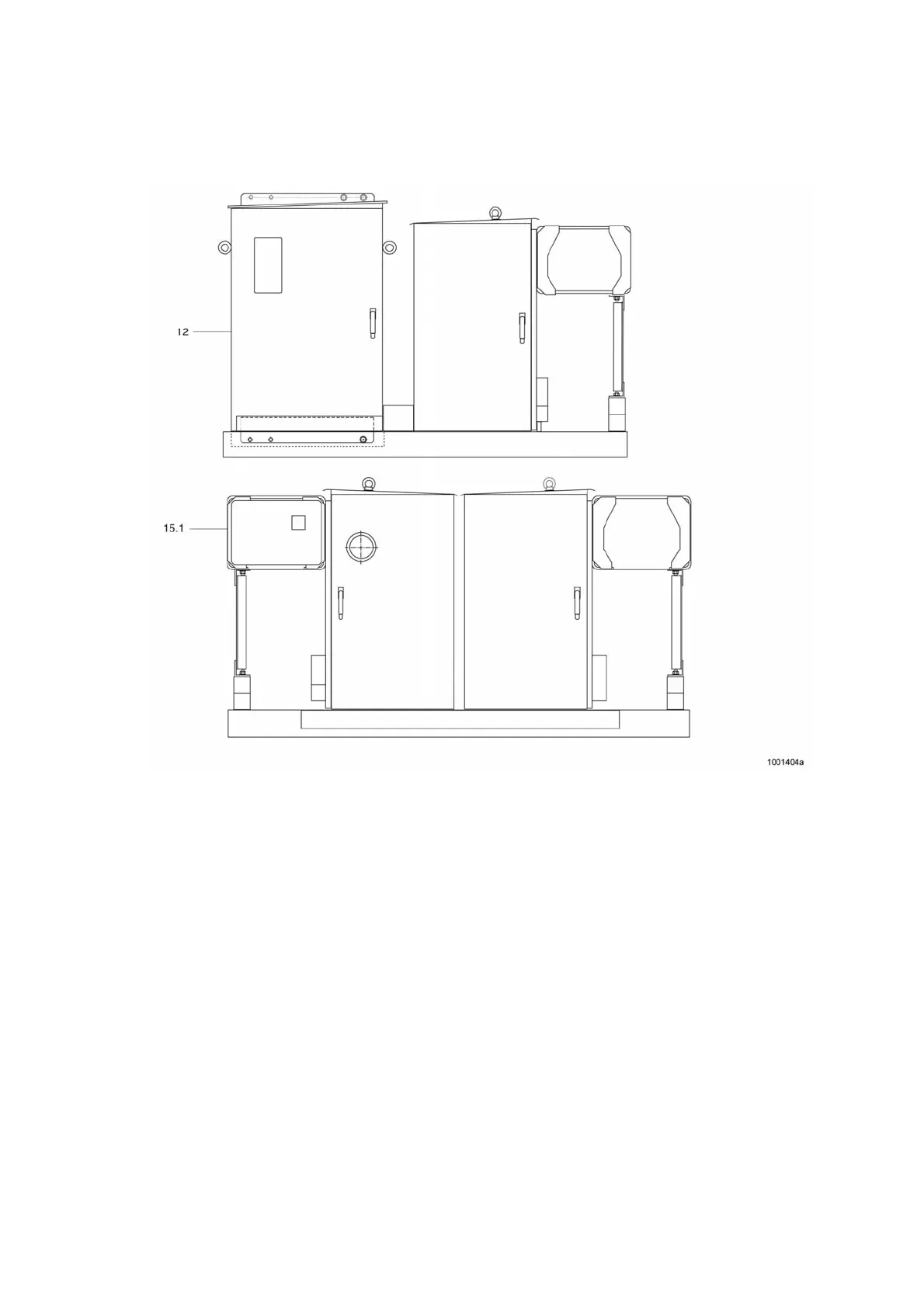

Fig. 30 Control cubicle/operating mechanism transport unit
Insert the crane hook into the lifting eye-bolts of the control cubicle and undo screw joints to the other components
of the transport unit.
Move control cubicle with a crane and bolt in front to the centre pillar (pole B) (4 bolts M 16x60, 4 nuts, 8 washers
from the accessories pack).
The length of the bolts from the accessories pack is suitable for a pillar wall thickness of up to 35 mm
(Fig. 31).
