3 Description
26
18.14 Charging shaft
18.2 Charging gear
18.20 Cam
18.3 Free-wheel

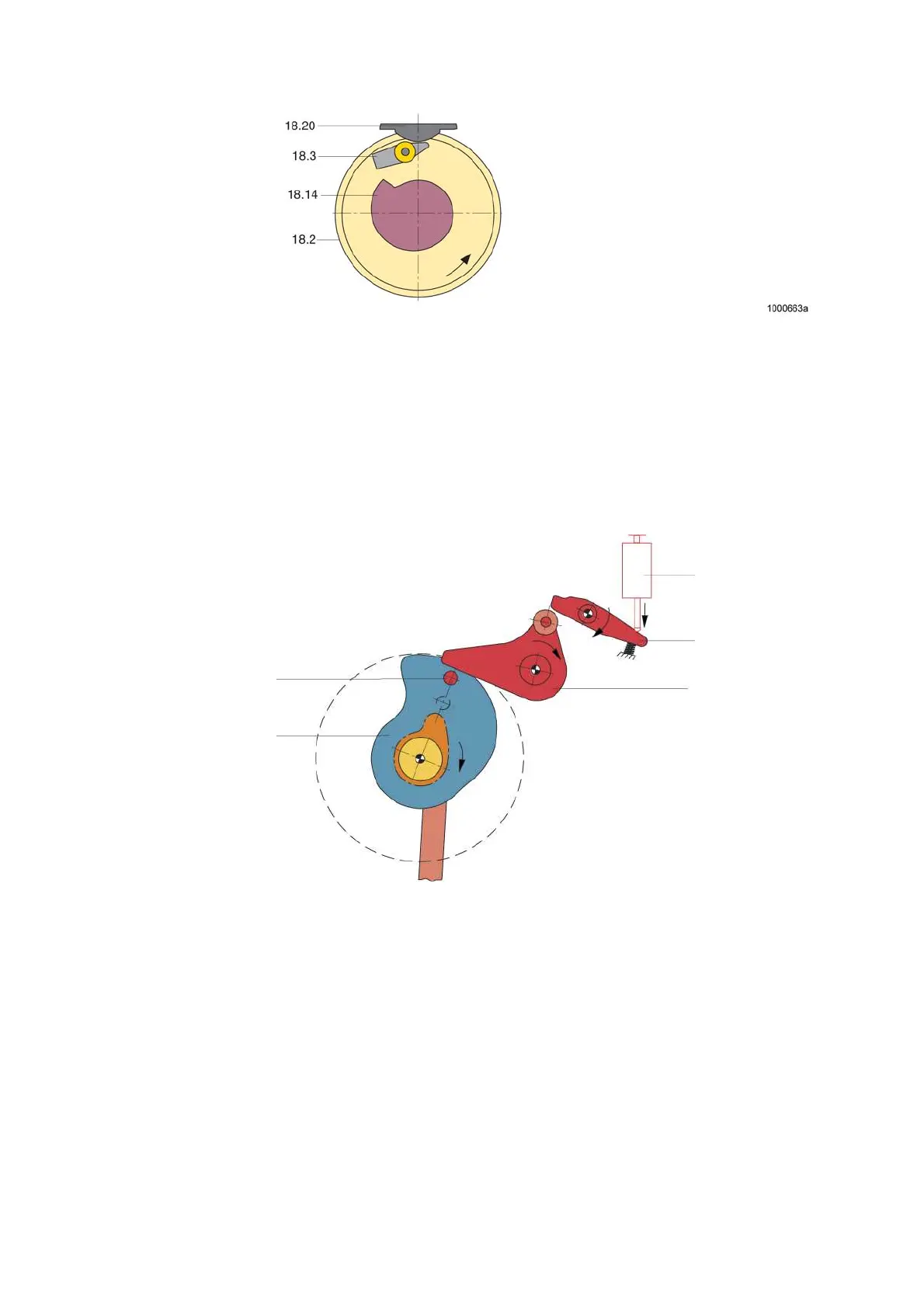

Fig. 10 Function of the free-wheel: Uncoupling the charging
gear
3.7.2 Closing
Actuating CLOSE tripping coil 18.16 releases cam disk 18.6 via CLOSE latch 18.17 and supporting lever 18.17.1
(Fig. 11).
18.16
18.17.1
18.23
18.17
18.6
1000813a
18.16 Release CLOSE
18.17 Closing latch
18.17.1 Support lever
18.23 Roller
18.6 Cam disc
Fig. 11 Function diagram of closing and opening latching:
Disenagement of the closing latch
