4 Installation
BM 16x55
BM 16x55
BM 16x55
B The M16x55 screw is not replaced.

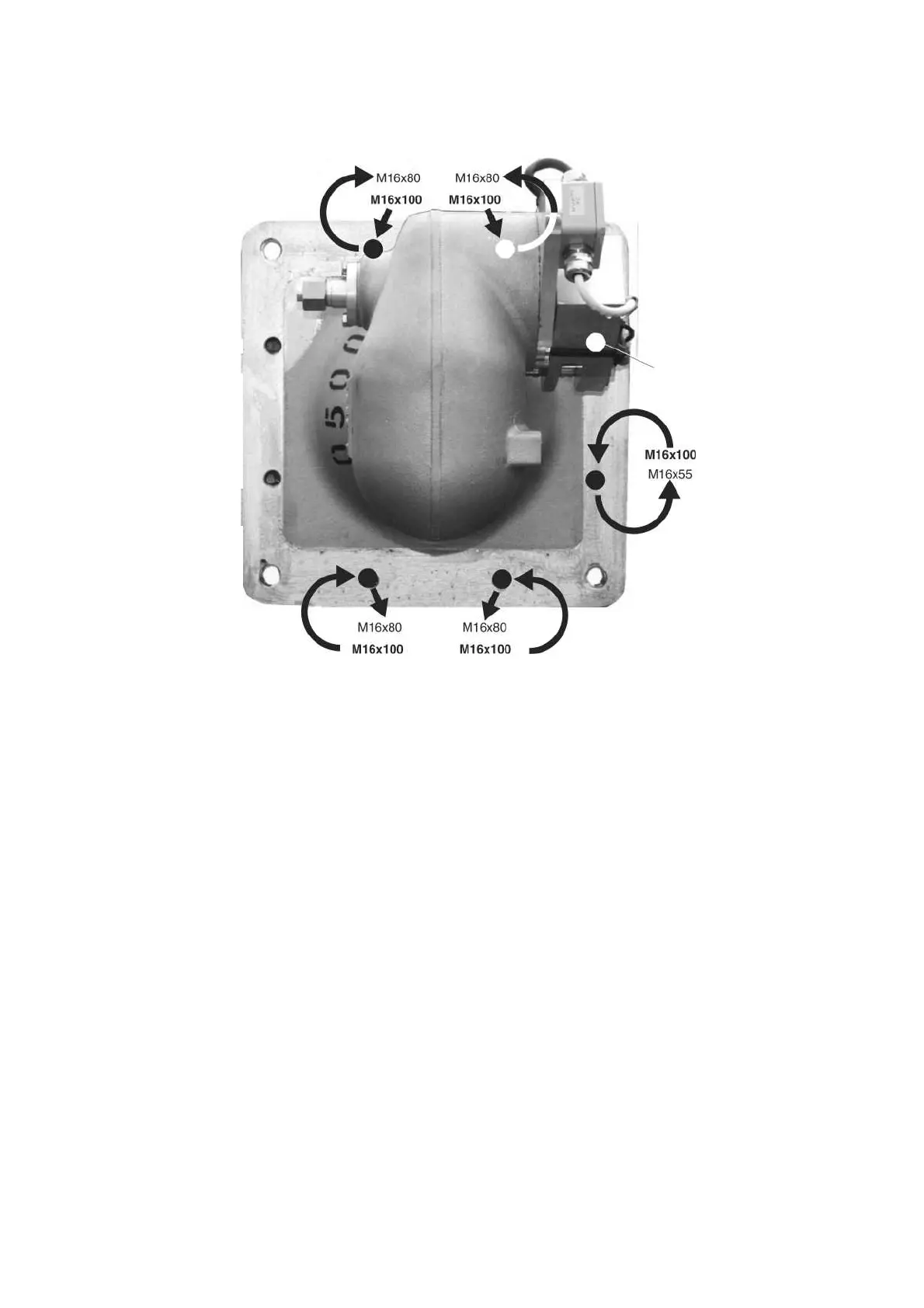

Fig. 29 Screw distribution for insulator column assembly.
The screws are then tightened to 170 Nm.
51
