3 Description
A Edge to be evaluated at CLOSE
B Edge to be evaluated at OPEN

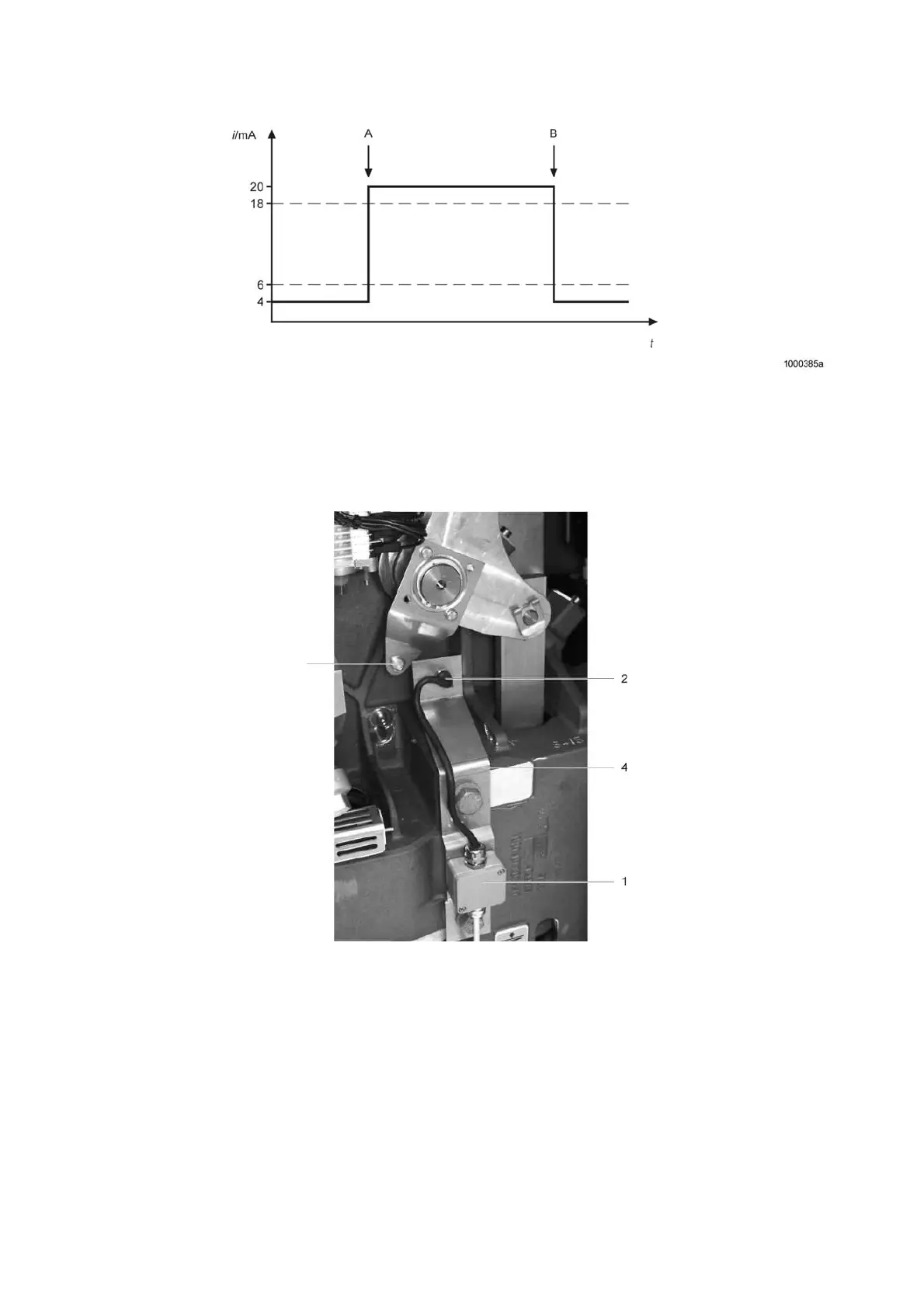

Fig. 24 Output signal of the IK-3
The IK-3 is designed as a two-wire system in which the output signal is transmitted by a current loop.
3
1 Sensor electronics
2 Sensor HE-6103
3 Magnet HE-6104
4 Fastening plate
Fig. 25 Reference contact
The reference contact is set at the factory.
The air gap between the sensor and the magnet must be 2 ... 4 mm.
39
