LOGO! Manual
A5E00067781 01
44
Select the Co list: Press OK
1

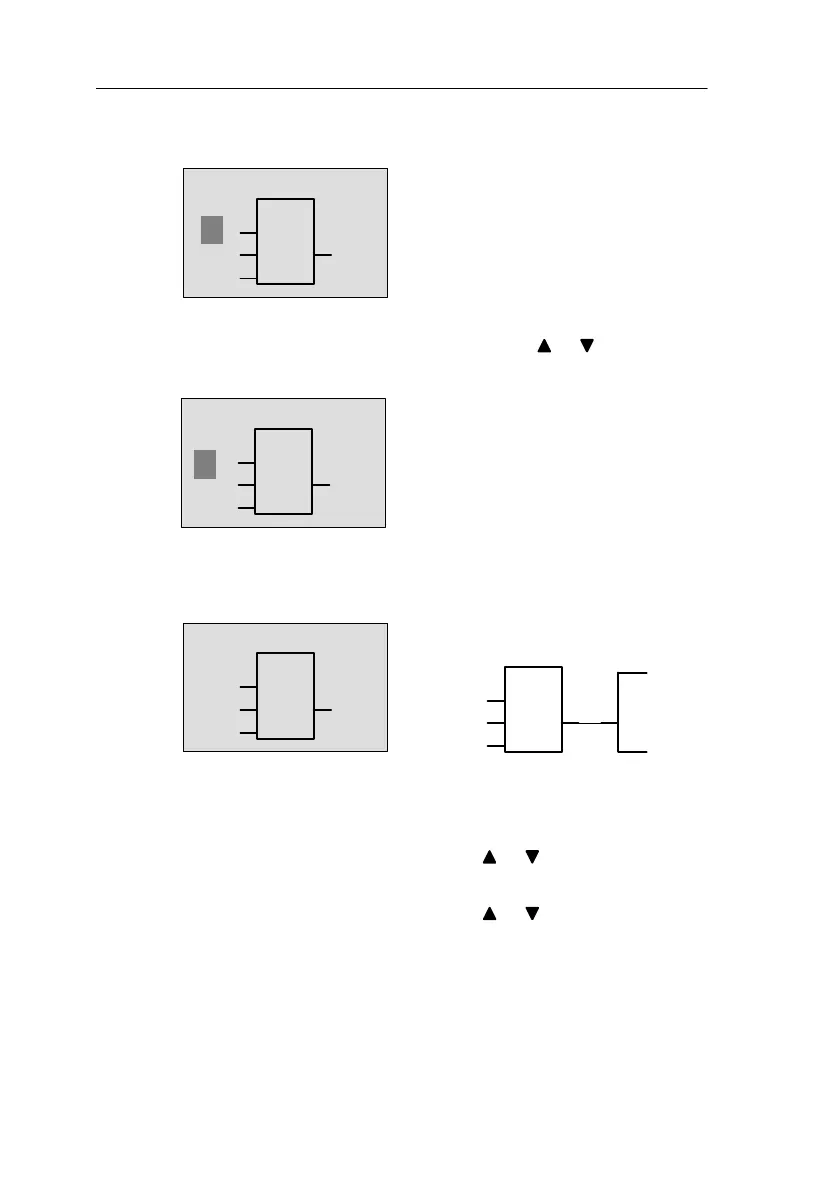

The following appears in the display panel
B01
Q1
x
The first item in the Co list is the character for indicating
that the input is not use, an ”x”. Use the or key to se-
lect input I1.
1
Q1
I1
B01
Press OK: I1 is connected to the input of the OR block.
The cursor jumps to the next input of the OR block.
1
The following appears in the display panel
B01
Q1
1
Q1
Your entire program so far
looks like this in LOGO!
I1
I1
B01
–
Now connect input I2 to the input of the OR block. You
know how to do this already:
1. Switch to input mode: OK
2. Select the Co list: keys or
3. Accept the Co list: OK
4. Select I2: keys or
5. Accept I2: OK
Thus, I2 is now connected to the input of the OR block:
Pro
rammin
LOGO!
