What does ”LOGO! is in RUN?” mean?
In RUN, LOGO! executes the program. First of all it reads
the states of the inputs, uses the program you have speci-
fied to determine the states of the outputs, and switches
the relays at the outputs on or off.
LOGO! represents the state of an input or output as fol-
lows:
Input/output has the state ’1’:
inverse
Input/output has the state
’0’: not inverse
Mo 09:00
I:12345678
9 10 11 12
I:123456
Mo 09:00
Q:1234 RUN
Q:12345678
State display

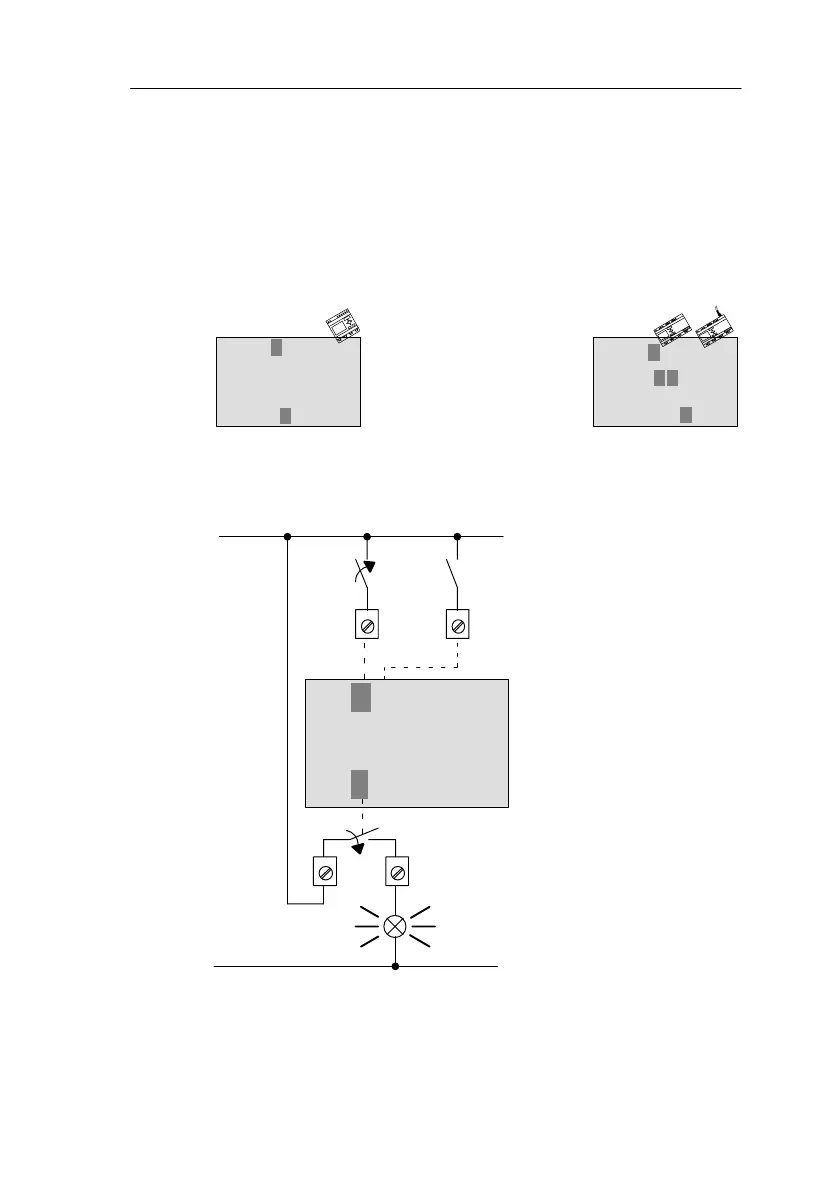

Let’s have a look at that in our example:
I:123456
Mo 09:00
Q:1234 RUN
L1
N
S1 S2
=1
When switch S1 is closed,
voltage is applied to input I1,
which has the state ’1’.
LOGO! calculates the states
of the outputs with the pro-
gram.
Output Q1 has the state ’1’
here.
When Q1 has the state ’1’,
LOGO! operates relay Q1
and the consumer at Q1 is
supplied with voltage.
I1
I2
Q1
Pro
rammin
LOGO!
