But we are going to exit program input now. To do this, pro-
ceed as follows:
1. Return to the programming menu: ESC
If this doesn’t return you to the programming menu, you
have not wired a block completely. LOGO! displays the
point in the program at which you forgot something (LOGO!
only accepts completed programs, which is very much in
your interests). Also refer to page 57.
Note
LOGO! has now stored your program permanently, so that
it will not be lost in the event of a power failure. The pro-
gram is stored in LOGO! until you expressly delete it by
entering the appropriate command.
2. Return to the main menu: ESC
Switching LOGO! to RUN
3. Move ’>’ to ’Start’: keys or
4. Accept Start: OK
LOGO! switches to RUN. In RUN LOGO! displays the fol-
lowing:

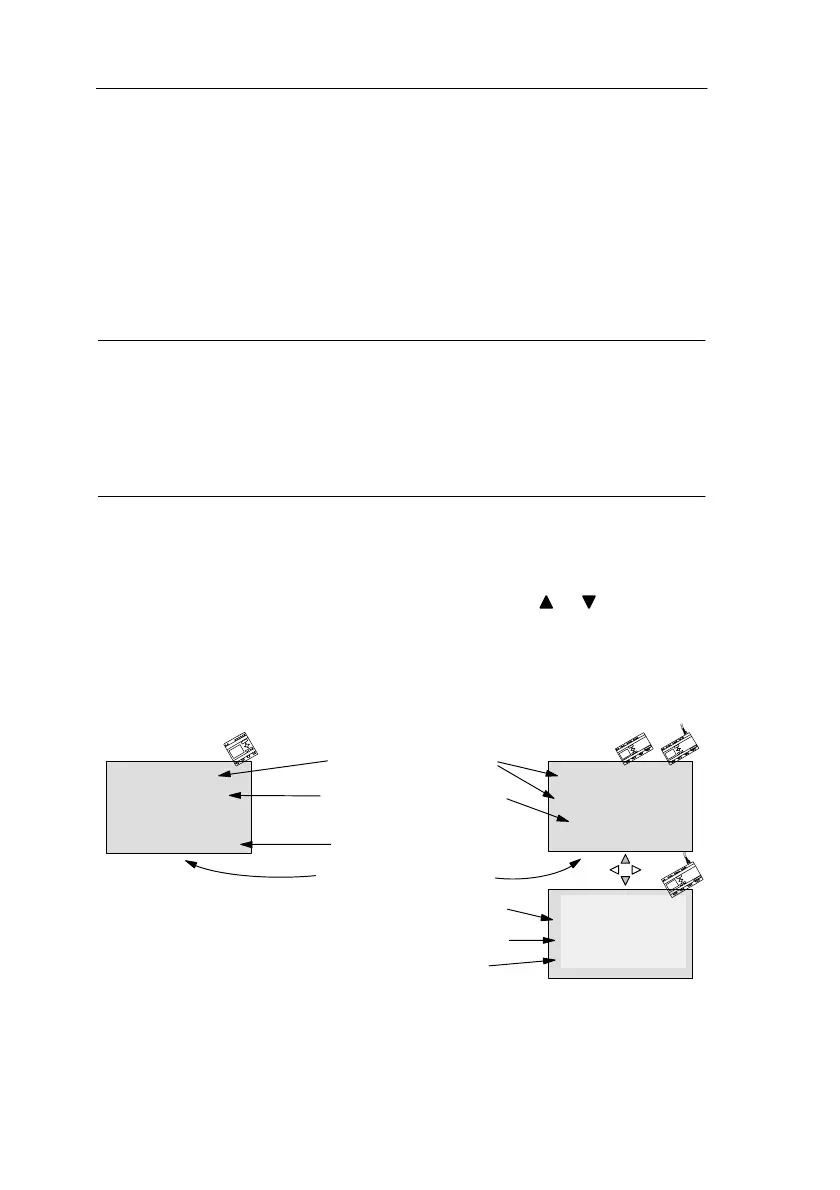

LOGO!’s display panel in RUN
State of the inputs
Current time
(variants with time switch only)
LOGO! is in RUN
State of the outputs
I:123456
Mo 09:00
Q:1234 RUN
I:12345678
Q:12345678
Mo 09:00
9 10 11 12
ASi_Bus
Ia : 1234
Qa : 1234
Bus: On
State of the ASi inputs
State of the ASi outputs
State of the ASi bus
Pro
rammin
LOGO!
To Next Page
