Motor Connections:
Inside Delta Motor Wiring
The motor wiring should be connected exactly as shown in Figure 4. If it is not, the starter will
detect a motor wiring error. If you have elected to cycle the fault contactor on each start, you
must contact technical support for directions on configuring the starter and wiring in a required
off delay timer.

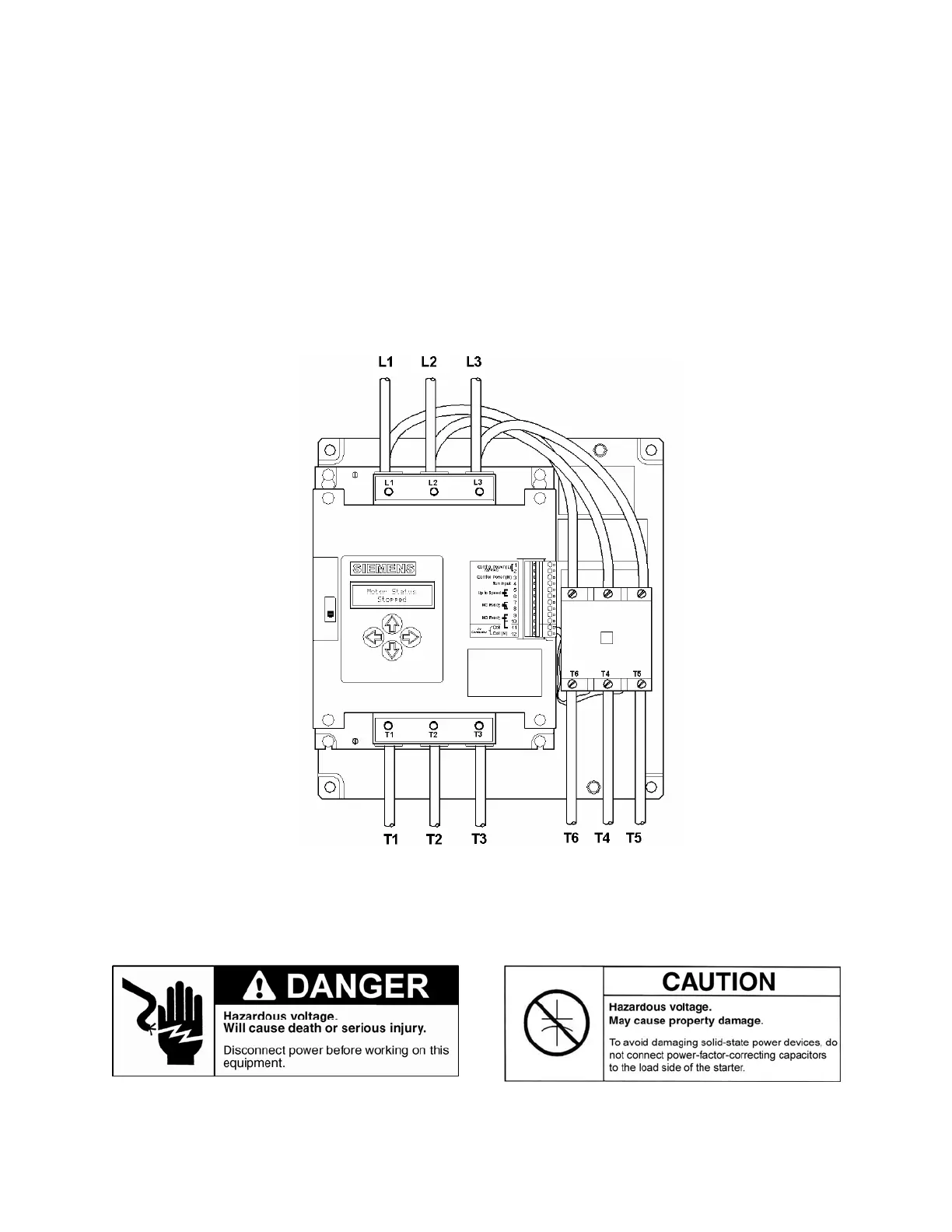

Figure 4: Power Wiring for In-Delta Configuration
