In Line Motor Wiring:
Line Connections Motor Connections

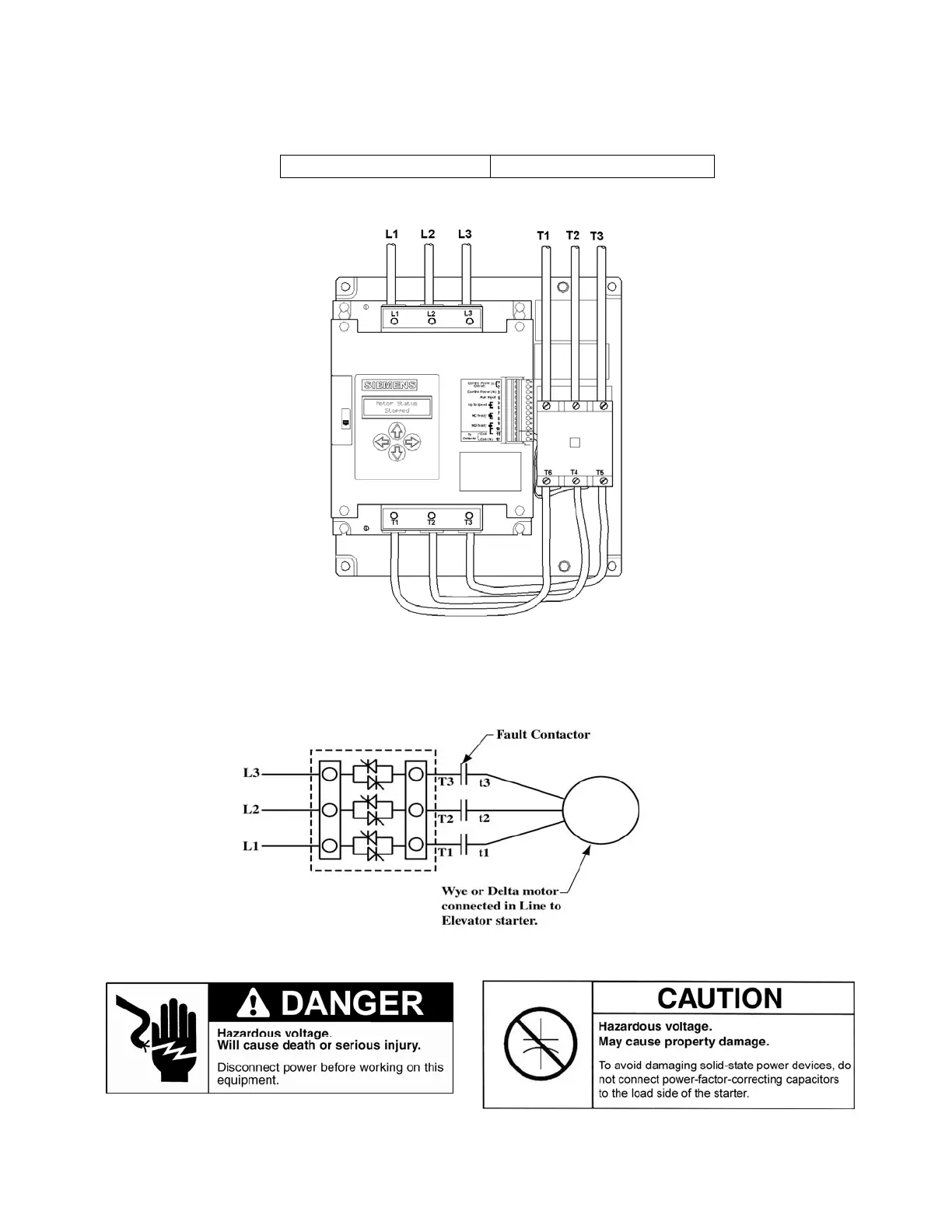

Figure 5: Conversion for In Line Applications
It is up to the end user to reconfigure the leads from the starter to the fault contactor for
In-Line operation
Figure 5a: Motor wiring for in line Applications

Siemens 72G Series Specifications

General

Brand	Siemens
Model	72G Series
Category	Controller
Language	English
