Siemens 9610 - Wiring Communications: Ethernet and Modem; Ethernet Connections (10 Base-T and 10 Base-FL); Internal Modem Connection (COM3)

17

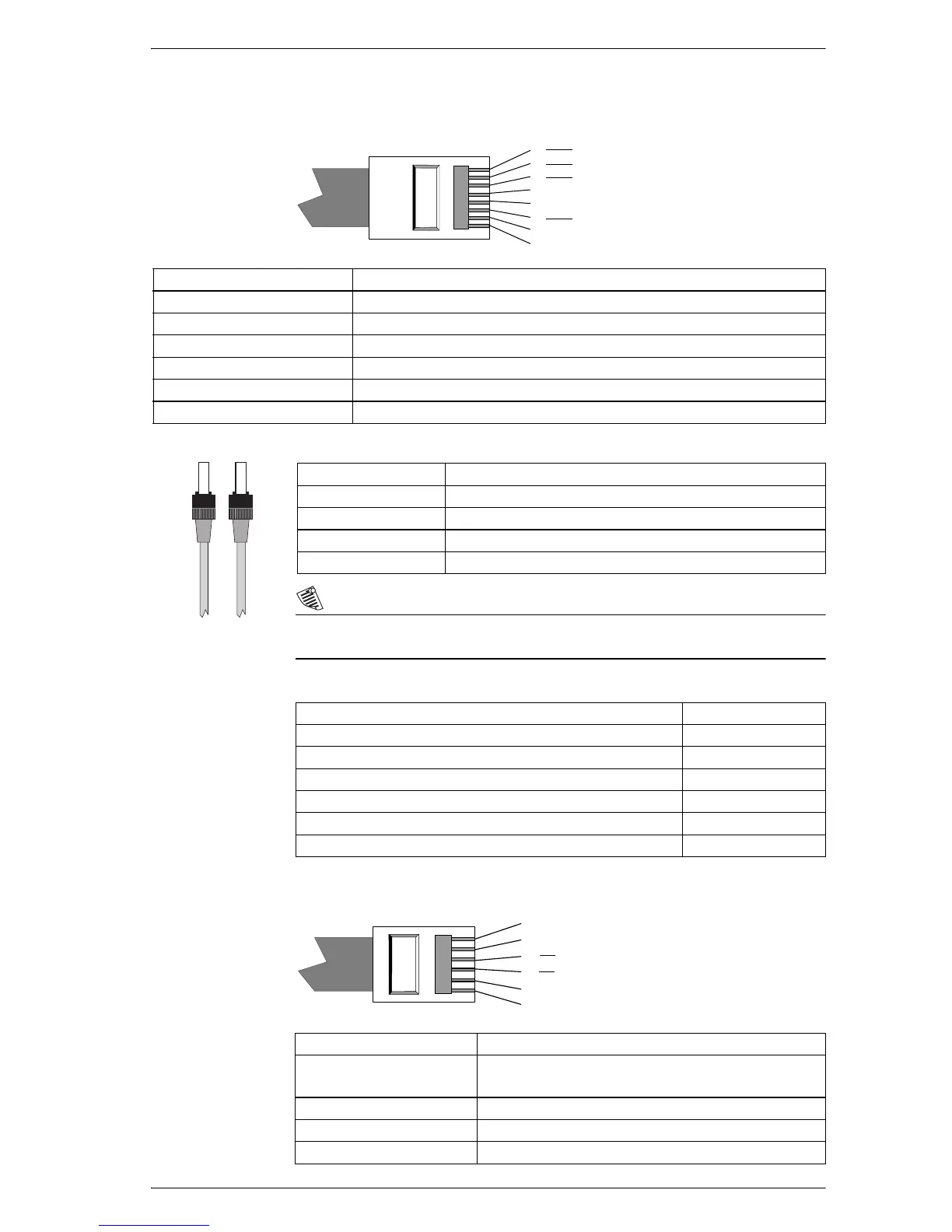

Ethernet Connections (if equipped)
10Base-T
10Base-FL (Fiber)
NOTE
Connecting to the Fiber port automatically disables the RJ45 port.
Ethernet TCP/IP Service Ports
Internal Modem Connection (COM3 if equipped)
Pin 1: Transmit Data +
Pin 2: Transmit Data -
Pin 3: Receive Data -
Pin 6: Receive Data +
12345678
RJ45
Wire Type High quality Category 3 or 5 unshielded twisted pair cable
Connector Type RJ45 modular
Maximum Length 100 m (328 ft)
Type IEEE 802.3 10Base-T for 10 Mbps base band CSMA/CD LANs
Data Rate 10 Mbps
Isolation Transformer isolated to 1500 VAC/2250 VDC RMS
Max. Connections Allowed 4 simultaneous
Wire Type 62.5/125 micrometer multimode fiber optic cable
Connector Type ST
Maximum Length 2000 m (6562 ft)
Data Rate 10 Mbps
Isolation Optical
Protocol Port
ION 7700
Modbus RTU 7701
Modbus TCP 502
EtherGate (COM1) 7801
EtherGate (COM2) 7802
DNP TCP 20,000
ST type fiber cables
Only one EtherGate
connection per port
is allowed at a time
Pin 3: Ring
Pin 4: Tip
RJ11
123456
Connector Type RJ11
Wire Type
FCC Part 68 compliant telephone cord (two male
RJ11 ends)
Data Rate 300 bps – 33.6 kbps
Error Correction V.42 LAPM, MNP 2-4, MNP 10
Data Compression V.42 bis/MNP 5
