6
Before You Begin
Before installing the meter, familiarize yourself with the steps in this guide and
read the safety precautions presented on the “Installation Considerations”
page.
DANGER
Do not power up the meter until the current and voltage wiring is completed.
Recommended Tools
Phillips screwdriver
Precision flat-head screwdriver
Wire cutters / stripper

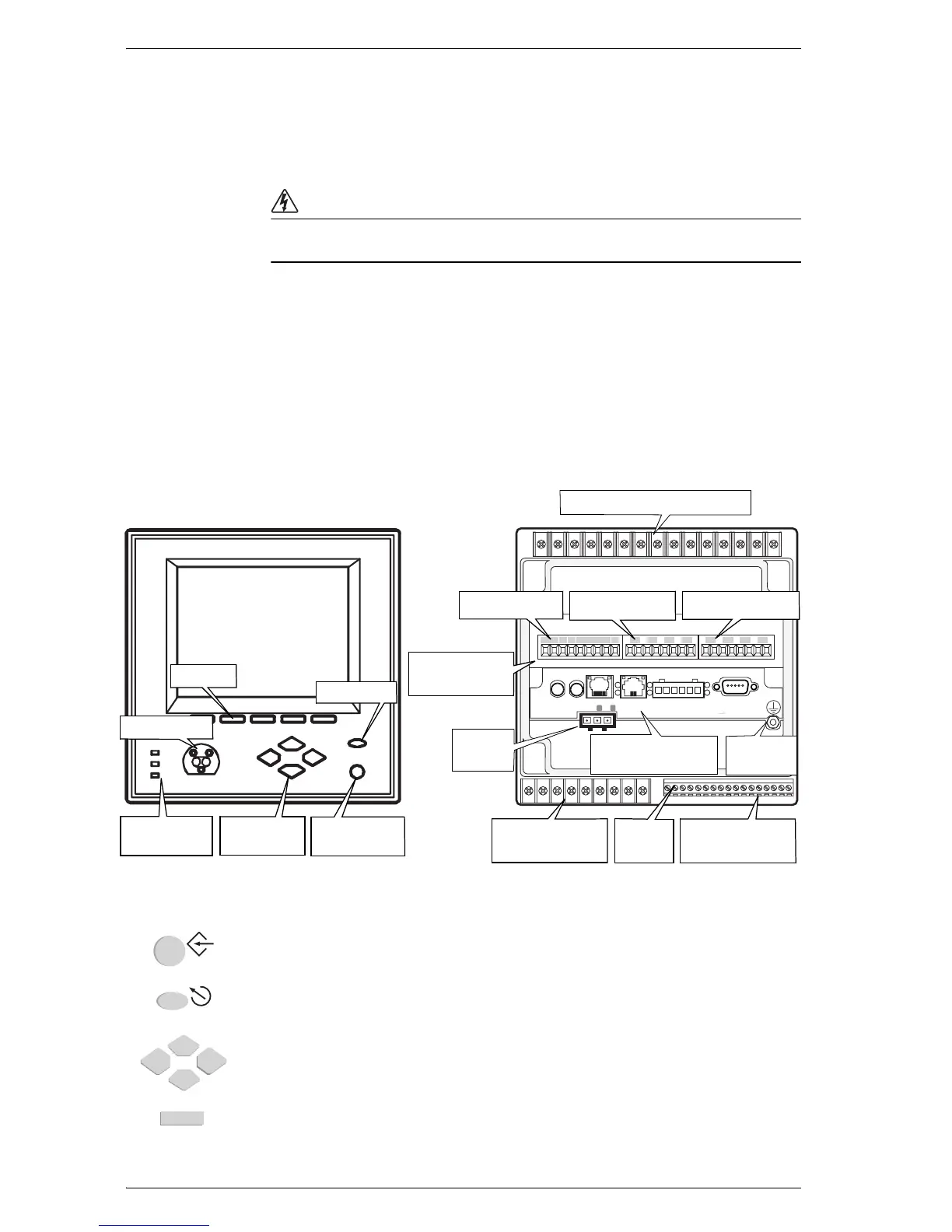

Meter Overview
Front Panel Button Functions
PROG/SELECT: Press the PROG/SELECT (program or select) button to enter Setup
mode. In Setup mode, press the
PROG/SELECT button to accept changes.
ESC: Press the ESC (Escape) button to return to a higher menu or discontinue a
configuration change.
NAVIGATION: Press the UP / DOWN arrow buttons to highlight menu items, or
increment / decrement numbers.
Press the
LEFT or RIGHT arrow buttons to move to an adjacent digit.
SOFTKEY: Press a SOFTKEY button to select the parameter that you want to
configure from the sub-menus.
G
N
_
L
+
AI4
AO4
AI3 A03
AI2 A02
AI1 AO1
DI1
DI2
DI3DI4DI5DI6
DI7
DI8
DICOM
TXDTXD
RXD
DCD
CCOM ARD
Navigation
Buttons
PROG/SELECT
Button
Softkeys
ESC Button
Communications
Card
Form C
Digital Outputs
Digital
Inputs
Form A
Digital Outputs
Digital Inputs Analog Inputs Analog Outputs
Voltage and Current Inputs
Power
Supply
Ground
Te rm i n al
Meter Front
Meter Back
Optical Port
I/O Expansion
Card
Operational
LEDs
PROG
ESC
